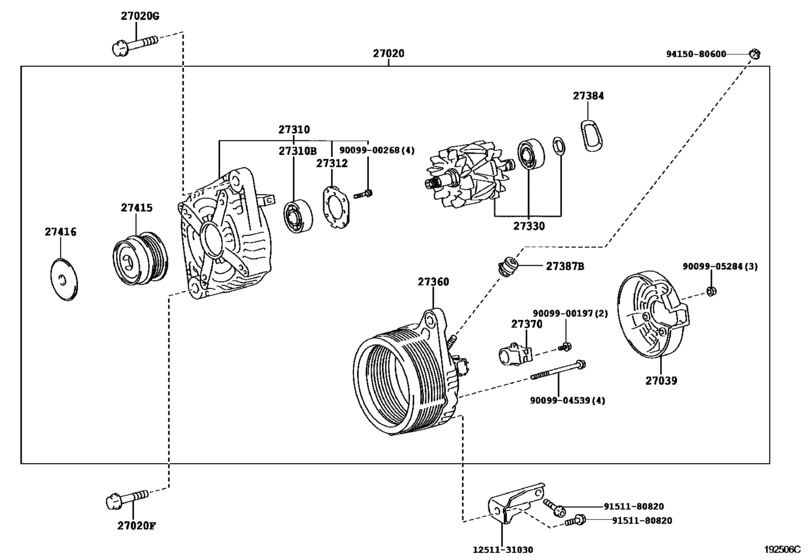

Alternator ([05.2006 - ] 12V 130A (0605- )2GRFE) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-31110
Alternator Assy
[05.2006 - 06.2007] 2GRFE..GSV40 12V 130A |
27060-31110 |
— | ||
| replacement | |||||
|
27020
|
27020
27060-31112 Alternator Assy[05.2006 - 06.2007] 2GRFE..GSV40 12V 130A |
27060-31112 |
US $1,016.46 |
||
|
27020
|
27020
27060-31111
Alternator Assy
[07.2007 - 07.2009] 2GRFE..GSV40 12V 130A |
27060-31111 |
— | ||
| replacement | |||||
|
27020
|
27020
27060-31112 Alternator Assy[07.2007 - 07.2009] 2GRFE..GSV40 12V 130A |
27060-31112 |
US $1,016.46 |
||
|
27020
|
27020
27060-31112 Alternator Assy[08.2009 -] 2GRFE..GSV40 12V 130A |
27060-31112 |
US $1,016.46 |
||
|
27020F
|
27020F
91552-81040 Bolt(For Alternator)[05.2006 - 08.2009] 2GRFE..GSV40 |
91552-81040 |
from US $1.12 |
||
|
27020G
|
27020G
91552-81070 Bolt(For Alternator)[05.2006 - 08.2009] 2GRFE..GSV40 |
91552-81070 |
from US $1.48 |
||
|
27039
|
27039
27039-27060
Cover, Alternator Rear End
[05.2006 - 02.2009] 2GRFE..GSV40 |
27039-27060 |
— | ||
|
27039
|
27039
27039-31390
Cover, Alternator Rear End
[02.2009 - 08.2009] 2GRFE..GSV40 |
27039-31390 |
— | ||
|
27310
|
27310
27310-31290
Frame Assy, Drive End, Alternator
[05.2006 - 08.2009] 2GRFE..GSV40 |
27310-31290 |
— | ||
|
27310B
|
27310B
90099-10142 Bearing(For Alternator Drive End Frame)[05.2006 - 11.2006] 2GRFE..GSV40 |
90099-10142 |
US $16.95 |
||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[12.2006 - 08.2009] 2GRFE..GSV40 |
90099-10223 |
from US $10.18 |
||
|
27312
|
27312
27312-72100
Plate, Bearing Retainer, Alternator
[05.2006 - 08.2009] 2GRFE..GSV40 |
27312-72100 |
— | ||
|
27330
|
27330
27330-33090 Rotor Assy, Alternator[05.2006 - 08.2009] 2GRFE..GSV40 |
27330-33090 |
US $193.94 |
||
|
27360
|
27360
27360-31310 Coil Assy, AlternatorALTERNATOR [05.2006 - 08.2009] 2GRFE..GSV40 |
27360-31310 |
US $491.07 |
||
|
27370
|
27370
27370-31220 Holder Assy, Alternator Brush[05.2006 - 08.2009] 2GRFE..GSV40 |
27370-31220 |
from US $19.11 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[05.2006 - 08.2009] 2GRFE..GSV40 |
27384-50030 |
from US $2.80 |
||
|
27387B
|
27387B
27387-20130 Insulator, Terminal[05.2006 - 08.2009] 2GRFE..GSV40 |
27387-20130 |
from US $4.02 |
||
|
27415
|
27415
27415-0W010
Pulley, Alternator W/clutch
[05.2006 - 07.2009] 2GRFE..GSV40 |
27415-0W010 |
— | ||
| replacements | |||||
|
27415
|
27415
27415-0W131 Pulley, Alternator W/clutch[05.2006 - 07.2009] 2GRFE..GSV40 |
27415-0W131 |
from US $58.82 |
||
|
27415
|
27415
27416-0W050 Cap, Alternator Pulley[05.2006 - 07.2009] 2GRFE..GSV40 |
27416-0W050 |
from US $3.82 |
||
|
27415
|
27415
27415-0W130
Pulley, Alternator W/clutch
[07.2009 - 08.2009] 2GRFE..GSV40 |
27415-0W130 |
— | ||
| replacement | |||||
|
27415
|
27415
27415-0W131 Pulley, Alternator W/clutch[07.2009 - 08.2009] 2GRFE..GSV40 |
27415-0W131 |
from US $58.82 |
||
|
27416
|
27416
27416-0W010 Cap, Alternator Pulley[05.2006 - 07.2009] 2GRFE..GSV40 |
27416-0W010 |
US $7.16 |
||
|
27416
|
27416
27416-0W050 Cap, Alternator Pulley[07.2009 - 08.2009] 2GRFE..GSV40 |
27416-0W050 |
from US $3.82 |
||
|
1251131030
|
1251131030
12511-31030 Bracket, Alternator, No.1 |
12511-31030 |
US $12.38 |
||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.39 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9151180820
|
9151180820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.78 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
