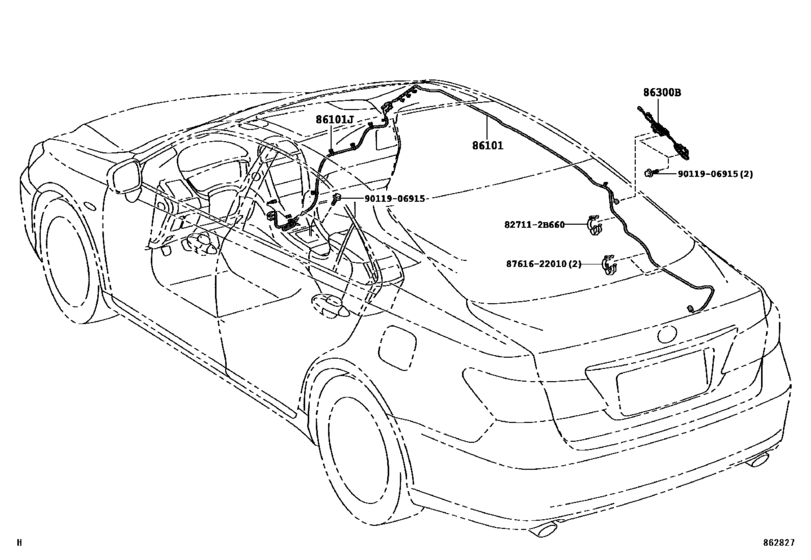

Antenna ([05.2006 - 08.2009] (0605-0908)) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86101
|
86101
86101-33490
Cord Sub-Assy, Antenna
[05.2006 - 08.2009] GSV40 |
86101-33490 |
— | ||
|
86101
|
86101
86101-33500
Cord Sub-Assy, Antenna
[05.2006 - 08.2009] GSV40 AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86101-33500 |
— | ||
|
86101J
|
86101J
86101-33510
Cord Sub-Assy, Antenna, No.2
[05.2006 - 08.2009] GSV40 |
86101-33510 |
— | ||
|
86101J
|
86101J
86101-33520
Cord Sub-Assy, Antenna, No.2
[05.2006 - 08.2009] GSV40 AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86101-33520 |
— | ||
|
86101J
|
86101J
86101-33830
Cord Sub-Assy, Antenna, No.2
[08.2009 -] ACV40,GSV40 |
86101-33830 |
— | ||
|
86300B
|
86300B
86300-33260
Antenna Assy, Amplifier, No.1
[07.2006 - 12.2007] GSV40..CHI |
86300-33260 |
— | ||
| replacement | |||||
|
86300B
|
86300B
86300-33261 Antenna Assy, Amplifier, No.1[07.2006 - 12.2007] GSV40..CHI |
86300-33261 |
US $339.85 |
||
|
86300B
|
86300B
86300-33261 Antenna Assy, Amplifier, No.1[01.2008 - 08.2009] GSV40..CHI |
86300-33261 |
US $339.85 |
||
|
827112B660
|
827112B660
82711-2B660 Clamp, Wiring Harness |
82711-2B660 |
US $3.40 |
||
|
8761622010
|
8761622010
87616-22010 Clamp, Cooling Unit Case |
87616-22010 |
US $6.99 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
