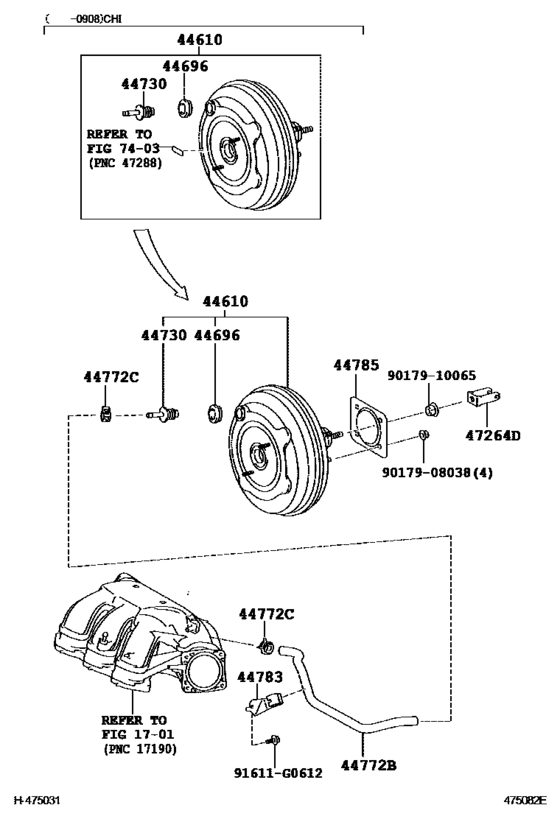

Brake Booster & Vacuum Tube ([05.2006 - ] (0605- )GSV40) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-33770
Booster Assy, Brake
[07.2006 - 10.2008] GSV40..CHI |
44610-33770 |
— | ||
| replacements | |||||
|
44610
|
44610
44610-33771
Booster Assy, Brake
[07.2006 - 10.2008] GSV40..CHI |
44610-33771 |
— | ||
|
44610
|
44610
47288-60010 Label, Brake Fluid NoticeBRAKE FLUID CAUTION [07.2006 - 10.2008] GSV40..CHI |
47288-60010 |
US $2.80 |
||
|
44610
|
44610
44610-33771
Booster Assy, Brake
[10.2008 - 08.2009] GSV40..CHI |
44610-33771 |
— | ||
|
44610
|
44610
44610-33791
Booster Assy, Brake
[08.2009 -] ACV40,GSV40 |
44610-33791 |
— | ||
|
44696
|
44696
90480-24015 Grommet, Check Valve[05.2006 - 08.2009] GSV40 |
90480-24015 |
from US $2.30 |
||
|
44730
|
44730
44730-28030 Valve Assy, Vacuum Check(For Brake)[05.2006 - 08.2009] GSV40 |
44730-28030 |
from US $22.85 |
||
|
44772B
|
44772B
44772-33170 Hose, Check Valve To Brake BoosterCHECK VALVE TO BRAKE BOOSTER [05.2006 - 08.2009] GSV40 |
44772-33170 |
US $39.90 |
||
|
44772C
|
44772C
90467-16014 Clip(For Vacuum Hose)[05.2006 - 08.2009] GSV40 |
90467-16014 |
US $4.12 |
||
|
44783
|
44783
44783-33010
Clamp, Vacuum Hose
[05.2006 - 08.2009] GSV40 |
44783-33010 |
— | ||
|
44785
|
44785
44785-16020 Gasket, Brake Booster[05.2006 - 08.2009] GSV40 |
44785-16020 |
from US $3.50 |
||
|
47264D
|
47264D
47264-30060 Clevis, Master Cylinder Push Rod[07.2006 - 08.2009] GSV40..CHI |
47264-30060 |
US $4.22 |
||
|
47264D
|
47264D
47264-63020 Clevis, Master Cylinder Push Rod[08.2009 -] ACV40,GSV40 |
47264-63020 |
from US $3.49 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.61 |
||
