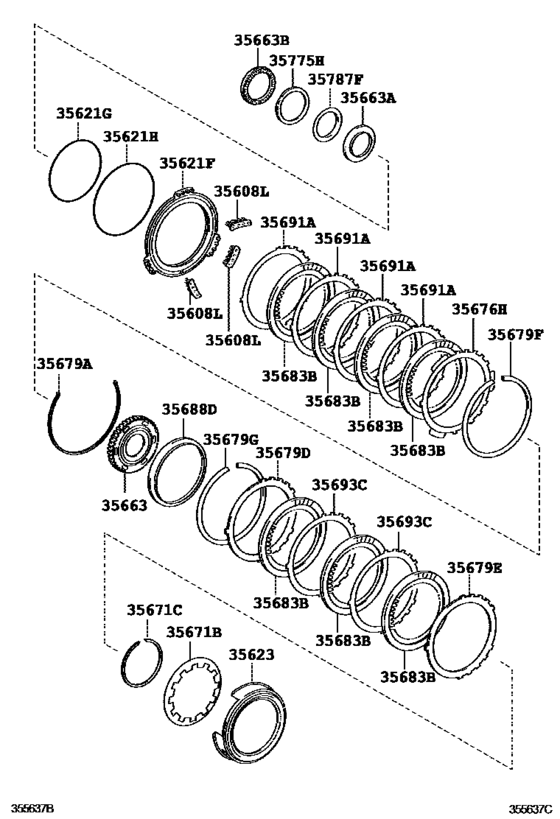

Brake No.3, 1St & Reverse Brake (Atm) ([05.2006 - ] U660E (0605- )GSV40) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35608L
|
35608L
35608-33030 Spring Sub-Assy, 2Nd Brake Piston Return[05.2006 - 08.2009] GSV40 |
35608-33030 |
US $3.79 |
||
|
35621F
|
35621F
35621-33010 Piston, Brake, No.1[05.2006 - 08.2009] GSV40 |
35621-33010 |
US $37.86 |
||
|
35621G
|
35621G
90301-99156 Ring, O (For Brake Piston Inner)[05.2006 - 08.2009] GSV40 |
90301-99156 |
US $5.73 |
||
|
35621G
|
35621G
90301-99190 Ring, O (For Brake Piston Inner)[05.2011 -] GSV40 |
90301-99190 |
US $3.94 |
||
|
35621H
|
35621H
90301-99093 Ring, O (For Front Oil Pump Body)[05.2006 - 08.2009] GSV40 |
90301-99093 |
from US $2.62 |
||
|
35621H
|
35621H
90301-99189 Ring, O (For Brake Piston Outer)[01.2012 -] GSV40 |
90301-99189 |
US $2.75 |
||
|
35623
|
35623
35623-33060
Piston, Brake, No.3
[05.2006 - 08.2009] GSV40 |
35623-33060 |
— | ||
| replacement | |||||
|
35623
|
35623
35623-48030 Piston, Brake, No.3[05.2006 - 08.2009] GSV40 |
35623-48030 |
from US $75.94 |
||
|
35663
|
35663
35663-33020 Hub, Brake No.3[05.2006 - 08.2009] GSV40 |
35663-33020 |
from US $25.37 |
||
|
35663A
|
35663A
90374-62001 Bearing, Thrust Needle Roller, No.1[05.2006 - 08.2009] GSV40 |
90374-62001 |
US $17.47 |
||
| replacement | |||||
|
35663A
|
35663A
90374-62009 Bearing, Thrust Needle Roller, No.1[05.2006 - 08.2009] GSV40 |
90374-62009 |
from US $12.83 |
||
|
35663B
|
35663B
90374-64002 Bearing, Thrust Needle Roller, No.2[05.2006 - 08.2009] GSV40 |
90374-64002 |
US $26.21 |
||
| replacement | |||||
|
35663B
|
35663B
90374-62008 Bearing, Thrust Needle Roller, No.2[05.2006 - 08.2009] GSV40 |
90374-62008 |
from US $13.13 |
||
|
35671B
|
35671B
35671-33010 Spring, Brake Piston Return[05.2006 - 08.2009] GSV40 |
35671-33010 |
US $21.69 |
||
|
35671C
|
35671C
90520-99103 Ring, Snap (For Brake Piston Return Spring)[05.2006 - 08.2009] GSV40 |
90520-99103 |
from US $2.30 |
||
|
35676H
|
35676H
35676-33020 Flange, Brake, No.1[05.2006 - 08.2009] GSV40 T=3.0,MARK 30 |
35676-33020 |
US $47.32 |
||
|
35676H
|
35676H
35676-33030 Flange, Brake, No.1[05.2006 - 08.2009] GSV40 T=3.1,MARK 31 |
35676-33030 |
US $48.05 |
||
|
35676H
|
35676H
35676-33040 Flange, Brake, No.1[05.2006 - 08.2009] GSV40 T=3.2,MARK 32 |
35676-33040 |
from US $47.82 |
||
|
35676H
|
35676H
35676-33050 Flange, Brake, No.1[05.2006 - 08.2009] GSV40 T=3.3,MARK 33 |
35676-33050 |
from US $49.65 |
||
|
35676H
|
35676H
35676-33060 Flange, Brake, No.1[05.2006 - 08.2009] GSV40 T=3.4,MARK 34 |
35676-33060 |
US $50.52 |
||
|
35676H
|
35676H
35676-33070 Flange, Brake, No.1[05.2006 - 08.2009] GSV40 T=3.5,MARK 35 |
35676-33070 |
US $51.25 |
||
|
35679A
|
35679A
90521-99136 Ring, Hole Snap(For Brake Flange)[05.2006 - 08.2009] GSV40 |
90521-99136 |
US $1.60 |
||
|
35679D
|
35679D
35679-33010 Frange, Brake, No.2[05.2006 - 11.2008] GSV40 |
35679-33010 |
US $57.37 |
||
| replacement | |||||
|
35679D
|
35679D
35679-73010 Frange, Brake, No.2[05.2006 - 11.2008] GSV40 |
35679-73010 |
from US $41.76 |
||
|
35679D
|
35679D
35679-73010 Frange, Brake, No.2[11.2008 - 08.2009] GSV40 |
35679-73010 |
from US $41.76 |
||
|
35679E
|
35679E
35679-33020 Frange, Brake, No.3[05.2006 - 11.2008] GSV40 T=3.8,MARK 38 |
35679-33020 |
US $65.81 |
||
| replacement | |||||
|
35679E
|
35679E
35679-73020 Frange, Brake, No.3[05.2006 - 11.2008] GSV40 T=3.8,MARK 38 |
35679-73020 |
US $41.35 |
||
|
35679E
|
35679E
35679-33030 Frange, Brake, No.3[05.2006 - 11.2008] GSV40 T=3.9,MARK 39 |
35679-33030 |
US $66.10 |
||
| replacement | |||||
|
35679E
|
35679E
35679-73030 Frange, Brake, No.3[05.2006 - 11.2008] GSV40 T=3.9,MARK 39 |
35679-73030 |
from US $48.22 |
||
|
35679E
|
35679E
35679-33040 Frange, Brake, No.3[05.2006 - 11.2008] GSV40 T=4.0,MARK 40 |
35679-33040 |
US $66.98 |
||
| replacement | |||||
|
35679E
|
35679E
35679-73040 Frange, Brake, No.3[05.2006 - 11.2008] GSV40 T=4.0,MARK 40 |
35679-73040 |
from US $42.22 |
||
|
35679E
|
35679E
35679-33050 Frange, Brake, No.3[05.2006 - 11.2008] GSV40 T=4.1,MARK 41 |
35679-33050 |
US $68.14 |
||
| replacement | |||||
|
35679E
|
35679E
35679-73050 Frange, Brake, No.3[05.2006 - 11.2008] GSV40 T=4.1,MARK 41 |
35679-73050 |
US $58.97 |
||
|
35679E
|
35679E
35679-33060 Frange, Brake, No.3[05.2006 - 11.2008] GSV40 T=4.2,MARK 42 |
35679-33060 |
US $69.01 |
||
| replacement | |||||
|
35679E
|
35679E
35679-73060 Frange, Brake, No.3[05.2006 - 11.2008] GSV40 T=4.2,MARK 42 |
35679-73060 |
US $59.81 |
||
|
35679E
|
35679E
35679-33070 Frange, Brake, No.3[05.2006 - 11.2008] GSV40 T=4.3,MARK 43 |
35679-33070 |
US $70.76 |
||
| replacement | |||||
|
35679E
|
35679E
35679-73070
Frange, Brake, No.3
[05.2006 - 11.2008] GSV40 T=4.3,MARK 43 |
35679-73070 |
— | ||
|
35679E
|
35679E
35679-73020 Frange, Brake, No.3[11.2008 - 08.2009] GSV40 T=3.8,MARK 38 |
35679-73020 |
US $41.35 |
||
|
35679E
|
35679E
35679-73030 Frange, Brake, No.3[11.2008 - 08.2009] GSV40 T=3.9,MARK 39 |
35679-73030 |
from US $48.22 |
||
|
35679E
|
35679E
35679-73040 Frange, Brake, No.3[11.2008 - 08.2009] GSV40 T=4.0,MARK 40 |
35679-73040 |
from US $42.22 |
||
|
35679E
|
35679E
35679-73050 Frange, Brake, No.3[11.2008 - 08.2009] GSV40 T=4.1,MARK 41 |
35679-73050 |
US $58.97 |
||
|
35679E
|
35679E
35679-73060 Frange, Brake, No.3[11.2008 - 08.2009] GSV40 T=4.2,MARK 42 |
35679-73060 |
US $59.81 |
||
|
35679E
|
35679E
35679-73070
Frange, Brake, No.3
[11.2008 - 08.2009] GSV40 T=4.3,MARK 43 |
35679-73070 |
— | ||
|
35679F
|
35679F
90520-99116 Ring, Snap(For Brake Flange)[05.2006 - 08.2009] GSV40 |
90520-99116 |
from US $5.53 |
||
|
35679G
|
35679G
90520-99112 Ring, Snap (For Rake Flange No.3)[05.2006 - 08.2009] GSV40 |
90520-99112 |
US $3.20 |
||
|
35683B
|
35683B
35683-33010 Disc, Brake, No.3[05.2006 - 11.2008] GSV40 |
35683-33010 |
US $13.10 |
||
| replacement | |||||
|
35683B
|
35683B
35683-33030 Disc, Brake, No.3[05.2006 - 11.2008] GSV40 |
35683-33030 |
from US $11.74 |
||
|
35683B
|
35683B
35683-33030 Disc, Brake, No.3[11.2008 - 08.2009] GSV40 |
35683-33030 |
from US $11.74 |
||
|
35688D
|
35688D
35688-33010
Stopper, Brake Snap Ring
[06.2006 - 08.2009] GSV40 |
35688-33010 |
— | ||
| replacement | |||||
|
35688D
|
35688D
35688-45010 Stopper, Brake Snap RingBRAKE SNAP RING [06.2006 - 08.2009] GSV40 |
35688-45010 |
US $12.58 |
||
|
35691A
|
35691A
35691-33010 Plate, Brake, No.1[05.2006 - 08.2009] GSV40 |
35691-33010 |
from US $15.59 |
||
|
35693C
|
35693C
35693-33010 Plate, Brake, No.3[05.2006 - 08.2009] GSV40 |
35693-33010 |
US $15.59 |
||
|
35775H
|
35775H
35775-33010 Race, Thrust Bearing, No.5[05.2006 - 08.2009] GSV40 |
35775-33010 |
US $10.48 |
||
| replacement | |||||
|
35775H
|
35775H
35775-48020 Race, Thrust Bearing, No.5[05.2006 - 08.2009] GSV40 |
35775-48020 |
from US $13.43 |
||
|
35787F
|
35787F
35787-33010
Race, Thrust Bearing, No.2
[05.2006 - 08.2009] GSV40 |
35787-33010 |
— | ||
| replacement | |||||
|
35787F
|
35787F
35787-48021 Race, Thrust Bearing, No.2[05.2006 - 08.2009] GSV40 |
35787-48021 |
from US $13.41 |
||
