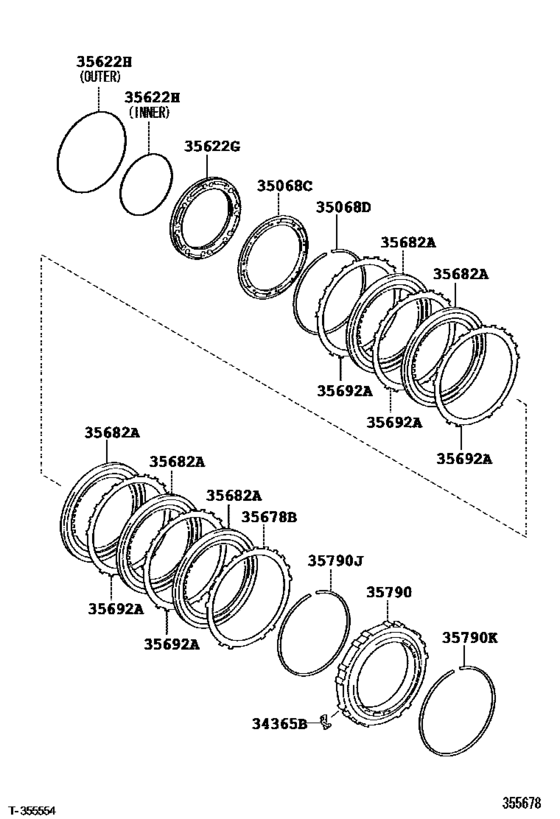

Center Support & Planetary Sun Gear (Atm) ([05.2006 - ] U660E (0605- )GSV40) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34365B
|
34365B
34365-33010 Retainer, Outer Race[05.2006 - 09.2008] GSV40 |
34365-33010 |
US $0.87 |
||
| replacement | |||||
|
34365B
|
34365B
34365-33021 Retainer, Outer Race[05.2006 - 09.2008] GSV40 |
34365-33021 |
from US $0.44 |
||
|
34365B
|
34365B
34365-33021 Retainer, Outer Race[09.2008 - 08.2009] GSV40 |
34365-33021 |
from US $0.44 |
||
|
35068C
|
35068C
35068-33030 Spring Sub-Assy, 1St & Reverse Brake Return[05.2006 - 08.2009] GSV40 |
35068-33030 |
US $28.25 |
||
|
35068D
|
35068D
90520-99109 Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)[05.2006 - 08.2009] GSV40 |
90520-99109 |
from US $3.20 |
||
|
35622G
|
35622G
35622-33010 Piston, Brake, No.2[05.2006 - 08.2009] GSV40 |
35622-33010 |
from US $36.25 |
||
|
35622H
|
35622H
90301-99156 Ring, O (For Brake Piston Inner)[05.2006 - 08.2009] GSV40 INNER |
90301-99156 |
US $5.73 |
||
|
35622H
|
35622H
90301-99157 Ring, O (For Brake Piston No.2)[05.2006 - 08.2009] GSV40 OUTER |
90301-99157 |
US $5.73 |
||
|
35622H
|
35622H
90301-99190 Ring, O (For Brake Piston Inner)[05.2011 -] GSV40 INNER |
90301-99190 |
US $3.94 |
||
|
35622H
|
35622H
90301-99191 Ring, O (For Brake Piston No.2)[05.2011 -] GSV40 OUTER |
90301-99191 |
US $2.62 |
||
|
35678B
|
35678B
35678-33010 Flange, Brake, No.2[05.2006 - 11.2008] GSV40 T=4.0,MARK 40 |
35678-33010 |
US $59.84 |
||
| replacement | |||||
|
35678B
|
35678B
35678-33060 Flange, Brake, No.2[05.2006 - 11.2008] GSV40 T=4.0,MARK 40 |
35678-33060 |
from US $23.15 |
||
|
35678B
|
35678B
35678-33020 Flange, Brake, No.2[05.2006 - 11.2008] GSV40 T=4.1,MARK 41 |
35678-33020 |
US $60.86 |
||
| replacement | |||||
|
35678B
|
35678B
35678-33070 Flange, Brake, No.2[05.2006 - 11.2008] GSV40 T=4.1,MARK 41 |
35678-33070 |
from US $23.15 |
||
|
35678B
|
35678B
35678-33030 Flange, Brake, No.2[05.2006 - 11.2008] GSV40 T=4.2,MARK 42 |
35678-33030 |
US $61.73 |
||
| replacement | |||||
|
35678B
|
35678B
35678-33080 Flange, Brake, No.2[05.2006 - 11.2008] GSV40 T=4.2,MARK 42 |
35678-33080 |
from US $23.15 |
||
|
35678B
|
35678B
35678-33040 Flange, Brake, No.2[05.2006 - 11.2008] GSV40 T=4.3,MARK 43 |
35678-33040 |
US $62.90 |
||
| replacement | |||||
|
35678B
|
35678B
35678-33090 Flange, Brake, No.2[05.2006 - 11.2008] GSV40 T=4.3,MARK 43 |
35678-33090 |
from US $22.68 |
||
|
35678B
|
35678B
35678-33050 Flange, Brake, No.2[05.2006 - 11.2008] GSV40 T=4.4,MARK 44 |
35678-33050 |
US $64.36 |
||
| replacement | |||||
|
35678B
|
35678B
35678-33100 Flange, Brake, No.2[05.2006 - 11.2008] GSV40 T=4.4,MARK 44 |
35678-33100 |
US $23.15 |
||
|
35678B
|
35678B
35678-33060 Flange, Brake, No.2[09.2010 -] GSV40 T=4.0,MARK 40 |
35678-33060 |
from US $23.15 |
||
|
35678B
|
35678B
35678-33070 Flange, Brake, No.2[09.2010 -] GSV40 T=4.1,MARK 41 |
35678-33070 |
from US $23.15 |
||
|
35678B
|
35678B
35678-33080 Flange, Brake, No.2[09.2010 -] GSV40 T=4.2,MARK 42 |
35678-33080 |
from US $23.15 |
||
|
35678B
|
35678B
35678-33090 Flange, Brake, No.2[09.2010 -] GSV40 T=4.3,MARK 43 |
35678-33090 |
from US $22.68 |
||
|
35678B
|
35678B
35678-33100 Flange, Brake, No.2[09.2010 -] GSV40 T=4.4,MARK 44 |
35678-33100 |
US $23.15 |
||
|
35678B
|
35678B
35678-73010 Flange, Brake, No.2[11.2008 - 08.2009] GSV40 T=4.0,MARK 40 |
35678-73010 |
US $49.80 |
||
| replacement | |||||
|
35678B
|
35678B
35678-33060 Flange, Brake, No.2[11.2008 - 08.2009] GSV40 T=4.0,MARK 40 |
35678-33060 |
from US $23.15 |
||
|
35678B
|
35678B
35678-73020 Flange, Brake, No.2[11.2008 - 08.2009] GSV40 T=4.1,MARK 41 |
35678-73020 |
US $50.67 |
||
| replacement | |||||
|
35678B
|
35678B
35678-33070 Flange, Brake, No.2[11.2008 - 08.2009] GSV40 T=4.1,MARK 41 |
35678-33070 |
from US $23.15 |
||
|
35678B
|
35678B
35678-73030 Flange, Brake, No.2[11.2008 - 08.2009] GSV40 T=4.2,MARK 42 |
35678-73030 |
US $51.40 |
||
| replacement | |||||
|
35678B
|
35678B
35678-33080 Flange, Brake, No.2[11.2008 - 08.2009] GSV40 T=4.2,MARK 42 |
35678-33080 |
from US $23.15 |
||
|
35678B
|
35678B
35678-73040 Flange, Brake, No.2[11.2008 - 08.2009] GSV40 T=4.3,MARK 43 |
35678-73040 |
US $52.42 |
||
| replacement | |||||
|
35678B
|
35678B
35678-33090 Flange, Brake, No.2[11.2008 - 08.2009] GSV40 T=4.3,MARK 43 |
35678-33090 |
from US $22.68 |
||
|
35678B
|
35678B
35678-73050 Flange, Brake, No.2[11.2008 - 08.2009] GSV40 T=4.4,MARK 44 |
35678-73050 |
US $53.58 |
||
| replacement | |||||
|
35678B
|
35678B
35678-33100 Flange, Brake, No.2[11.2008 - 08.2009] GSV40 T=4.4,MARK 44 |
35678-33100 |
US $23.15 |
||
|
35682A
|
35682A
35682-33010 Disc, Brake, No.2[05.2006 - 08.2009] GSV40 |
35682-33010 |
US $11.21 |
||
| replacement | |||||
|
35682A
|
35682A
35682-33020 Disc, Brake, No.2[05.2006 - 08.2009] GSV40 |
35682-33020 |
from US $11.82 |
||
|
35682A
|
35682A
35682-33020 Disc, Brake, No.2[02.2011 -] GSV40 |
35682-33020 |
from US $11.82 |
||
|
35692A
|
35692A
35692-33010 Plate, Brake, No.2[05.2006 - 08.2009] GSV40 |
35692-33010 |
US $12.23 |
||
| replacement | |||||
|
35692A
|
35692A
35692-33030 Plate, Brake, No.2[05.2006 - 08.2009] GSV40 |
35692-33030 |
from US $13.60 |
||
|
35692A
|
35692A
35692-33030 Plate, Brake, No.2[11.2010 -] GSV40 |
35692-33030 |
from US $13.60 |
||
|
35790
|
35790
35791-33020 Clutch Assy, 1 Way[05.2006 - 11.2008] GSV40 |
35791-33020 |
US $285.38 |
||
| replacements | |||||
|
35790
|
35790
35791-48010 Clutch Assy, 1 Way[05.2006 - 11.2008] GSV40 |
35791-48010 |
from US $209.66 |
||
|
35790
|
35790
34365-33021 Retainer, Outer Race[05.2006 - 11.2008] GSV40 |
34365-33021 |
from US $0.44 |
||
|
35790
|
35790
35791-73011 Clutch Assy, 1 Way[11.2008 - 08.2009] GSV40 |
35791-73011 |
US $237.33 |
||
| replacement | |||||
|
35790
|
35790
35791-48010 Clutch Assy, 1 Way[11.2008 - 08.2009] GSV40 |
35791-48010 |
from US $209.66 |
||
|
35790J
|
35790J
90520-99105 Ring, Snap No.1 (For 1 Way Clutch)[05.2006 - 08.2009] GSV40 |
90520-99105 |
from US $4.08 |
||
|
35790K
|
35790K
90520-99106 Ring, Snap No.2 (For 1 Way Clutch)[05.2006 - 08.2009] GSV40 |
90520-99106 |
from US $2.48 |
||
