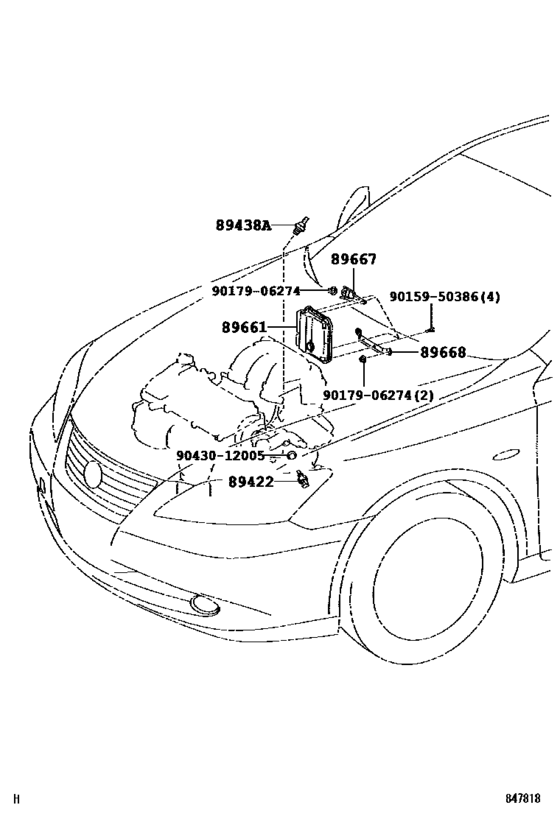

Electronic Fuel Injection System ([05.2006 - ] (0605- )GSV40) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[05.2006 - 08.2009] GSV40 |
89422-33030 |
from US $40.49 |
||
|
89438A
|
89438A
89438-33010 Switch, Power Steering Oil Pressure[05.2006 - 08.2009] GSV40 |
89438-33010 |
from US $26.89 |
||
|
89661
|
89661
89661-33C60 Computer, Engine ControlENGINE CONTROL [07.2006 - 01.2009] GSV40..CHI BEIJING SPEC |
89661-33C60 |
US $1,674.40 |
||
| replacement | |||||
|
89661
|
89661
89661-33C61
Computer, Engine Control
[07.2006 - 01.2009] GSV40..CHI BEIJING SPEC |
89661-33C61 |
— | ||
|
89661
|
89661
89661-33C70 Computer, Engine ControlENGINE CONTROL [05.2006 - 01.2009] GSV40..CHI |
89661-33C70 |
US $1,674.40 |
||
| replacement | |||||
|
89661
|
89661
89661-33C71 Computer, Engine Control[05.2006 - 01.2009] GSV40..CHI |
89661-33C71 |
US $1,674.40 |
||
|
89661
|
89661
89661-33G30
Computer, Engine Control
[08.2009 -] GSV40..CHI |
89661-33G30 |
— | ||
|
89667
|
89667
89667-33140
Bracket, Engine Control Computer
[05.2006 - 08.2009] GSV40 |
89667-33140 |
— | ||
|
89668
|
89668
89668-33190
Bracket, Engine Control Computer, No.2
[05.2006 - 08.2009] GSV40 |
89668-33190 |
— | ||
|
9015950386
|
9015950386
90159-50386 New Genuine Part |
90159-50386 |
US $1.08 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.67 |
||
