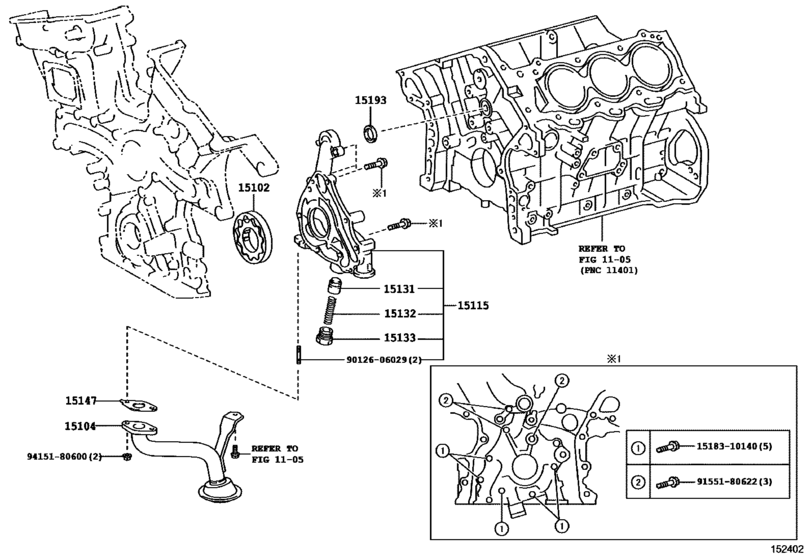

Engine Oil Pump ([05.2006 - ] (0605- )2GRFE) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15102
|
15102
15103-31050 Rotor Set, Oil Pump[05.2006 - 08.2009] 2GRFE..GSV40 |
15103-31050 |
from US $33.80 |
||
|
15104
|
15104
15104-31120 Strainer Sub-Assy, Oil[05.2006 - 08.2009] 2GRFE..GSV40 |
15104-31120 |
from US $33.92 |
||
|
15115
|
15115
15115-31040 Cover, Oil Pump[05.2006 - 08.2009] 2GRFE..GSV40 |
15115-31040 |
from US $18.34 |
||
|
15131
|
15131
15131-17010 Valve, Oil Pump Relief[05.2006 - 08.2009] 2GRFE..GSV40 |
15131-17010 |
from US $3.38 |
||
|
15132
|
15132
15132-46020 Spring, Oil Pump Relief Valve[05.2006 - 08.2009] 2GRFE..GSV40 |
15132-46020 |
from US $1.39 |
||
|
15133
|
15133
15133-28020 Plug, Oil Pump Relief Valve[05.2006 - 08.2009] 2GRFE..GSV40 |
15133-28020 |
from US $2.19 |
||
|
15147
|
15147
15147-31060 Gasket, Oil Strainer[05.2006 - 08.2009] 2GRFE..GSV40 |
15147-31060 |
from US $2.58 |
||
|
15193
|
15193
15193-31020 Gasket, Oil Pump[05.2006 - 08.2009] 2GRFE..GSV40 |
15193-31020 |
from US $2.05 |
||
|
1518310140
|
1518310140
15183-10140 Bolt, Union(For Oil Pump) |
15183-10140 |
US $2.62 |
||
|
9012606029
|
9012606029
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe) |
90126-06029 |
from US $0.65 |
||
|
9155180622
|
9155180622
91551-80622 BOLT FLANGE |
91551-80622 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
