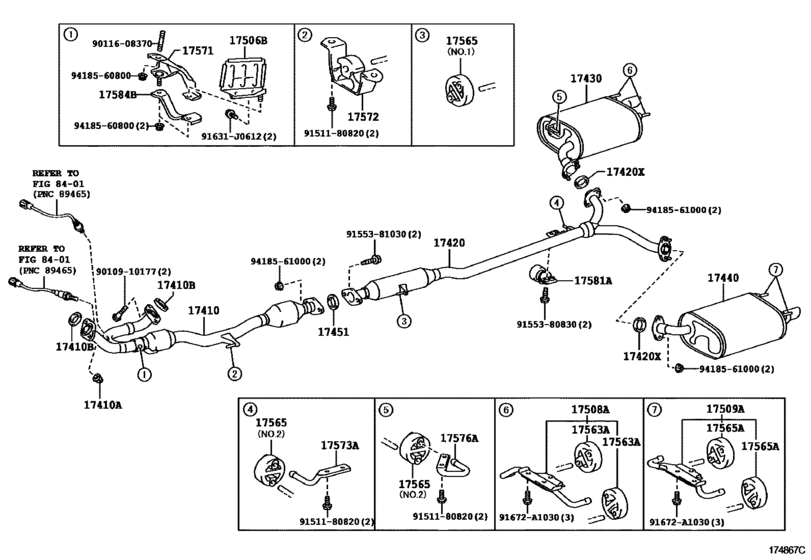

Exhaust Pipe ([05.2006 - ] (0605- )2GRFE) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-31540 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [05.2006 - 08.2009] 2GRFE..GSV40 |
17410-31540 |
US $1,432.70 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.2006 - 08.2009] 2GRFE..GSV40 |
90179-10070 |
from US $1.31 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[05.2006 - 08.2009] 2GRFE..GSV40 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06089 Gasket, Exhaust Pipe[05.2006 - 08.2009] 2GRFE..GSV40 |
90917-06089 |
from US $6.95 |
||
|
17420
|
17420
17420-31090
Pipe Assy, Exhaust, Center
[05.2006 - 05.2007] 2GRFE..GSV40 |
17420-31090 |
— | ||
| replacement | |||||
|
17420
|
17420
17420-31091
Pipe Assy, Exhaust, Center
[05.2006 - 05.2007] 2GRFE..GSV40 |
17420-31091 |
— | ||
|
17420
|
17420
17420-31320
Pipe Assy, Exhaust, Center
[10.2007 - 08.2009] 2GRFE..GSV40..CHI |
17420-31320 |
— | ||
| replacement | |||||
|
17420
|
17420
17420-31322
Pipe Assy, Exhaust, Center
[10.2007 - 08.2009] 2GRFE..GSV40..CHI |
17420-31322 |
— | ||
|
17420
|
17420
17420-31321
Pipe Assy, Exhaust, Center
[09.2009 - 02.2012] 2GRFE..GSV40..CHI |
17420-31321 |
— | ||
| replacement | |||||
|
17420
|
17420
17420-31322
Pipe Assy, Exhaust, Center
[09.2009 - 02.2012] 2GRFE..GSV40..CHI |
17420-31322 |
— | ||
|
17420
|
17420
17420-31322
Pipe Assy, Exhaust, Center
[03.2012 -] 2GRFE..GSV40..CHI |
17420-31322 |
— | ||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[05.2006 - 08.2009] 2GRFE..GSV40 |
90917-06045 |
from US $1.56 |
||
| replacement | |||||
|
17420X
|
17420X
90080-43028 Gasket, Exhaust Pipe[05.2006 - 08.2009] 2GRFE..GSV40 |
90080-43028 |
US $26.18 |
||
|
17430
|
17430
17430-31520
Pipe Assy, Exhaust, Tail
[05.2006 - 08.2006] 2GRFE..GSV40..CHI |
17430-31520 |
— | ||
|
17430
|
17430
17430-31620
Pipe Assy, Exhaust, Tail
[08.2006 - 07.2009] 2GRFE..GSV40..CHI |
17430-31620 |
— | ||
|
17430
|
17430
17430-31621
Pipe Assy, Exhaust, Tail
[07.2009 - 08.2009] 2GRFE..GSV40..CHI |
17430-31621 |
— | ||
|
17440
|
17440
17440-31020
Pipe, Exhaust Tail, Lh
[05.2006 - 08.2006] 2GRFE..GSV40..CHI |
17440-31020 |
— | ||
|
17440
|
17440
17440-31040
Pipe, Exhaust Tail, Lh
[08.2006 - 07.2009] 2GRFE..GSV40..CHI |
17440-31040 |
— | ||
|
17440
|
17440
17440-31041 Pipe, Exhaust Tail, LhEXHAUST TAIL, LH [07.2009 - 08.2009] 2GRFE..GSV40..CHI |
17440-31041 |
US $396.49 |
||
|
17451
|
17451
90917-06076 Gasket, Exhaust Pipe, Center[05.2006 - 08.2009] 2GRFE..GSV40 |
90917-06076 |
from US $6.27 |
||
|
17506B
|
17506B
17506-31090
Bracket Sub-Assy, Exhaust Pipe No.1 Support
[05.2006 - 08.2009] 2GRFE..GSV40 |
17506-31090 |
— | ||
|
17508A
|
17508A
17508-31050 Bracket Sub-Assy, Exhaust Pipe No.3 Support[05.2006 - 08.2009] 2GRFE..GSV40 |
17508-31050 |
US $49.36 |
||
|
17509A
|
17509A
17509-31020 Bracket Sub-Assy, Exhaust Pipe No.4 SupportEXHAUST PIPE NO.4 SUPPORT [05.2006 - 08.2009] 2GRFE..GSV40 |
17509-31020 |
US $49.36 |
||
|
17563A
|
17563A
17565-31040 Support, Exhaust Pipe, No.1[05.2006 - 08.2009] 2GRFE..GSV40 |
17565-31040 |
from US $7.51 |
||
|
17565
|
17565
17565-22030 Support, Exhaust Pipe, No.1[05.2006 - 08.2009] 2GRFE..GSV40 NO.1 |
17565-22030 |
from US $7.58 |
||
|
17565
|
17565
17565-22040 Support, Exhaust Pipe, No.1[05.2006 - 08.2009] 2GRFE..GSV40 NO.2 |
17565-22040 |
from US $9.35 |
||
|
17565A
|
17565A
17565-31040 Support, Exhaust Pipe, No.1[05.2006 - 08.2009] 2GRFE..GSV40 |
17565-31040 |
from US $7.51 |
||
|
17571
|
17571
17571-31180
Bracket, Exhaust Pipe Support, No.1
[05.2006 - 08.2009] 2GRFE..GSV40 |
17571-31180 |
— | ||
|
17572
|
17572
17572-28020 Bracket, Exhaust Pipe No.1 Support[05.2006 - 08.2009] 2GRFE..GSV40 |
17572-28020 |
from US $10.96 |
||
|
17573A
|
17573A
17573-31020 Bracket, Exhaust Pipe Support, No.2[05.2006 - 08.2009] 2GRFE..GSV40 |
17573-31020 |
US $7.86 |
||
|
17576A
|
17576A
17576-31070 Bracket, Exhaust Pipe Support, No.3[05.2006 - 08.2009] 2GRFE..GSV40 |
17576-31070 |
US $8.88 |
||
|
17581A
|
17581A
17581-70080 Damper, Exhaust Pipe[05.2006 - 08.2009] 2GRFE..GSV40 |
17581-70080 |
US $55.61 |
||
|
17584B
|
17584B
17584-31030
Bracket, Exhaust Pipe No.1 Support
[05.2006 - 08.2009] 2GRFE..GSV40 |
17584-31030 |
— | ||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
91672A1030
|
91672A1030
91672-A1030 BOLT FLANGE |
91672-A1030 |
from US $1.14 |
||
|
9010910177
|
9010910177
90109-10177 BOLT |
90109-10177 |
US $3.23 |
||
|
9011608370
|
9011608370
90116-08370 BOLT STUD |
90116-08370 |
US $0.87 |
||
|
9151180820
|
9151180820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.78 |
||
|
9155380830
|
9155380830
91553-80830 Bolt(For Transaxle & Engine Setting) |
91553-80830 |
US $1.43 |
||
|
9155381030
|
9155381030
91553-81030 BOLT FLANGE |
91553-81030 |
from US $1.12 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $0.93 |
||
