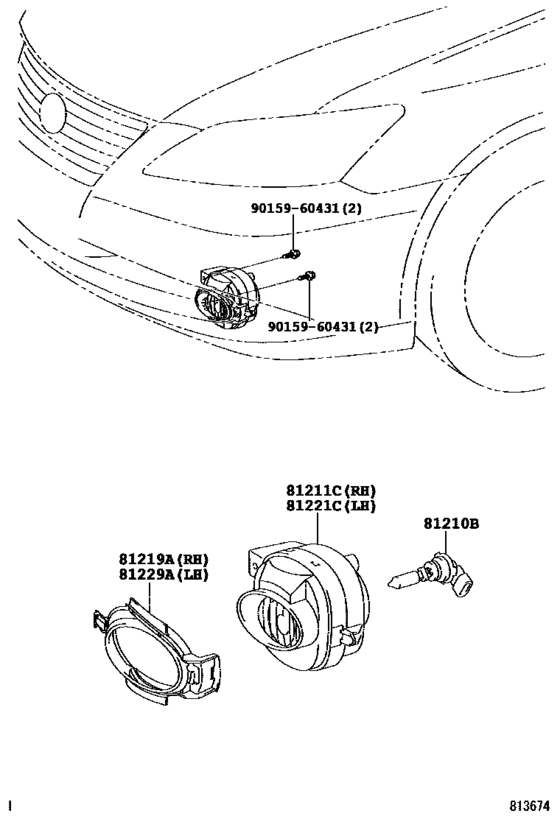

Fog Lamp ([05.2006 - 08.2009] (0605-0908)) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81210B
|
81210B
90981-13047 Bulb (HB4)[05.2006 - 10.2006] GSV40..CHI 12V 51W,HALOGEN |
90981-13047 |
from US $14.90 |
||
|
81211C
|
81211C
81211-33210
Lamp Unit, Fog Lamp, Rh
[07.2006 - 10.2006] GSV40..CHI |
81211-33210 |
— | ||
| replacement | |||||
|
81211C
|
81211C
81211-33211
Lamp Unit, Fog Lamp, Rh
[07.2006 - 10.2006] GSV40..CHI |
81211-33211 |
— | ||
|
81211C
|
81211C
81211-33211
Lamp Unit, Fog Lamp, Rh
[11.2006 - 08.2009] GSV40..CHI |
81211-33211 |
— | ||
|
81211C
|
81211C
81211-33230 Lamp Unit, Fog Lamp, RhFOG LAMP, RH [08.2009 - 06.2012] ACV40,GSV40..CHI |
81211-33230 |
US $346.92 |
||
|
81211C
|
81211C
81211-33240
Lamp Unit, Fog Lamp, Rh
[08.2010 - 06.2012] GSV40..CHI RUSSIA SPEC |
81211-33240 |
— | ||
|
81219A
|
81219A
52125-33070 Bracket, Fog Lamp, RhFOG LAMP, RH [05.2006 - 08.2009] GSV40 |
52125-33070 |
from US $16.02 |
||
|
81221C
|
81221C
81221-33210
Lamp Unit, Fog Lamp, Lh
[07.2006 - 10.2006] GSV40..CHI |
81221-33210 |
— | ||
| replacement | |||||
|
81221C
|
81221C
81221-33211
Lamp Unit, Fog Lamp, Lh
[07.2006 - 10.2006] GSV40..CHI |
81221-33211 |
— | ||
|
81221C
|
81221C
81221-33211
Lamp Unit, Fog Lamp, Lh
[11.2006 - 08.2009] GSV40..CHI |
81221-33211 |
— | ||
|
81221C
|
81221C
81221-33230 Lamp Unit, Fog Lamp, LhFOG LAMP, LH [08.2009 - 06.2012] ACV40,GSV40..CHI |
81221-33230 |
US $331.46 |
||
|
81221C
|
81221C
81221-33240
Lamp Unit, Fog Lamp, Lh
[08.2010 - 06.2012] GSV40..CHI RUSSIA SPEC |
81221-33240 |
— | ||
|
81229A
|
81229A
52126-33070 Bracket, Fog Lamp, LhFOG LAMP, LH [05.2006 - 08.2009] GSV40 |
52126-33070 |
US $23.37 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.72 |
||
