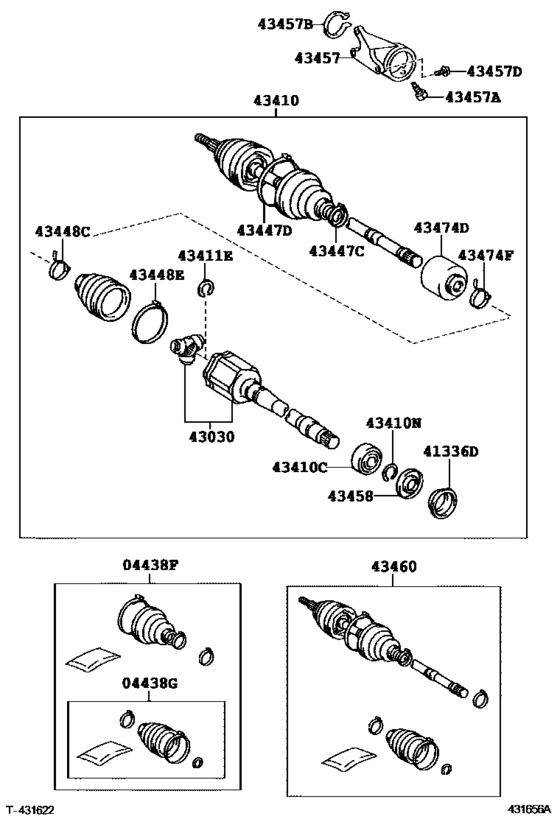

Front Drive Shaft ([05.2006 - ] RH (0605- )GSV40) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04427-06300
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[05.2006 - 11.2008] GSV40 |
04427-06300 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04428-0E060 Boot Kit, Front Drive Shaft, In & Outboard, LhFRONT DRIVE SHAFT, IN & OUTBOARD, LH [05.2006 - 11.2008] GSV40 |
04428-0E060 |
US $136.81 |
||
|
04438F
|
04438F
04427-0E030
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[11.2008 - 08.2009] GSV40 |
04427-0E030 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04428-0E060 Boot Kit, Front Drive Shaft, In & Outboard, LhFRONT DRIVE SHAFT, IN & OUTBOARD, LH [11.2008 - 08.2009] GSV40 |
04428-0E060 |
US $136.81 |
||
|
04438F
|
04438F
04428-0E060 Boot Kit, Front Drive Shaft, In & Outboard, LhFRONT DRIVE SHAFT, IN & OUTBOARD, LH [08.2009 - 04.2010] GSV40 |
04428-0E060 |
US $136.81 |
||
|
04438F
|
04438F
04428-0W070 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2010 -] GSV40 |
04428-0W070 |
US $135.91 |
||
|
04438G
|
04438G
04437-06110
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[05.2006 - 08.2008] GSV40 |
04437-06110 |
— | ||
| replacement | |||||
|
04438G
|
04438G
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, RhFRONT DRIVE SHAFT INBOARD JOINT, RH [05.2006 - 08.2008] GSV40 |
04438-08130 |
US $90.20 |
||
|
04438G
|
04438G
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, RhFRONT DRIVE SHAFT INBOARD JOINT, RH [08.2008 - 08.2009] GSV40 |
04438-08130 |
US $90.20 |
||
|
41336D
|
41336D
41336-06020 Cover, Front Drive Shaft Dust, Rh[05.2006 - 08.2009] GSV40 |
41336-06020 |
from US $11.53 |
||
|
43030
|
43030
43030-0W040
Joint Assy, Front Drive Inboard, Rh
[05.2006 - 08.2009] GSV40 |
43030-0W040 |
— | ||
|
43410
|
43410
43410-0W180
Shaft Assy, Front Drive, Rh
[05.2006 - 08.2009] GSV40 |
43410-0W180 |
— | ||
| replacement | |||||
|
43410
|
43410
43410-06A50 Shaft Assy, Front Drive, Rh[05.2006 - 08.2009] GSV40 |
43410-06A50 |
US $725.09 |
||
|
43410C
|
43410C
90080-36133 Bearing (For Front Drive Shaft)[05.2006 - 08.2009] GSV40 |
90080-36133 |
from US $25.78 |
||
|
43410N
|
43410N
90080-52013
Ring, Hole Snap (For Front Drive Shaft Rh)
[05.2006 - 08.2009] GSV40 |
90080-52013 |
— | ||
|
43411E
|
43411E
43425-08040 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[05.2006 - 08.2009] GSV40 |
43425-08040 |
US $0.44 |
||
|
43447C
|
43447C
42345-04030 Clamp (For Front Axle Outboard Joint Boot Rh)[05.2006 - 08.2009] GSV40 |
42345-04030 |
US $2.48 |
||
|
43447D
|
43447D
42345-06250 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) [05.2006 - 08.2009] GSV40 |
42345-06250 |
US $8.01 |
||
|
43448C
|
43448C
42345-08070 Clamp (For Front Axle Inboard Joint Boot Rh)[05.2006 - 08.2009] GSV40 |
42345-08070 |
US $3.49 |
||
|
43448E
|
43448E
42345-06240 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) [05.2006 - 08.2009] GSV40 |
42345-06240 |
US $4.22 |
||
|
43457
|
43457
43457-33030 Bracket, Drive Shaft BearingDRIVE SHAFT BEARING [05.2006 - 08.2009] GSV40 |
43457-33030 |
from US $52.27 |
||
|
43457A
|
43457A
90119-10461 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[05.2006 - 08.2009] GSV40 *10-1.25PX19.8-8.3 |
90119-10461 |
from US $1.10 |
||
|
43457B
|
43457B
90521-78002 Ring, Hole Snap(For Rear Drive Shaft)[05.2006 - 08.2009] GSV40 |
90521-78002 |
from US $2.28 |
||
|
43457D
|
43457D
90105-10381 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[05.2006 - 08.2009] GSV40 |
90105-10381 |
US $1.79 |
||
|
43458
|
43458
43458-06020 Cover, Front Drive Shaft Dust[05.2006 - 08.2009] GSV40 |
43458-06020 |
US $11.65 |
||
|
43460
|
43460
43460-09M20
Shaft Assy, Front Drive Outboard Joint, Rh
[05.2006 - 08.2009] GSV40 |
43460-09M20 |
— | ||
|
43474D
|
43474D
43474-0W030
Damper, Front Drive Shaft, Rh
[05.2006 - 08.2009] GSV40 |
43474-0W030 |
— | ||
|
43474F
|
43474F
42345-06100 Clamp (For Front Drive Shaft Damper Rh)[05.2006 - 08.2009] GSV40 |
42345-06100 |
US $1.60 |
||
