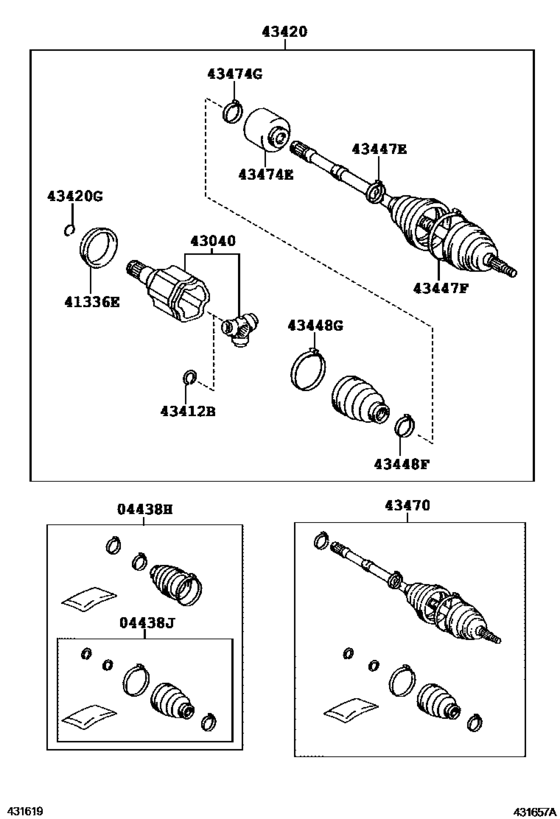

Front Drive Shaft ([05.2006 - ] LH (0605- )GSV40) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04428-08080 Boot Kit, Front Drive Shaft, In & Outboard, LhFRONT DRIVE SHAFT, IN & OUTBOARD, LH [05.2006 - 11.2008] GSV40 |
04428-08080 |
US $120.85 |
||
| replacement | |||||
|
04438H
|
04438H
04428-0W030 Boot Kit, Front Drive Shaft, In & Outboard, LhFRONT DRIVE SHAFT, IN & OUTBOARD, LH [05.2006 - 11.2008] GSV40 |
04428-0W030 |
US $135.12 |
||
|
04438H
|
04438H
04428-0W030 Boot Kit, Front Drive Shaft, In & Outboard, LhFRONT DRIVE SHAFT, IN & OUTBOARD, LH [11.2008 - 08.2009] GSV40 |
04428-0W030 |
US $135.12 |
||
|
04438H
|
04438H
04428-0W070 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2010 -] GSV40 |
04428-0W070 |
US $135.91 |
||
|
04438J
|
04438J
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, RhFRONT DRIVE SHAFT INBOARD JOINT, RH [05.2006 - 08.2009] GSV40 |
04438-08130 |
US $90.20 |
||
|
41336E
|
41336E
41336-06060
Cover, Front Drive Shaft Dust, Lh
[05.2006 - 08.2009] GSV40 |
41336-06060 |
— | ||
|
43040
|
43040
43040-0W030
Joint Assy, Front Drive Inboard, Lh
[05.2006 - 08.2009] GSV40 |
43040-0W030 |
— | ||
|
43412B
|
43412B
43425-08040 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[05.2006 - 08.2009] GSV40 |
43425-08040 |
US $0.44 |
||
|
43420
|
43420
43420-0W210
Shaft Assy, Front Drive, Lh
[05.2006 - 08.2009] GSV40 |
43420-0W210 |
— | ||
| replacement | |||||
|
43420
|
43420
43420-06B00 Shaft Assy, Front Drive, Lh[05.2006 - 08.2009] GSV40 |
43420-06B00 |
US $815.94 |
||
|
43420G
|
43420G
90080-52017
Ring, Hole Snap (For Front Drive Shaft Lh)
[05.2006 - 08.2009] GSV40 |
90080-52017 |
— | ||
|
43447E
|
43447E
42345-04030 Clamp (For Front Axle Outboard Joint Boot Rh)[05.2006 - 08.2009] GSV40 |
42345-04030 |
US $2.48 |
||
|
43447F
|
43447F
42345-06250 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) [05.2006 - 08.2009] GSV40 |
42345-06250 |
US $8.01 |
||
|
43448F
|
43448F
42345-08070 Clamp (For Front Axle Inboard Joint Boot Rh)[05.2006 - 08.2009] GSV40 |
42345-08070 |
US $3.49 |
||
|
43448G
|
43448G
42345-06240 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) [05.2006 - 08.2009] GSV40 |
42345-06240 |
US $4.22 |
||
|
43470
|
43470
43470-09M60
Shaft Assy, Front Drive Outboard Joint, Lh
[05.2006 - 08.2009] GSV40 |
43470-09M60 |
— | ||
|
43474E
|
43474E
43474-06090
Damper, Front Drive Shaft, Lh
[05.2006 - 08.2009] GSV40 |
43474-06090 |
— | ||
|
43474G
|
43474G
42345-06100 Clamp (For Front Drive Shaft Damper Rh)[05.2006 - 08.2009] GSV40 |
42345-06100 |
US $1.60 |
||
