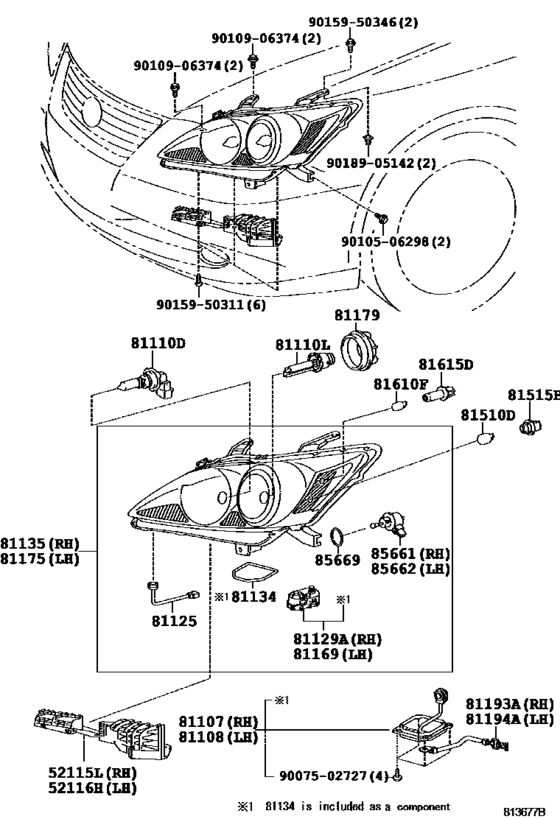

Headlamp ([05.2006 - 08.2009] (0605-0908)) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52115L
|
52115L
52115-33090 Support, Front Bumper Side, RhFRONT BUMPER SIDE, RH [05.2006 - 12.2006] GSV40..CHI |
52115-33090 |
from US $103.38 |
||
|
52115L
|
52115L
52115-33100 Support, Front Bumper Side, RhFRONT BUMPER SIDE, RH [08.2009 -] ACV40,GSV40 |
52115-33100 |
US $96.79 |
||
|
52116H
|
52116H
52116-33080 Support, Front Bumper Side, LhFRONT BUMPER SIDE, LH [05.2006 - 12.2006] GSV40..CHI |
52116-33080 |
US $127.60 |
||
|
52116H
|
52116H
52116-33090 Support, Front Bumper Side, LhFRONT BUMPER SIDE, LH [08.2009 -] ACV40,GSV40 |
52116-33090 |
US $92.74 |
||
|
81107
|
81107
81107-22A10
Computer Sub-Assy, Headlamp Light Control
[05.2006 - 08.2009] GSV40 |
81107-22A10 |
— | ||
| replacement | |||||
|
81107
|
81107
81107-33761 Computer Sub-Assy, Headlamp Light Control[05.2006 - 08.2009] GSV40 |
81107-33761 |
from US $317.40 |
||
|
81107
|
81107
81107-33761 Computer Sub-Assy, Headlamp Light Control[04.2010 -] ACV40,GSV40 |
81107-33761 |
from US $317.40 |
||
|
81108
|
81108
81107-22A10
Computer Sub-Assy, Headlamp Light Control
[05.2006 - 08.2009] GSV40 |
81107-22A10 |
— | ||
| replacement | |||||
|
81108
|
81108
81107-33761 Computer Sub-Assy, Headlamp Light Control[05.2006 - 08.2009] GSV40 |
81107-33761 |
from US $317.40 |
||
|
81108
|
81108
81107-33761 Computer Sub-Assy, Headlamp Light Control[04.2010 -] ACV40,GSV40 |
81107-33761 |
from US $317.40 |
||
|
81110D
|
81110D
90080-81041
Bulb(For Headlamp, No.1)
[07.2006 - 01.2007] GSV40..CHI 12V 65W |
90080-81041 |
— | ||
| replacement | |||||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[07.2006 - 01.2007] GSV40..CHI 12V 65W |
90981-13046 |
from US $15.88 |
||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[01.2007 - 08.2009] GSV40..CHI 12V65W(SAE),60W(ECE) |
90981-13046 |
from US $15.88 |
||
|
81110L
|
81110L
90981-20013 Bulb, Discharge Headlamp[05.2006 - 11.2007] GSV40 45V 35W |
90981-20013 |
US $189.28 |
||
| replacement | |||||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[05.2006 - 11.2007] GSV40 45V 35W |
90981-20024 |
from US $164.74 |
||
|
81110L
|
81110L
90981-20021 Bulb, Discharge Headlamp[12.2007 - 02.2009] GSV40 45V 35W |
90981-20021 |
US $189.28 |
||
| replacement | |||||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[12.2007 - 02.2009] GSV40 45V 35W |
90981-20024 |
from US $164.74 |
||
|
81110L
|
81110L
90981-20024 Bulb, Discharge Headlamp[02.2009 - 08.2009] GSV40 42V 35W |
90981-20024 |
from US $164.74 |
||
|
81125
|
81125
81125-33680
Cord, Headlamp
[05.2006 - 08.2009] GSV40 |
81125-33680 |
— | ||
|
81129A
|
81129A
81129-33680 Reflector, Headlamp, Rh[05.2006 - 08.2009] GSV40 |
81129-33680 |
US $224.22 |
||
| replacement | |||||
|
81129A
|
81129A
81129-50381 Reflector, Headlamp, RhHEADLAMP SWIVEL, RH [05.2006 - 08.2009] GSV40 |
81129-50381 |
US $168.90 |
||
|
81129A
|
81129A
81129-50381 Reflector, Headlamp, RhHEADLAMP SWIVEL, RH [08.2009 -] ACV40,GSV40 |
81129-50381 |
US $168.90 |
||
|
81134
|
81134
90075-68007 Gasket, Headlamp[07.2006 - 08.2009] GSV40..CHI |
90075-68007 |
from US $7.13 |
||
|
81135
|
81135
81145-33690
Unit Assy, Headlamp, Rh
[07.2006 - 12.2006] GSV40..CHI |
81145-33690 |
— | ||
| replacement | |||||
|
81135
|
81135
81145-33691
Unit Assy, Headlamp, Rh
[07.2006 - 12.2006] GSV40..CHI |
81145-33691 |
— | ||
|
81135
|
81135
81145-33691
Unit Assy, Headlamp, Rh
[01.2007 - 08.2009] GSV40..CHI |
81145-33691 |
— | ||
|
81135
|
81135
81145-33760
Unit Assy, Headlamp, Rh
[08.2009 - 09.2011] ACV40,GSV40..CHI |
81145-33760 |
— | ||
|
81135
|
81135
81145-33761
Unit Assy, Headlamp, Rh
[09.2011 -] ACV40,GSV40..CHI |
81145-33761 |
— | ||
|
81169
|
81169
81169-33680 Reflector, Headlamp, Lh[05.2006 - 08.2009] GSV40 |
81169-33680 |
US $224.22 |
||
| replacement | |||||
|
81169
|
81169
81169-50381 Reflector, Headlamp, LhHEADLAMP SWIVEL, LH [05.2006 - 08.2009] GSV40 |
81169-50381 |
US $168.90 |
||
|
81169
|
81169
81169-50381 Reflector, Headlamp, LhHEADLAMP SWIVEL, LH [08.2009 -] ACV40,GSV40 |
81169-50381 |
US $168.90 |
||
|
81175
|
81175
81185-33690
Unit Assy, Headlamp, Lh
[07.2006 - 12.2006] GSV40..CHI |
81185-33690 |
— | ||
| replacement | |||||
|
81175
|
81175
81185-33691
Unit Assy, Headlamp, Lh
[07.2006 - 12.2006] GSV40..CHI |
81185-33691 |
— | ||
|
81175
|
81175
81185-33691
Unit Assy, Headlamp, Lh
[01.2007 - 08.2009] GSV40..CHI |
81185-33691 |
— | ||
|
81175
|
81175
81185-33760
Unit Assy, Headlamp, Lh
[08.2009 - 09.2011] ACV40,GSV40..CHI |
81185-33760 |
— | ||
|
81175
|
81175
81185-33761
Unit Assy, Headlamp, Lh
[09.2011 -] ACV40,GSV40..CHI |
81185-33761 |
— | ||
|
81179
|
81179
81179-22820 Cover, Headlamp Socket[05.2006 - 08.2009] GSV40 |
81179-22820 |
from US $12.06 |
||
|
81510D
|
81510D
90981-15021 Bulb (For Front Turn Signal Lamp)[05.2006 - 12.2006] GSV40..CHI 12V 21W,AMBER |
90981-15021 |
from US $3.14 |
||
|
81515B
|
81515B
90075-60028 Socket, Headlamp, Bulb[05.2006 - 08.2009] GSV40 |
90075-60028 |
from US $6.19 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[05.2006 - 12.2006] GSV40..CHI 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[05.2006 - 12.2006] GSV40..CHI 12V 5W |
90080-81053 |
US $0.99 |
||
|
81615D
|
81615D
90075-60077 Clearance Lamp Socket[05.2006 - 08.2009] GSV40 |
90075-60077 |
from US $6 |
||
|
85661
|
85661
85661-28010 Motor, Headlamp Leveling, Rh[05.2006 - 08.2009] GSV40 |
85661-28010 |
US $187.82 |
||
| replacement | |||||
|
85661
|
85661
85661-28011 Motor, Headlamp Leveling, RhHEADLAMP LEVELING, RH [05.2006 - 08.2009] GSV40 |
85661-28011 |
from US $141.23 |
||
|
85661
|
85661
85661-28011 Motor, Headlamp Leveling, RhHEADLAMP LEVELING, RH [08.2009 -] ACV40,GSV40 |
85661-28011 |
from US $141.23 |
||
|
85662
|
85662
85691-28010 Motor, Headlamp Leveling, Lh[05.2006 - 08.2009] GSV40 |
85691-28010 |
US $187.82 |
||
| replacement | |||||
|
85662
|
85662
85691-28011 Motor, Headlamp Leveling, LhHEADLAMP LEVELING, LH [05.2006 - 08.2009] GSV40 |
85691-28011 |
from US $164.24 |
||
|
85662
|
85662
85691-28011 Motor, Headlamp Leveling, LhHEADLAMP LEVELING, LH [08.2009 -] ACV40,GSV40 |
85691-28011 |
from US $164.24 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[05.2006 - 08.2009] GSV40 |
90075-99120 |
from US $2.32 |
||
|
9007502727
|
9007502727
90075-02727 Screw, Headlamp |
90075-02727 |
from US $0.65 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.59 |
||
|
9010906374
|
9010906374
90109-06374 BOLT |
90109-06374 |
US $1.08 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.70 |
||
|
9015950346
|
9015950346
90159-50346 SCREW |
90159-50346 |
from US $0.67 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.74 |
||
