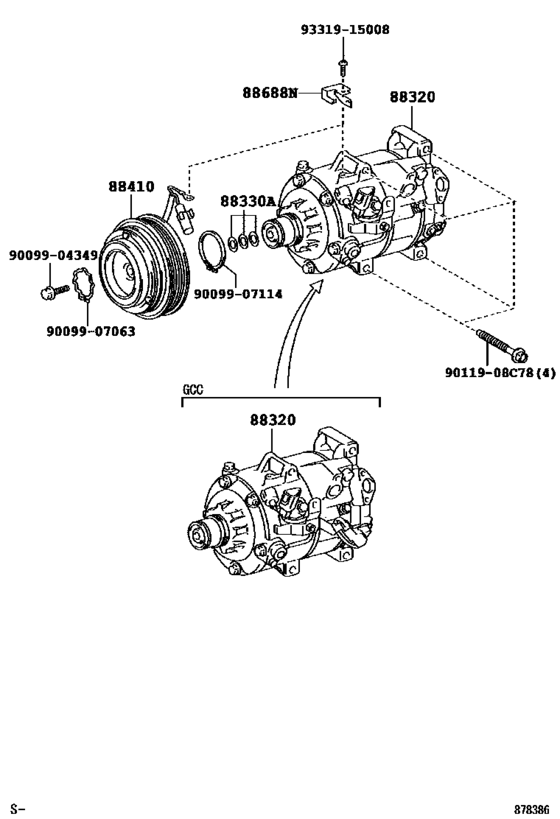

Heating & Air Conditioning - Compressor ([05.2006 - ] (0605- )GSV40) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-33210
Compressor Assy, Cooler
[07.2006 - 08.2009] GSV40..CHI |
88320-33210 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[05.2006 - 08.2009] GSV40 |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-33150 Clutch Assy, Magnet[05.2006 - 08.2009] GSV40 |
88410-33150 |
from US $366.91 |
||
|
88688N
|
88688N
88688-33460
Bracket, Cooler Compressor
[05.2006 - 05.2008] GSV40 |
88688-33460 |
— | ||
|
88688N
|
88688N
88688-48250
Bracket, Cooler Compressor
[05.2008 - 08.2009] GSV40 |
88688-48250 |
— | ||
|
9011908C78
|
9011908C78
90119-08C78 Bolt, No.2(For Alternator) |
90119-08C78 |
US $2.10 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907063
|
9009907063
90099-07063 RING SNAP |
90099-07063 |
from US $1.01 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.03 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
