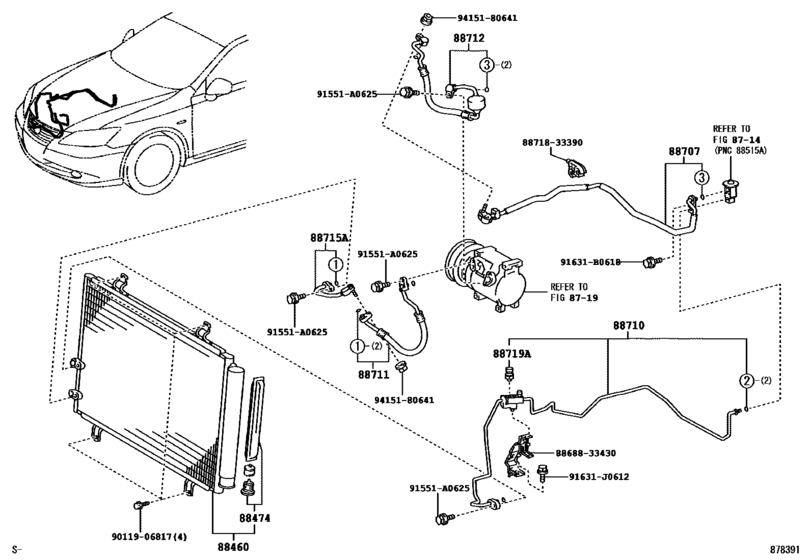

Heating & Air Conditioning - Cooler Piping ([05.2006 - ] (0605- )GSV40) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-33100 Condenser Assy, Cooler[05.2006 - 08.2009] GSV40 |
88460-33100 |
from US $643.55 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[05.2006 - 08.2009] GSV40 |
88474-17010 |
from US $60.10 |
||
|
88707
|
88707
88707-33010
Pipe Sub-Assy, Suction
[05.2006 - 08.2009] GSV40 |
88707-33010 |
— | ||
|
88707
|
88707
88707-33100
Pipe Sub-Assy, Suction
[06.2011 -] ACV40,GSV40 |
88707-33100 |
— | ||
|
88710
|
88710
88710-33320
Tube Assy, Air Conditioner
[05.2006 - 08.2009] GSV40 |
88710-33320 |
— | ||
|
88711
|
88711
88711-33230
Hose, Cooler Refrigerant Discharge, No.1
[05.2006 - 08.2009] GSV40 |
88711-33230 |
— | ||
|
88712
|
88712
88712-33270
Hose, Cooler Refrigerant Suction, No.1
[05.2006 - 08.2009] GSV40 |
88712-33270 |
— | ||
|
88715A
|
88715A
88715-33020 Pipe, Cooler Refrigerant Discharge, A[05.2006 - 08.2009] GSV40 |
88715-33020 |
US $63.34 |
||
|
88719A
|
88719A
88719-33020 Sensor, Airconditioner Pressure[05.2006 - 08.2009] GSV40 |
88719-33020 |
from US $124.05 |
||
|
91551A0625
|
91551A0625
91551-A0625 Bolt(For Cylinder Head Cover) |
91551-A0625 |
US $1.08 |
||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.65 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
8868833430
|
8868833430
88688-33430
Bracket, Cooler Diaphragm
|
88688-33430 |
— | ||
|
8871833390
|
8871833390
88718-33390
Pipe, Cooler Refrigerant Suction, No.2
|
88718-33390 |
— | ||
|
9011906817
|
9011906817
90119-06817 BOLT WWASHER |
90119-06817 |
from US $0.84 |
||
|
9415180641
|
9415180641
94151-80641 NUT FLANGE |
94151-80641 |
from US $0.95 |
