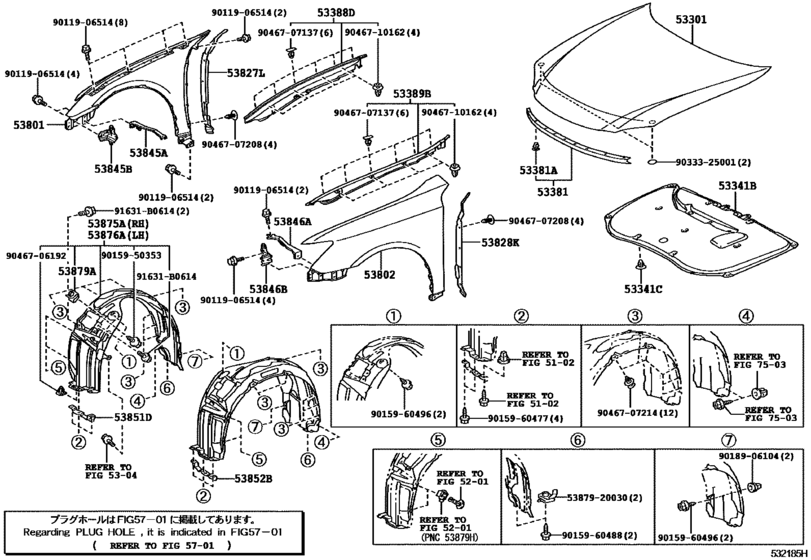

Hood & Front Fender ([05.2006 - ] (0605- )) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-33140 Hood Sub-Assy[05.2006 - 08.2009] GSV40 |
53301-33140 |
from US $969.70 |
||
|
53341B
|
53341B
53341-33160
Insulator, Hood
[05.2006 - 08.2009] GSV40 |
53341-33160 |
— | ||
|
53341C
|
53341C
90467-09050 Clip(For Hood Insulator)[05.2006 - 08.2009] GSV40 |
90467-09050 |
from US $0.84 |
||
|
53381
|
53381
53381-33090 Seal, Hood To Radiator SupportHOOD TO RADIATOR SUPPORT [05.2006 - 08.2009] GSV40 |
53381-33090 |
from US $16.59 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[05.2006 - 08.2009] GSV40 |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[05.2006 - 08.2009] GSV40 |
90467-08011-TH |
US $0.30 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [05.2006 - 08.2009] GSV40 |
90467-08011-83 |
US $0.51 |
||
|
53388D
|
53388D
53805-33020
Seal, Hood To Front Fender, Rh
[05.2006 - 08.2009] GSV40 |
53805-33020 |
— | ||
| replacement | |||||
|
53388D
|
53388D
53805-33021
Seal, Hood To Front Fender, Rh
[05.2006 - 08.2009] GSV40 |
53805-33021 |
— | ||
|
53388D
|
53388D
53805-33021
Seal, Hood To Front Fender, Rh
[09.2009 -] ACV40,GSV40 |
53805-33021 |
— | ||
|
53389B
|
53389B
53806-33010
Seal, Hood To Front Fender, Lh
[05.2006 - 08.2009] GSV40 |
53806-33010 |
— | ||
| replacement | |||||
|
53389B
|
53389B
53806-33011
Seal, Hood To Front Fender, Lh
[05.2006 - 08.2009] GSV40 |
53806-33011 |
— | ||
|
53389B
|
53389B
53806-33011
Seal, Hood To Front Fender, Lh
[09.2009 -] ACV40,GSV40 |
53806-33011 |
— | ||
|
53801
|
53801
53811-33180 Fender Sub-Assy, Front RhFRONT RH [08.2009 -] ACV40,GSV40 |
53811-33180 |
from US $465.22 |
||
|
53801
|
53801
53811-33190
Fender Sub-Assy, Front Rh
[07.2006 - 08.2009] GSV40..CHI |
53811-33190 |
— | ||
|
53802
|
53802
53812-33180 Fender Sub-Assy, Front LhFRONT LH [08.2009 -] ACV40,GSV40 |
53812-33180 |
from US $473.48 |
||
|
53802
|
53802
53812-33190 Fender Sub-Assy, Front LhFRONT LH [07.2006 - 08.2009] GSV40..CHI |
53812-33190 |
US $465.01 |
||
|
53827L
|
53827L
53827-33060 Protector, Front Fender Side Panel, RhFRONT FENDER SIDE PANEL, RH [05.2006 - 08.2009] GSV40 |
53827-33060 |
US $32.32 |
||
|
53828K
|
53828K
53828-33060 Protector, Front Fender Side Panel, LhFRONT FENDER SIDE PANEL, LH [05.2006 - 08.2009] GSV40 |
53828-33060 |
US $32.32 |
||
|
53845A
|
53845A
53845-33080 Brace, Front Wheel Opening Apron, RhFRONT WHEEL OPENING APRON, RH [05.2006 - 08.2009] GSV40 |
53845-33080 |
US $10.05 |
||
|
53845B
|
53845B
53847-33010 Extension, Front Wheel Opening, No.1 RhFRONT WHEEL OPENING, NO.1 RH [05.2006 - 08.2009] GSV40 |
53847-33010 |
from US $27.81 |
||
|
53846A
|
53846A
53846-33070 Brace, Front Wheel Opening Apron, LhFRONT WHEEL OPENING APRON, LH [05.2006 - 08.2009] GSV40 |
53846-33070 |
from US $10.05 |
||
|
53846B
|
53846B
53848-33010 Extension, Front Wheel Opening, No.1 LhFRONT WHEEL OPENING, NO.1 LH [05.2006 - 08.2009] GSV40 |
53848-33010 |
from US $43.43 |
||
|
53851D
|
53851D
53851-33020 Pad, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH [05.2006 - 08.2009] GSV40 |
53851-33020 |
from US $18.78 |
||
|
53851D
|
53851D
53851-33030
Pad, Front Wheel Opening Extension, Rh
[08.2009 -] ACV40,GSV40 |
53851-33030 |
— | ||
|
53852B
|
53852B
53852-33020
Pad, Front Wheel Opening Extension, Lh
[05.2006 - 08.2009] GSV40 |
53852-33020 |
— | ||
|
53852B
|
53852B
53852-33030 Pad, Front Wheel Opening Extension, LhFRONT WHEEL OPENING EXTENSION, LH [08.2009 -] ACV40,GSV40 |
53852-33030 |
US $24.72 |
||
|
53875A
|
53875A
53875-33170 Liner, Front Fender, RhFRONT FENDER, RH [05.2006 - 08.2009] GSV40 |
53875-33170 |
US $80.77 |
||
|
53875A
|
53875A
53875-33180 Liner, Front Fender, RhFRONT FENDER, RH [08.2009 -] ACV40,GSV40 |
53875-33180 |
US $145.37 |
||
|
53876A
|
53876A
53876-33171 Liner, Front Fender, Lh[05.2006 - 08.2009] GSV40 |
53876-33171 |
from US $55.76 |
||
|
53876A
|
53876A
53876-33180 Liner, Front Fender, LhFRONT FENDER, LH [08.2009 -] ACV40,GSV40 |
53876-33180 |
US $146.89 |
||
|
53879A
|
53879A
53879-17020 Retainer, Front Fender Liner[05.2006 - 08.2009] GSV40 |
53879-17020 |
from US $2.05 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.84 |
||
|
5387920030
|
5387920030
53879-20030 Retainer, Front Fender Liner |
53879-20030 |
US $4.37 |
||
|
9011906514
|
9011906514
90119-06514 BOLT WWASHER |
90119-06514 |
US $1.79 |
||
|
9015950353
|
9015950353
90159-50353 SCREW, W-WASHER |
90159-50353 |
from US $0.65 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.68 |
||
|
9015960488
|
9015960488
90159-60488 SCREW WWASHER |
90159-60488 |
from US $0.68 |
||
|
9015960496
|
9015960496
90159-60496 SCREW WWASHER |
90159-60496 |
from US $0.61 |
||
|
9018906104
|
9018906104
90189-06104 CLIP |
90189-06104 |
from US $1.14 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.25 |
||
|
9046706192
|
9046706192
90467-06192 Clip, Front Fender Liner |
90467-06192 |
from US $0.87 |
||
|
9046707137
|
9046707137
90467-07137 CLIP |
90467-07137 |
US $2.87 |
||
|
9046707208
|
9046707208
90467-07208 CLIP |
90467-07208 |
from US $0.89 |
||
|
9046707214
|
9046707214
90467-07214 Clip, Front Fender Liner |
90467-07214 |
from US $0.84 |
||
|
9046710162
|
9046710162
90467-10162 Clip, Front Wheel Opening Extensoion |
90467-10162 |
from US $0.86 |
||
