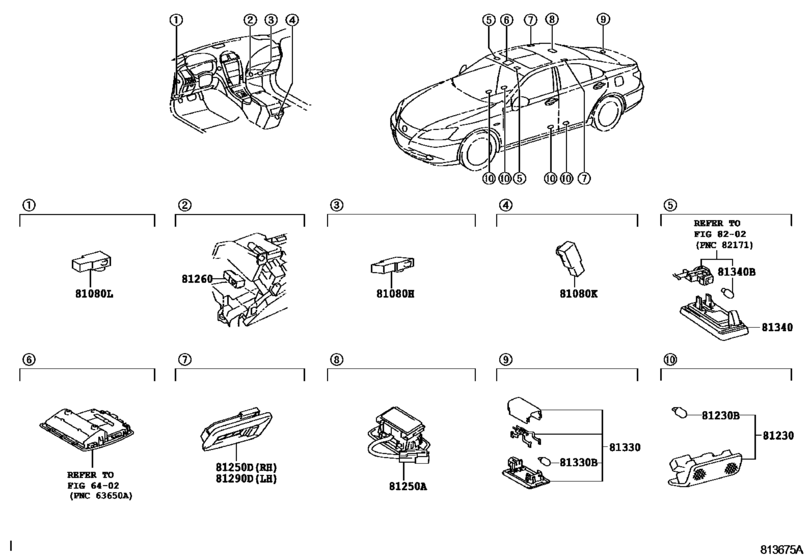

Interior Lamp ([05.2006 - 08.2009] (0605-0908)) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81080H
|
81080H
81080-33020
Lamp Assy, Interior Illumination, No.1 Rh
[05.2006 - 08.2009] GSV40 |
81080-33020 |
— | ||
|
81080K
|
81080K
81080-48010 Lamp Assy, Interior Illumination, No.1 Rh[05.2006 - 08.2009] GSV40 |
81080-48010 |
from US $10.22 |
||
|
81080L
|
81080L
81080-48010 Lamp Assy, Interior Illumination, No.1 Rh[05.2006 - 08.2009] GSV40 |
81080-48010 |
from US $10.22 |
||
|
81230
|
81230
81230-47010
Lamp Assy, Courtesy
[05.2006 - 08.2009] GSV40 |
81230-47010 |
— | ||
| replacement | |||||
|
81230
|
81230
81230-30200 Lamp Assy, Courtesy[05.2006 - 08.2009] GSV40 |
81230-30200 |
from US $12.05 |
||
|
81230B
|
81230B
90981-12010 Bulb (For Lower Back Finish Panel Emblem)[05.2006 - 08.2009] GSV40 12V 5W |
90981-12010 |
from US $1.97 |
||
|
81250A
|
81250A
81250-33010-A0
Lamp Assy, Spot
[05.2006 - 08.2009] GSV40 IVORY,TRIM0# |
81250-33010-A0 |
— | ||
|
81250A
|
81250A
81250-33010-B0
Lamp Assy, Spot
[05.2006 - 08.2009] GSV40 LT.GRAY,TRIM1#,2# |
81250-33010-B0 |
— | ||
|
81250D
|
81250D
81250-33020-A0
Lamp Assy, Rear Room, Rh
[05.2006 - 08.2009] GSV40 IVORY,TRIM0# |
81250-33020-A0 |
— | ||
|
81250D
|
81250D
81250-33020-B0
Lamp Assy, Rear Room, Rh
[05.2006 - 08.2009] GSV40 LT.GRAY,TRIM1#,2# |
81250-33020-B0 |
— | ||
|
81260
|
81260
81080-48010 Lamp Assy, Interior Illumination, No.1 Rh[05.2006 - 08.2009] GSV40 |
81080-48010 |
from US $10.22 |
||
|
81290D
|
81290D
81290-33020-A0
Lamp Assy, Rear Room, Lh
[05.2006 - 08.2009] GSV40 IVORY,TRIM0# |
81290-33020-A0 |
— | ||
|
81290D
|
81290D
81290-33020-B0
Lamp Assy, Rear Room, Lh
[05.2006 - 08.2009] GSV40 LT.GRAY,TRIM1#,2# |
81290-33020-B0 |
— | ||
|
81330
|
81330
81250-33030 Lamp Assy, Luggage Compartment, No.1LUGGAGE COMPARTMENT, NO.1 [05.2006 - 08.2009] GSV40 |
81250-33030 |
US $23.35 |
||
|
81330B
|
81330B
90981-12010 Bulb (For Lower Back Finish Panel Emblem)[05.2006 - 08.2009] GSV40 12V 5W |
90981-12010 |
from US $1.97 |
||
|
81340
|
81340
81340-30100-A0 Lamp Assy, Vanity[05.2006 - 08.2009] GSV40 IVORY,TRIM0# |
81340-30100-A0 |
US $29.99 |
||
|
81340
|
81340
81340-30100-A4 Lamp Assy, VanityVANITY [08.2009 - 06.2012] ACV40,GSV40 IVORY,TRIM0# |
81340-30100-A4 |
US $22.57 |
||
|
81340
|
81340
81340-30100-B0 Lamp Assy, Vanity[05.2006 - 08.2009] GSV40 LT.GRAY,TRIM1#,2# |
81340-30100-B0 |
US $37.46 |
||
|
81340B
|
81340B
90981-11062 Bulb, Room Lamp, No.1[05.2006 - 08.2009] GSV40 12V 8W |
90981-11062 |
from US $2.20 |
||
