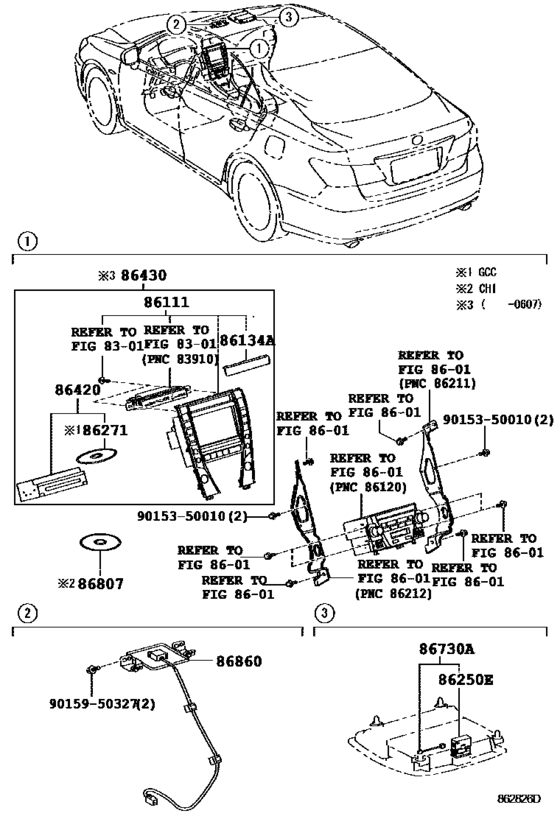

Navigation & Front Monitor Display ([05.2006 - 08.2009] (0605-0908)) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86111
|
86111
86111-33020
Multi-Display
[07.2006 - 08.2009] GSV40..CHI FUJITSU TEN,AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40..CHI FUJITSU TEN,AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86111-33020 |
— | ||
| replacement | |||||
|
86111
|
86111
86111-33021
Multi-Display
[07.2006 - 08.2009] GSV40..CHI FUJITSU TEN,AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40..CHI FUJITSU TEN,AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86111-33021 |
— | ||
|
86111
|
86111
86111-33060
Multi-Display
[07.2007 - 08.2009] GSV40..CHI FUJITSU TEN,TAIWAN SPEC&AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40..CHI FUJITSU TEN,TAIWAN SPEC&AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86111-33060 |
— | ||
| replacement | |||||
|
86111
|
86111
86111-33061
Multi-Display
[07.2007 - 08.2009] GSV40..CHI FUJITSU TEN,TAIWAN SPEC&AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40..CHI FUJITSU TEN,TAIWAN SPEC&AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86111-33061 |
— | ||
|
86134A
|
86134A
86134-33040
Parts, Multi-Display
[05.2006 - 08.2009] GSV40 AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40 AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86134-33040 |
— | ||
|
86250E
|
86250E
86250-52030 Microphone Assy, Amplifier[05.2006 - 08.2009] GSV40 AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40 AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86250-52030 |
US $61.44 |
||
|
86420
|
86420
86420-33020
Navigation Assy, Multi-Media Module
[07.2006 - 08.2009] GSV40..CHI AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40..CHI AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86420-33020 |
— | ||
|
86420
|
86420
86420-33030
Navigation Assy, Multi-Media Module
[07.2007 - 08.2009] GSV40..CHI TAIWAN SPEC&AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40..CHI TAIWAN SPEC&AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86420-33030 |
— | ||
|
86730A
|
86730A
86730-33100
Microphone Assy, Telephone
[08.2009 - 06.2012] GSV40..CHI; GSV40..CHI TAIWAN SPEC&AUDIO-AM/FM 6CD-CHANGER 8SP; GSV40..CHI AUDIO-AM/FM 6CD-CHANGER 8SP; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86730-33100 |
— | ||
|
86730A
|
86730A
86730-42020
Microphone Assy, Telephone
[05.2006 - 08.2009] GSV40 AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40 AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86730-42020 |
— | ||
|
86807
|
86807
86807-0W022
Disc, Disc Player
[07.2006 - 07.2007] GSV40..CHI MAP DISC(DOP)-WITH |
86807-0W022 |
— | ||
| replacement | |||||
|
86807
|
86807
86807-0W028
Disc, Disc Player
[07.2006 - 07.2007] GSV40..CHI MAP DISC(DOP)-WITH |
86807-0W028 |
— | ||
|
86807
|
86807
86807-0W023
Disc, Disc Player
[08.2007 - 04.2008] GSV40..CHI MAP DISC(DOP)-WITH |
86807-0W023 |
— | ||
| replacement | |||||
|
86807
|
86807
86807-0W028
Disc, Disc Player
[08.2007 - 04.2008] GSV40..CHI MAP DISC(DOP)-WITH |
86807-0W028 |
— | ||
|
86807
|
86807
86807-0W024
Disc, Disc Player
[05.2008 - 04.2009] GSV40..CHI MAP DISC(DOP)-WITH |
86807-0W024 |
— | ||
| replacement | |||||
|
86807
|
86807
86807-0W028
Disc, Disc Player
[05.2008 - 04.2009] GSV40..CHI MAP DISC(DOP)-WITH |
86807-0W028 |
— | ||
|
86807
|
86807
86807-0W025
Disc, Disc Player
[05.2009 - 08.2009] GSV40..CHI MAP DISC(DOP)-WITH |
86807-0W025 |
— | ||
| replacement | |||||
|
86807
|
86807
86807-0W028
Disc, Disc Player
[05.2009 - 08.2009] GSV40..CHI MAP DISC(DOP)-WITH |
86807-0W028 |
— | ||
|
86807
|
86807
86807-0W031
Disc, Disc Player
[07.2007 - 09.2007] GSV40..CHI TAIWAN SPEC&MAP DISC(DOP)-WITH |
86807-0W031 |
— | ||
| replacement | |||||
|
86807
|
86807
86807-0W032
Disc, Disc Player
[07.2007 - 09.2007] GSV40..CHI TAIWAN SPEC&MAP DISC(DOP)-WITH |
86807-0W032 |
— | ||
|
86807
|
86807
86807-0W032
Disc, Disc Player
[10.2007 - 08.2008] GSV40..CHI TAIWAN SPEC&MAP DISC(DOP)-WITH |
86807-0W032 |
— | ||
|
86807
|
86807
86807-0W033
Disc, Disc Player
[09.2008 - 07.2009] GSV40..CHI TAIWAN SPEC&MAP DISC(DOP)-WITH |
86807-0W033 |
— | ||
|
86807
|
86807
86807-0W035
Disc, Disc Player
[08.2010 - 07.2011] ACV40,GSV40..CHI TAIWAN SPEC&MAP DISC(DOP)-WITH |
86807-0W035 |
— | ||
| replacement | |||||
|
86807
|
86807
86807-0W251
Disc Kit, Cd-Rom
[08.2010 - 07.2011] ACV40,GSV40..CHI TAIWAN SPEC&MAP DISC(DOP)-WITH |
86807-0W251 |
— | ||
|
86807
|
86807
86807-0W036
Disc, Disc Player
[08.2011 - 06.2012] ACV40,GSV40..CHI TAIWAN SPEC&MAP DISC(DOP)-WITH |
86807-0W036 |
— | ||
| replacement | |||||
|
86807
|
86807
86807-0W251
Disc Kit, Cd-Rom
[08.2011 - 06.2012] ACV40,GSV40..CHI TAIWAN SPEC&MAP DISC(DOP)-WITH |
86807-0W251 |
— | ||
|
86807
|
86807
86807-0W071
Disc, Disc Player
[08.2009 - 07.2010] GSV40..CHI TAIWAN SPEC&MAP DISC(DOP)-WITH |
86807-0W071 |
— | ||
|
86860
|
86860
86860-33100
Antenna Assy, Navigation
[05.2006 - 08.2009] GSV40 AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40 AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86860-33100 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
