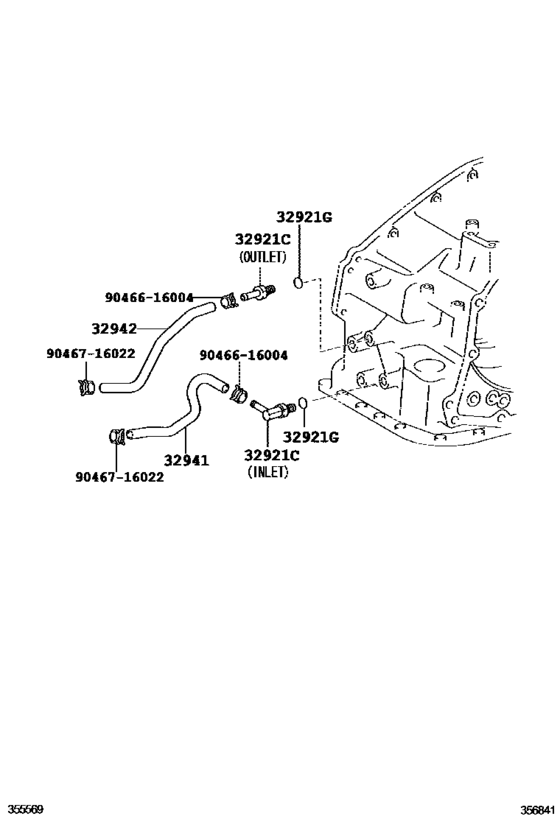

Oil Cooler & Tube (Atm) ([07.2006 - ] U660E (0607- )GSV40..CHI) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921C
|
32921C
90404-14027 Union(For Oil Cooler Tube)[05.2006 - 08.2009] GSV40 OUTLET |
90404-14027 |
US $9.03 |
||
|
32921C
|
32921C
90407-14032 Elbow, Transaxle Case[05.2006 - 08.2009] GSV40 INLET |
90407-14032 |
from US $4.80 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[05.2006 - 08.2009] GSV40 |
90301-11006 |
from US $2.43 |
||
|
32921G
|
32921G
90301-11031 Ring, O(For Oil Cooler Tube Union)[08.2011 -] GSV40 |
90301-11031 |
US $3.58 |
||
|
32941
|
32941
32941-33070 Hose, Oil Cooler Inlet, No.1OIL COOLER INLET, NO.1 [05.2006 - 08.2009] GSV40 |
32941-33070 |
US $29.07 |
||
|
32942
|
32942
32942-33050 Hose, Oil Cooler Outlet, No.1OIL COOLER OUTLET, NO.1 [07.2006 - 08.2009] GSV40..CHI |
32942-33050 |
US $20.53 |
||
| replacement | |||||
|
32942
|
32942
90445-17178 Hose(For Oil Cooler Inlet)[07.2006 - 08.2009] GSV40..CHI |
90445-17178 |
from US $10.05 |
||
|
32942
|
32942
32942-33150
Hose(For Oil Cooler Inlet)
[07.2010 -] GSV40..CHI |
32942-33150 |
— | ||
| replacement | |||||
|
32942
|
32942
90445-17178 Hose(For Oil Cooler Inlet)[07.2010 -] GSV40..CHI |
90445-17178 |
from US $10.05 |
||
|
9046616004
|
9046616004
90466-16004 Clip(For Ventilation Hose No.2) |
90466-16004 |
from US $1.82 |
||
|
9046716022
|
9046716022
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
from US $2.26 |
||
