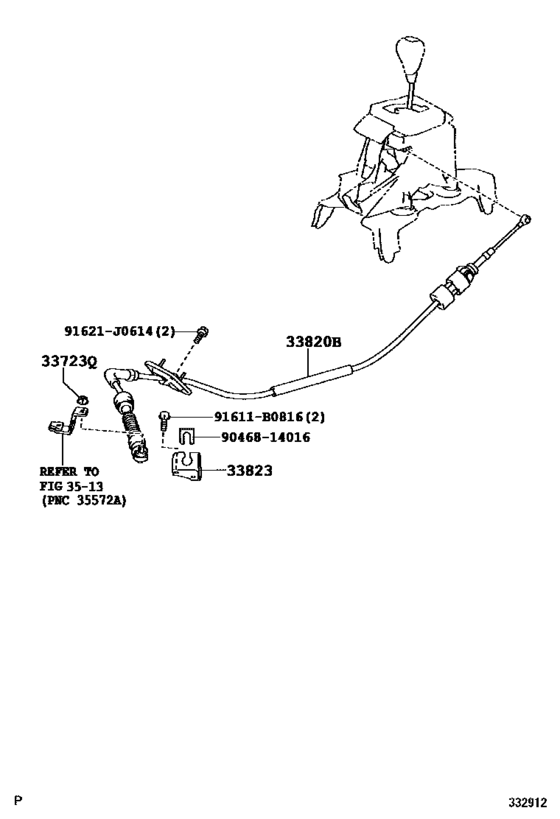

Shift Lever & Retainer ([05.2006 - ] (0605- )GSV40) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33723Q
|
33723Q
90179-08054 Nut (For Connecting Rod Swivel)[05.2006 - 08.2009] GSV40 |
90179-08054 |
US $1.79 |
||
|
33820B
|
33820B
33820-33300
Cable Assy, Transmission Control
[05.2006 - 08.2009] GSV40 |
33820-33300 |
— | ||
|
33823
|
33823
33823-33050 Bracket, Transmission Control Cable, No.1TRANSMISSION CONTROL CABLE, NO.1 [05.2006 - 08.2009] GSV40 |
33823-33050 |
US $9.46 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
91621J0614
|
91621J0614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
from US $0.87 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.08 |
