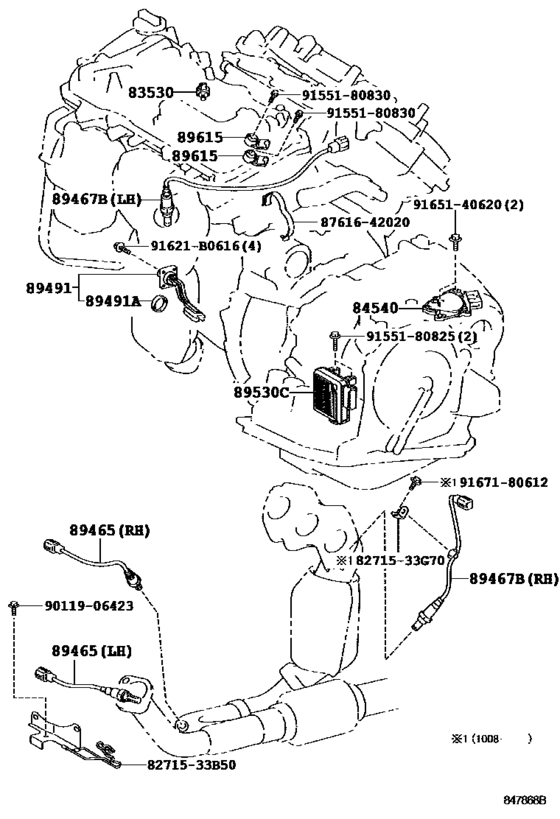

Switch & Relay & Computer ([05.2006 - ] ENGINE & TRANSMISSION (0605- )GSV40) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[05.2006 - 08.2009] GSV40 DENSO |
83530-28020 |
from US $26.98 |
||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [05.2006 - 08.2009] GSV40 DENSO |
83530-60020 |
from US $23.22 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [05.2006 - 08.2009] GSV40 YAZAKI |
83530-60020 |
from US $23.22 |
||
|
84540
|
84540
84540-33010 Switch Assy, Neutral Start[05.2006 - 08.2009] GSV40 |
84540-33010 |
from US $111.59 |
||
|
89465
|
89465
89465-33360 Sensor, OxygenOXYGEN [05.2006 - 08.2009] GSV40 LH |
89465-33360 |
from US $154.16 |
||
|
89465
|
89465
89465-33420 Sensor, OxygenOXYGEN [05.2006 - 08.2009] GSV40 RH |
89465-33420 |
from US $154.16 |
||
|
89467B
|
89467B
89467-33090 Sensor, Air Fuel RatioAIR FUEL RATIO [05.2006 - 07.2007] GSV40 LH |
89467-33090 |
from US $199.88 |
||
|
89467B
|
89467B
89467-33130 Sensor, Air Fuel RatioAIR FUEL RATIO [05.2006 - 07.2007] GSV40 RH |
89467-33130 |
from US $212.16 |
||
|
89467B
|
89467B
89467-33170 Sensor, Air Fuel RatioAIR FUEL RATIO [07.2007 - 08.2009] GSV40 LH |
89467-33170 |
from US $177.63 |
||
|
89467B
|
89467B
89467-33180 Sensor, Air Fuel RatioAIR FUEL RATIO [07.2007 - 08.2009] GSV40 RH |
89467-33180 |
from US $177.63 |
||
|
89491
|
89491
89491-48010 Sensor, Engine Oil LevelENGINE OIL LEVEL [05.2006 - 08.2009] GSV40 |
89491-48010 |
US $171.68 |
||
|
89491A
|
89491A
90430-27001 Gasket, Engine Oil Level Sensor[05.2006 - 08.2009] GSV40 |
90430-27001 |
from US $1.03 |
||
|
89530C
|
89530C
89530-33050
Computer Assy, Transmission Control
[07.2006 - 09.2007] GSV40..CHI BEIJING SPEC |
89530-33050 |
— | ||
| replacement | |||||
|
89530C
|
89530C
89530-33051
Computer Assy, Transmission Control
[07.2006 - 09.2007] GSV40..CHI BEIJING SPEC |
89530-33051 |
— | ||
|
89530C
|
89530C
89530-33051
Computer Assy, Transmission Control
[10.2007 - 01.2009] GSV40..CHI BEIJING SPEC; GSV40..CHI TAIWAN SPEC |
89530-33051 |
— | ||
|
89530C
|
89530C
89530-33060
Computer Assy, Transmission Control
[05.2006 - 09.2007] GSV40 |
89530-33060 |
— | ||
| replacement | |||||
|
89530C
|
89530C
89530-33061
Computer Assy, Transmission Control
[05.2006 - 09.2007] GSV40 |
89530-33061 |
— | ||
|
89530C
|
89530C
89530-33061
Computer Assy, Transmission Control
[10.2007 - 01.2009] GSV40..CHI |
89530-33061 |
— | ||
|
89530C
|
89530C
89530-33080
Computer Assy, Transmission Control
[08.2009 -] GSV40..CHI |
89530-33080 |
— | ||
|
89615
|
89615
89615-20090 Sensor, Knock Control[05.2006 - 08.2009] GSV40 |
89615-20090 |
from US $39.82 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.78 |
||
|
8271533B50
|
8271533B50
82715-33B50 Bracket,wiring Harness Clamp |
82715-33B50 |
US $6.55 |
||
|
8271533G70
|
8271533G70
82715-33G70
Bracket,wiring Harness Clamp
|
82715-33G70 |
— | ||
|
8761642020
|
8761642020
87616-42020 Clamp, Cooling Unit Case |
87616-42020 |
US $4.66 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.78 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.89 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.84 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.65 |
||
