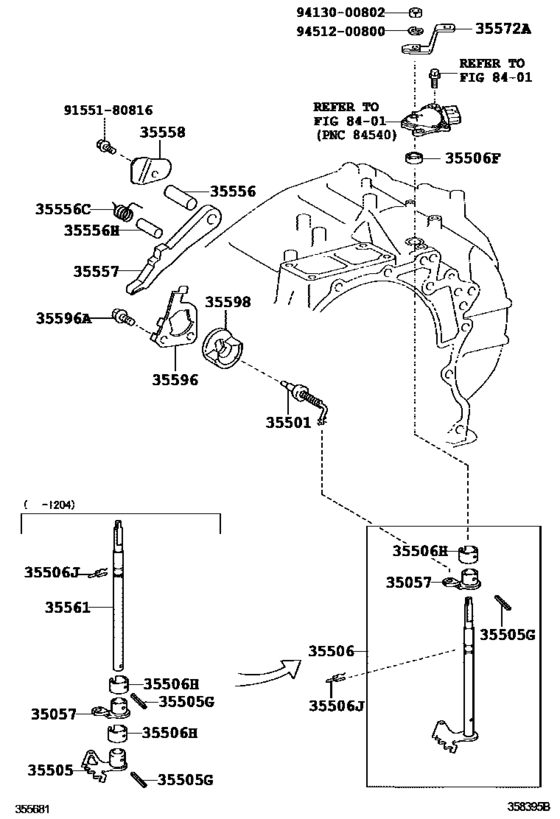

Throttle Link & Valve Lever (Atm) ([05.2006 - ] U660E (0605- )GSV40) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35057
|
35057
35057-33010 Lever Sub-Assy, Parking Lock W/roller[05.2006 - 08.2009] GSV40 |
35057-33010 |
US $8.74 |
||
|
35501
|
35501
35501-33020 Rod Sub-Assy, Parking Lock[05.2006 - 08.2009] GSV40 |
35501-33020 |
US $12.23 |
||
|
35505
|
35505
35505-33010 Lever Sub-Assy, Manual Valve[05.2006 - 10.2008] GSV40 |
35505-33010 |
US $24.90 |
||
| replacement | |||||
|
35505
|
35505
35505-33011 Lever Sub-Assy, Manual Valve[05.2006 - 10.2008] GSV40 |
35505-33011 |
US $20.82 |
||
|
35505
|
35505
35505-33011 Lever Sub-Assy, Manual Valve[10.2008 - 08.2009] GSV40 |
35505-33011 |
US $20.82 |
||
|
35505G
|
35505G
90254-04011 Pin, Slotted Spring (For Transfer Manual Valve Lever)[04.2012 -] GSV40 |
90254-04011 |
US $1.40 |
||
|
35506
|
35506
35506-33020 Shaft Sub-Assy, Manual Valve Lever[04.2012 -] GSV40 |
35506-33020 |
US $28.68 |
||
|
35506F
|
35506F
90311-12002 Oil Seal, Type T[05.2006 - 08.2009] GSV40 |
90311-12002 |
from US $3.93 |
||
|
35506H
|
35506H
90560-20006 Spacer (For Manual Valve Lever)[04.2012 -] GSV40 |
90560-20006 |
from US $2.77 |
||
|
35506J
|
35506J
90524-09002 Spring, Retainer (For Manual Valve Lever Shaft)[05.2006 - 08.2009] GSV40 |
90524-09002 |
US $1.16 |
||
|
35556
|
35556
35556-33010 Shaft, Parking Lock Pawl[05.2006 - 08.2009] GSV40 |
35556-33010 |
US $5.53 |
||
|
35556C
|
35556C
90508-21007 Spring, Torsion (For Parking Lock Pawl Shaft)[05.2006 - 08.2009] GSV40 |
90508-21007 |
US $1.60 |
||
|
35556H
|
35556H
35556-63010 Shaft, Parking Lock Pawl[05.2006 - 08.2009] GSV40 |
35556-63010 |
US $3.06 |
||
|
35557
|
35557
35557-33020 Pawl, Parking Lock[05.2006 - 08.2009] GSV40 |
35557-33020 |
US $50.09 |
||
| replacement | |||||
|
35557
|
35557
35557-33021 Pawl, Parking Lock[05.2006 - 08.2009] GSV40 |
35557-33021 |
US $37.86 |
||
|
35557
|
35557
35557-33021 Pawl, Parking Lock[03.2012 -] GSV40 |
35557-33021 |
US $37.86 |
||
|
35558
|
35558
35558-33010 Clamp, Pawl Shaft[05.2006 - 08.2009] GSV40 |
35558-33010 |
US $3.20 |
||
|
35561
|
35561
35561-33020
Shaft, Manual Valve Lever
[05.2006 - 08.2009] GSV40 |
35561-33020 |
— | ||
|
35572A
|
35572A
35572-33020 Lever, Transmission Control Shaft[05.2006 - 08.2009] GSV40 |
35572-33020 |
US $8.15 |
||
|
35596
|
35596
35596-33010 Plate, Pawl Stopper[05.2006 - 08.2009] GSV40 |
35596-33010 |
US $7.13 |
||
|
35596A
|
35596A
91551-80816 Bolt(For Manual Transmission Oil Separator)[05.2006 - 08.2009] GSV40 *8-1.25PX16-13.5 |
91551-80816 |
from US $0.78 |
||
|
35598
|
35598
35598-33010 Sleeve, Parking Lock[05.2006 - 08.2009] GSV40 |
35598-33010 |
US $11.94 |
||
|
9155180816
|
9155180816
91551-80816 Bolt(For Manual Transmission Oil Separator) |
91551-80816 |
from US $0.78 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
