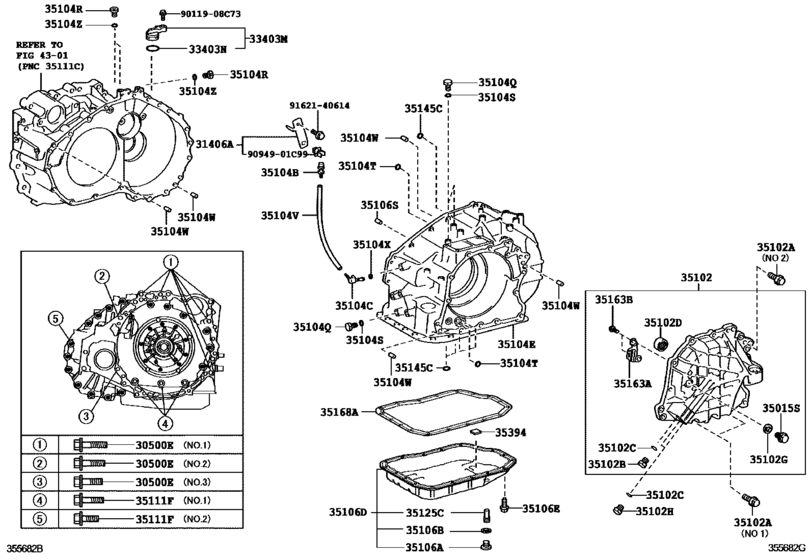

Transmission Case & Oil Pan (Atm) ([05.2006 - ] U660E (0605- )GSV40) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30500E
|
30500E
90105-10425 Bolt(For Transaxle & Engine Setting)[05.2006 - 08.2009] GSV40 *10-1.25PX41-28,NO.3 |
90105-10425 |
from US $1.29 |
||
|
30500E
|
30500E
90119-12168 Bolt(For Transaxle & Engine Setting)[05.2006 - 08.2009] GSV40 *12-1.25PX55-30,NO.1 |
90119-12168 |
from US $1.98 |
||
|
30500E
|
30500E
90119-12250 Bolt(For Transaxle & Engine Setting)[05.2006 - 08.2009] GSV40 *12-1.25PX50-30,NO.2 |
90119-12250 |
from US $1.56 |
||
|
31406A
|
31406A
31406-33020
Bracket Sub-Assy, Flexible Hose
[05.2006 - 08.2009] GSV40 |
31406-33020 |
— | ||
|
33403M
|
33403M
33403-35230 Cover Sub-Assy, Speedometer Driven Hole[05.2006 - 08.2009] GSV40 |
33403-35230 |
from US $19.82 |
||
|
33403N
|
33403N
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[05.2006 - 08.2009] GSV40 |
96711-24030 |
from US $2.15 |
||
|
35015S
|
35015S
90341-18064 Plug, Straight(For Transmission Case Adapter)[05.2006 - 08.2009] GSV40 |
90341-18064 |
from US $3.14 |
||
|
35102
|
35102
35102-33060
Cover Sub-Assy, Transaxle Rear
[05.2006 - 08.2009] GSV40 |
35102-33060 |
— | ||
| replacement | |||||
|
35102
|
35102
35102-33061 Cover Sub-Assy, Transaxle Rear[05.2006 - 08.2009] GSV40 |
35102-33061 |
US $345.07 |
||
|
35102A
|
35102A
90105-08431 Bolt (For Transaxle Rear Cover Setting)[05.2006 - 08.2009] GSV40 *8-1.25PX28-22,NO.1 |
90105-08431 |
US $1.61 |
||
|
35102A
|
35102A
91551-00828 Bolt (For Transaxle Rear Cover Setting)[05.2006 - 08.2009] GSV40 *8-1.25PX28-22,NO.2 |
91551-00828 |
US $1.02 |
||
|
35102B
|
35102B
90341-08001 Plug, Transaxle Case, No.1[05.2006 - 08.2009] GSV40 |
90341-08001 |
from US $1.48 |
||
|
35102C
|
35102C
90301-06196 O Ring, Transaxle Case, No.1[05.2006 - 08.2009] GSV40 |
90301-06196 |
from US $2.45 |
||
|
35102D
|
35102D
90364-18010 Bearing, Needle Roller(For Transaxle Rear Cover)[05.2006 - 08.2009] GSV40 |
90364-18010 |
from US $12.54 |
||
|
35102G
|
35102G
90430-18008 Gasket[05.2006 - 08.2009] GSV40 |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
35102G
|
35102G
90430-T0021 Gasket(For Manual Transmission Filler Plug)[05.2006 - 08.2009] GSV40 |
90430-T0021 |
US $0.99 |
||
|
35102H
|
35102H
90341-08001 Plug, Transaxle Case, No.1[05.2006 - 08.2009] GSV40 |
90341-08001 |
from US $1.48 |
||
|
35104B
|
35104B
90930-03149 Plug Sub-Assy, Breather(For Transmission)[05.2006 - 08.2009] GSV40 |
90930-03149 |
from US $3.94 |
||
|
35104C
|
35104C
90930-03187 Plug, Breather, No.2 (Atm)[05.2006 - 08.2009] GSV40 |
90930-03187 |
from US $5.73 |
||
|
35104E
|
35104E
35141-33070 Case Sub-Assy, Automatic Transaxle[05.2006 - 05.2008] GSV40 |
35141-33070 |
US $895.44 |
||
| replacements | |||||
|
35104E
|
35104E
35141-33073 Case Sub-Assy, Automatic Transaxle[05.2006 - 05.2008] GSV40 |
35141-33073 |
from US $658.69 |
||
|
35104E
|
35104E
35557-33021 Pawl, Parking Lock[05.2006 - 05.2008] GSV40 |
35557-33021 |
US $37.86 |
||
|
35104E
|
35104E
90369-72002 Bearing(For Counter Drive Gear)[05.2006 - 05.2008] GSV40 |
90369-72002 |
from US $97.39 |
||
|
35104E
|
35104E
90520-99154 Ring, Hole Snap(For Counter Drive Gear)[05.2006 - 05.2008] GSV40 |
90520-99154 |
from US $1.79 |
||
|
35104E
|
35104E
35141-33071 Case Sub-Assy, Automatic Transaxle[05.2008 - 08.2009] GSV40 |
35141-33071 |
US $748.38 |
||
| replacements | |||||
|
35104E
|
35104E
35141-33073 Case Sub-Assy, Automatic Transaxle[05.2008 - 08.2009] GSV40 |
35141-33073 |
from US $658.69 |
||
|
35104E
|
35104E
35557-33021 Pawl, Parking Lock[05.2008 - 08.2009] GSV40 |
35557-33021 |
US $37.86 |
||
|
35104E
|
35104E
90369-72002 Bearing(For Counter Drive Gear)[05.2008 - 08.2009] GSV40 |
90369-72002 |
from US $97.39 |
||
|
35104E
|
35104E
90520-99154 Ring, Hole Snap(For Counter Drive Gear)[05.2008 - 08.2009] GSV40 |
90520-99154 |
from US $1.79 |
||
|
35104E
|
35104E
35141-33072 Case Sub-Assy, Automatic Transaxle[03.2012 -] GSV40 |
35141-33072 |
US $627.54 |
||
| replacements | |||||
|
35104E
|
35104E
35141-33073 Case Sub-Assy, Automatic Transaxle[03.2012 -] GSV40 |
35141-33073 |
from US $658.69 |
||
|
35104E
|
35104E
90369-72002 Bearing(For Counter Drive Gear)[03.2012 -] GSV40 |
90369-72002 |
from US $97.39 |
||
|
35104E
|
35104E
90520-99154 Ring, Hole Snap(For Counter Drive Gear)[03.2012 -] GSV40 |
90520-99154 |
from US $1.79 |
||
|
35104Q
|
35104Q
90341-08001 Plug, Transaxle Case, No.1[05.2006 - 08.2009] GSV40 |
90341-08001 |
from US $1.48 |
||
|
35104R
|
35104R
90341-14015 Plug, W/head Straight Screw, No.1[05.2006 - 08.2009] GSV40 |
90341-14015 |
from US $2.07 |
||
|
35104S
|
35104S
90301-06196 O Ring, Transaxle Case, No.1[05.2006 - 08.2009] GSV40 |
90301-06196 |
from US $2.45 |
||
|
35104T
|
35104T
90301-10018 Ring, O(For Oil Cooler Tube Union)[08.2011 -] GSV40 |
90301-10018 |
from US $2.07 |
||
|
35104T
|
35104T
90301-10189 Ring, O(For Oil Cooler Tube Union)[05.2006 - 08.2009] GSV40 |
90301-10189 |
from US $2.57 |
||
|
35104V
|
35104V
35121-33040
Hose (For Breather Plug)
[05.2006 - 04.2008] GSV40 |
35121-33040 |
— | ||
| replacement | |||||
|
35104V
|
35104V
35121-73011 Hose (For Breather Plug)[05.2006 - 04.2008] GSV40 |
35121-73011 |
US $6.84 |
||
|
35104V
|
35104V
35121-73010
Hose (For Breather Plug)
[04.2008 - 08.2009] GSV40 |
35121-73010 |
— | ||
| replacement | |||||
|
35104V
|
35104V
35121-73011 Hose (For Breather Plug)[04.2008 - 08.2009] GSV40 |
35121-73011 |
US $6.84 |
||
|
35104W
|
35104W
90250-10017 Pin, Straight(For Clutch Housing Set)[05.2006 - 08.2009] GSV40 |
90250-10017 |
from US $1.41 |
||
|
35104X
|
35104X
90301-06005 Ring, O (For Breather Plug)[05.2006 - 08.2009] GSV40 |
90301-06005 |
from US $2.28 |
||
|
35104X
|
35104X
90301-06021 Ring, O (For Breather Plug)[05.2011 -] GSV40 |
90301-06021 |
US $2.51 |
||
|
35104Z
|
35104Z
90430-14008 Gasket(For Water Hole)[05.2006 - 08.2009] GSV40 |
90430-14008 |
from US $0.95 |
||
|
35106A
|
35106A
90341-12034 Plug Sub-Assy, Drain (Atm)[05.2006 - 08.2009] GSV40 |
90341-12034 |
from US $3.04 |
||
|
35106B
|
35106B
90430-12008 Gasket (For Shift Inter Lock Plate)[05.2006 - 08.2009] GSV40 |
90430-12008 |
from US $1.05 |
||
|
35106D
|
35106D
35106-33060 Pan Sub-Assy, Automatic Transaxle Oil[05.2006 - 07.2007] GSV40 |
35106-33060 |
US $60.72 |
||
| replacement | |||||
|
35106D
|
35106D
35106-48011 Pan Sub-Assy, Automatic Transaxle Oil[05.2006 - 07.2007] GSV40 |
35106-48011 |
from US $60.48 |
||
|
35106D
|
35106D
35106-33061
Pan Sub-Assy, Automatic Transaxle Oil
[07.2007 - 08.2009] GSV40 |
35106-33061 |
— | ||
| replacement | |||||
|
35106D
|
35106D
35106-48011 Pan Sub-Assy, Automatic Transaxle Oil[07.2007 - 08.2009] GSV40 |
35106-48011 |
from US $60.48 |
||
|
35106E
|
35106E
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[05.2006 - 08.2009] GSV40 |
90119-06173 |
from US $0.74 |
||
|
35106S
|
35106S
90253-11007
Pin, Ring (For Transaxle Case)
[05.2006 - 08.2009] GSV40 |
90253-11007 |
— | ||
|
35111F
|
35111F
90105-08432 Bolt (For Transaxle Housing & Transaxle Case Setting)[05.2006 - 08.2009] GSV40 *8-1.25PX45-22,NO.1 |
90105-08432 |
US $1.31 |
||
|
35111F
|
35111F
91551-10845 Bolt (For Transaxle Housing & Transaxle Case Setting)[05.2006 - 08.2009] GSV40 *8-1.25PX45-22,NO.2 |
91551-10845 |
US $1.31 |
||
|
35125C
|
35125C
35125-33130 Tube, Transmission Oil Filler, No.1[05.2006 - 08.2009] GSV40 |
35125-33130 |
from US $1.84 |
||
|
35145C
|
35145C
35145-33010 Gasket, Transaxle Case[05.2006 - 08.2009] GSV40 |
35145-33010 |
US $6.45 |
||
|
35163A
|
35163A
35163-33010 Plate, Transaxle Rear Cover[05.2006 - 08.2009] GSV40 |
35163-33010 |
US $3.06 |
||
|
35163B
|
35163B
90148-60055 Screw, Hex Lobular(For Transaxle Rear Cover Plate)[05.2006 - 08.2009] GSV40 |
90148-60055 |
US $0.73 |
||
|
35168A
|
35168A
35168-33080 Gasket, Automatic Transaxle Oil Pan[05.2006 - 08.2009] GSV40 |
35168-33080 |
from US $8.85 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[05.2006 - 08.2009] GSV40 |
35394-30011 |
from US $5.43 |
||
|
9011908C73
|
9011908C73
90119-08C73
New Genuine Part
|
90119-08C73 |
— | ||
|
9094901C99
|
9094901C99
90949-01C99 Clip, Radiator Hose, No.5 |
90949-01C99 |
US $1.31 |
||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $0.82 |
||
