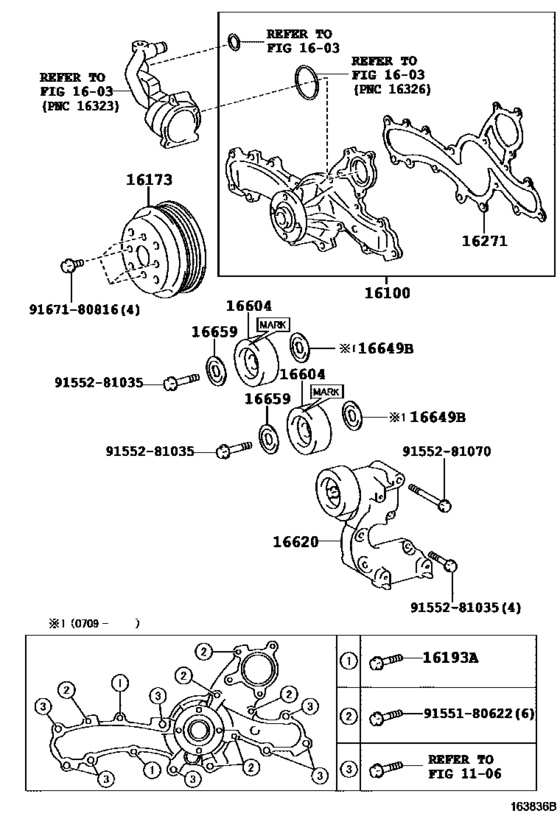

Water Pump ([05.2006 - ] (0605- )2GRFE) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-39455 Pump Assy, Engine Water[05.2006 - 03.2009] 2GRFE..GSV40 |
16100-39455 |
US $246.36 |
||
| replacement | |||||
|
16100
|
16100
16100-39456 Pump Assy, Engine WaterWATER [05.2006 - 03.2009] 2GRFE..GSV40 |
16100-39456 |
from US $162.55 |
||
|
16100
|
16100
16100-39456 Pump Assy, Engine WaterWATER [03.2009 - 08.2009] 2GRFE..GSV40 |
16100-39456 |
from US $162.55 |
||
|
16173
|
16173
16173-31010 Pulley, Water Pump[05.2006 - 08.2009] 2GRFE..GSV40 |
16173-31010 |
from US $39.51 |
||
|
16193A
|
16193A
16193-31080 Bolt(For Water Pump Cover)[05.2006 - 08.2009] 2GRFE..GSV40 |
16193-31080 |
US $3.76 |
||
|
16271
|
16271
16271-31030 Gasket, Water Pump[05.2006 - 08.2009] 2GRFE..GSV40 |
16271-31030 |
from US $6.35 |
||
|
16604
|
16604
16604-31010 Pulley Sub-Assy, Idler, No.2[05.2006 - 09.2007] 2GRFE..GSV40 |
16604-31010 |
from US $40.47 |
||
|
16604
|
16604
16604-31020 Pulley Sub-Assy, Idler, No.2[09.2007 - 08.2009] 2GRFE..GSV40 |
16604-31020 |
from US $40.20 |
||
|
16620
|
16620
16620-31040 Tensioner Assy, V-Ribbed Belt[05.2006 - 08.2009] 2GRFE..GSV40 |
16620-31040 |
from US $178.87 |
||
|
16649B
|
16649B
16649-31020 Plate, Idler Pulley Cover[09.2007 - 08.2009] 2GRFE..GSV40 |
16649-31020 |
from US $1.75 |
||
|
16659
|
16659
16659-31011 Plate, Idler Pulley Cover, No.2[05.2006 - 08.2009] 2GRFE..GSV40 |
16659-31011 |
from US $1.79 |
||
|
9155180622
|
9155180622
91551-80622 BOLT FLANGE |
91551-80622 |
US $1.08 |
||
|
9155281035
|
9155281035
91552-81035 BOLT |
91552-81035 |
from US $1.12 |
||
|
9155281070
|
9155281070
91552-81070 Bolt(For Alternator) |
91552-81070 |
from US $1.48 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.78 |
||
