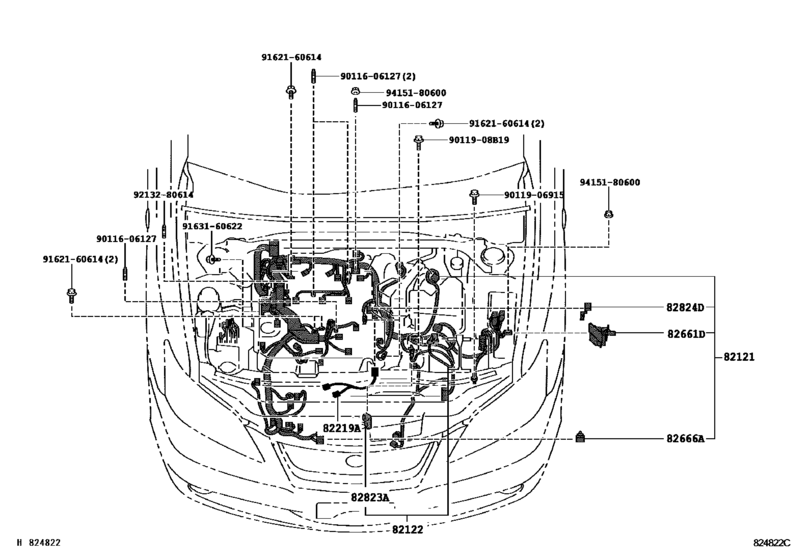

Wiring & Clamp ([05.2006 - ] ENGINE (0605- )GSV40) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- CHI
- Model
- ES350
- From
- 07.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-33B81
Wire, Engine
[07.2006 - 08.2009] GSV40..CHI |
82121-33B81 |
— | ||
|
82121
|
82121
82121-33B82
Wire, Engine
[08.2010 -] GSV40..CHI |
82121-33B82 |
— | ||
|
82122
|
82122
82122-33080 Wire, Engine, No.2[05.2006 - 08.2009] GSV40 |
82122-33080 |
US $101.92 |
||
|
82219A
|
82219A
82219-41010 Wire, Sensor[05.2006 - 08.2009] GSV40 |
82219-41010 |
US $12.66 |
||
|
82661D
|
82661D
82661-33010 Cover, Relay Block, Side No.1[05.2006 - 08.2009] GSV40 |
82661-33010 |
US $9.17 |
||
|
82666A
|
82666A
82666-43040 Holder, Connector No.2[05.2006 - 08.2009] GSV40 |
82666-43040 |
US $2.62 |
||
|
82823A
|
82823A
82823-12090 Cap, Terminal, No.1[05.2006 - 08.2009] GSV40 |
82823-12090 |
US $11.15 |
||
|
82824D
|
82824D
82824-48020 Connector, Wiring Harness[05.2006 - 08.2009] GSV40 |
82824-48020 |
from US $23.75 |
||
|
9011908B19
|
9011908B19
90119-08B19 New Genuine Part |
90119-08B19 |
US $1.02 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.91 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9163160622
|
9163160622
91631-60622 Screw |
91631-60622 |
US $1.25 |
||
|
9213280614
|
9213280614
92132-80614 New Genuine Part |
92132-80614 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
