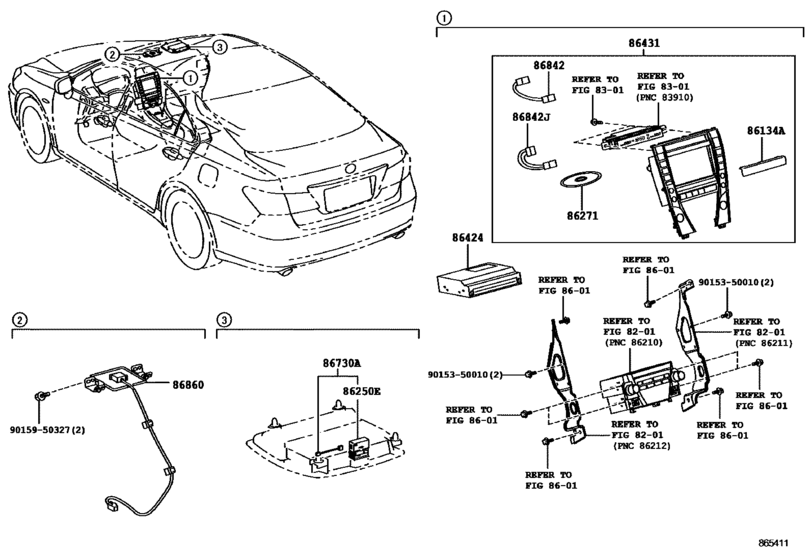

Navigation & Front Monitor Display ([08.2009 - ] DVD NAVIGATION (0908- )GCC) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- GCC
- Model
- ES350
- From
- 05.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86134A
|
86134A
86134-33040
Parts, Multi-Display
[05.2006 - 08.2009] GSV40 AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40 AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86134-33040 |
— | ||
|
86250E
|
86250E
86250-52030 Microphone Assy, Amplifier[05.2006 - 08.2009] GSV40 AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40 AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86250-52030 |
US $61.44 |
||
|
86271
|
86271
86271-33060
Disc, Disc Player
[05.2006 - 08.2006] GSV40..GCC AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40..GCC AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86271-33060 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-24033
DISC SET DVD-ROM
[05.2006 - 08.2006] GSV40..GCC AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40..GCC AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86807-24033 |
— | ||
|
86271
|
86271
86271-33061
Disc, Disc Player
[08.2006 - 07.2007] GSV40..GCC AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40..GCC AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86271-33061 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-24033
DISC SET DVD-ROM
[08.2006 - 07.2007] GSV40..GCC AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40..GCC AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86807-24033 |
— | ||
|
86271
|
86271
86271-33062
Disc, Disc Player
[07.2007 - 08.2008] GSV40..GCC AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40..GCC AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86271-33062 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-24033
DISC SET DVD-ROM
[07.2007 - 08.2008] GSV40..GCC AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40..GCC AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86807-24033 |
— | ||
|
86271
|
86271
86271-33063
Disc, Disc Player
[08.2008 - 07.2009] GSV40..GCC AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40..GCC AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86271-33063 |
— | ||
| replacement | |||||
|
86271
|
86271
86807-24033
DISC SET DVD-ROM
[08.2008 - 07.2009] GSV40..GCC AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40..GCC AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86807-24033 |
— | ||
|
86271
|
86271
86271-48092
Disc, Disc Player
[08.2009 - 08.2010] GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86271-48092 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-48186
DISC, DISC PLAYER
[08.2009 - 08.2010] GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86271-48186 |
— | ||
|
86271
|
86271
86271-48181
Disc, Disc Player
[08.2010 - 06.2012] GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86271-48181 |
— | ||
| replacement | |||||
|
86271
|
86271
86271-48186
DISC, DISC PLAYER
[08.2010 - 06.2012] GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86271-48186 |
— | ||
|
86424
|
86424
86424-53010
Deck, Dvd
[08.2009 - 06.2012] GSV40..CHI TAIWAN SPEC; GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86424-53010 |
— | ||
|
86431
|
86431
86431-33021-E0
Display, Display & Navigation Module
[08.2009 - 07.2010] GSV40..GCC FUJITSU TEN,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,MD.BROWN,TRIM00,10,20; GSV40..GCC FUJITSU TEN,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,MD.BROWN,TRIM00,10,20 |
86431-33021-E0 |
— | ||
| replacement | |||||
|
86431
|
86431
86431-33024-E0
Display, Display & Navigation Module
[08.2009 - 07.2010] GSV40..GCC FUJITSU TEN,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,MD.BROWN,TRIM00,10,20; GSV40..GCC FUJITSU TEN,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,MD.BROWN,TRIM00,10,20 |
86431-33024-E0 |
— | ||
|
86431
|
86431
86431-33021-E1
Display, Display & Navigation Module
[08.2009 - 07.2010] GSV40..GCC FUJITSU TEN,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,DK.BROWN,TRIM01,11,21; GSV40..GCC FUJITSU TEN,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,DK.BROWN,TRIM01,11,21 |
86431-33021-E1 |
— | ||
| replacement | |||||
|
86431
|
86431
86431-33024-E1
Display, Display & Navigation Module
[08.2009 - 07.2010] GSV40..GCC FUJITSU TEN,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,DK.BROWN,TRIM01,11,21; GSV40..GCC FUJITSU TEN,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,DK.BROWN,TRIM01,11,21 |
86431-33024-E1 |
— | ||
|
86431
|
86431
86431-33023-E0
Display, Display & Navigation Module
[08.2010 - 09.2011] GSV40..GCC FUJITSU TEN,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,MD.BROWN,TRIM00,10,20; GSV40..GCC FUJITSU TEN,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,MD.BROWN,TRIM00,10,20 |
86431-33023-E0 |
— | ||
| replacement | |||||
|
86431
|
86431
86431-33024-E0
Display, Display & Navigation Module
[08.2010 - 09.2011] GSV40..GCC FUJITSU TEN,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,MD.BROWN,TRIM00,10,20; GSV40..GCC FUJITSU TEN,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,MD.BROWN,TRIM00,10,20 |
86431-33024-E0 |
— | ||
|
86431
|
86431
86431-33023-E1
Display, Display & Navigation Module
[08.2010 - 09.2011] GSV40..GCC FUJITSU TEN,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,DK.BROWN,TRIM01,11,21; GSV40..GCC FUJITSU TEN,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,DK.BROWN,TRIM01,11,21 |
86431-33023-E1 |
— | ||
| replacement | |||||
|
86431
|
86431
86431-33024-E1
Display, Display & Navigation Module
[08.2010 - 09.2011] GSV40..GCC FUJITSU TEN,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,DK.BROWN,TRIM01,11,21; GSV40..GCC FUJITSU TEN,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,DK.BROWN,TRIM01,11,21 |
86431-33024-E1 |
— | ||
|
86431
|
86431
86431-33080-E0
Display, Display & Navigation Module
[09.2011 - 05.2012] GSV40..GCC FUJITSU TEN,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,MD.BROWN,TRIM00,10,20; GSV40..GCC FUJITSU TEN,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,MD.BROWN,TRIM00,10,20 |
86431-33080-E0 |
— | ||
| replacement | |||||
|
86431
|
86431
86431-33081-E0
Display, Display & Navigation Module
[09.2011 - 05.2012] GSV40..GCC FUJITSU TEN,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,MD.BROWN,TRIM00,10,20; GSV40..GCC FUJITSU TEN,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,MD.BROWN,TRIM00,10,20 |
86431-33081-E0 |
— | ||
|
86431
|
86431
86431-33080-E1
Display, Display & Navigation Module
[09.2011 - 05.2012] GSV40..GCC FUJITSU TEN,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,DK.BROWN,TRIM01,11,21; GSV40..GCC FUJITSU TEN,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,DK.BROWN,TRIM01,11,21 |
86431-33080-E1 |
— | ||
| replacement | |||||
|
86431
|
86431
86431-33081-E1
Display, Display & Navigation Module
[09.2011 - 05.2012] GSV40..GCC FUJITSU TEN,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,DK.BROWN,TRIM01,11,21; GSV40..GCC FUJITSU TEN,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,DK.BROWN,TRIM01,11,21 |
86431-33081-E1 |
— | ||
|
86730A
|
86730A
86730-33100
Microphone Assy, Telephone
[08.2009 - 06.2012] GSV40..CHI; GSV40..CHI TAIWAN SPEC&AUDIO-AM/FM 6CD-CHANGER 8SP; GSV40..CHI AUDIO-AM/FM 6CD-CHANGER 8SP; ACV40;GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; ACV40;GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86730-33100 |
— | ||
|
86730A
|
86730A
86730-42020
Microphone Assy, Telephone
[05.2006 - 08.2009] GSV40 AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40 AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86730-42020 |
— | ||
|
86842
|
86842
86842-53080
Wire, Navigation, No.1
[08.2009 - 06.2012] GSV40..CHI TAIWAN SPEC; GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86842-53080 |
— | ||
|
86842J
|
86842J
86842-53090
Wire, Navigation, No.1
[08.2009 - 06.2012] GSV40..CHI TAIWAN SPEC; GSV40..GCC AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; GSV40..GCC AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP |
86842-53090 |
— | ||
|
86860
|
86860
86860-33100
Antenna Assy, Navigation
[05.2006 - 08.2009] GSV40 AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER; GSV40 AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON |
86860-33100 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.70 |
||
