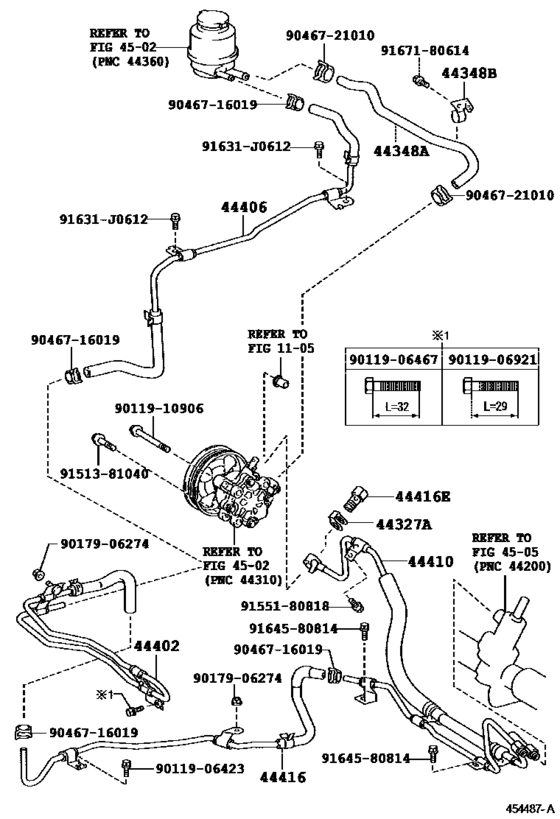

Power Steering Tube ([05.2006 - ] (0605- )GCC) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- GCC
- Model
- ES350
- From
- 05.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30030 Gasket(For Pressure Hose)[05.2006 - 08.2009] GSV40 |
44327-30030 |
from US $1.90 |
||
|
44348A
|
44348A
44348-33250 Hose, Oil Reservoir To Pump, No.1OIL RESERVOIR TO PUMP, NO.1 [05.2006 - 10.2006] GSV40 |
44348-33250 |
from US $67.32 |
||
|
44348A
|
44348A
44348-33260 Hose, Oil Reservoir To Pump, No.1OIL RESERVOIR TO PUMP, NO.1 [11.2006 - 07.2007] GSV40 |
44348-33260 |
US $90.44 |
||
|
44348B
|
44348B
44349-41010 Clamp(For Oil Reservoir To Pump Hose)[05.2006 - 08.2009] GSV40 |
44349-41010 |
US $5.10 |
||
|
44402
|
44402
44402-33110 Cooler Sub-Assy, Power Steering Oil, No.1[05.2006 - 07.2006] GSV40 |
44402-33110 |
US $104.83 |
||
| replacement | |||||
|
44402
|
44402
44402-33H00 Cooler Sub-Assy, Power Steering Oil, No.1[05.2006 - 07.2006] GSV40 |
44402-33H00 |
US $122.30 |
||
|
44402
|
44402
44402-33111 Cooler Sub-Assy, Power Steering Oil, No.1[07.2006 - 05.2007] GSV40..GCC |
44402-33111 |
US $104.83 |
||
| replacement | |||||
|
44402
|
44402
44402-33112 Cooler Sub-Assy, Power Steering Oil, No.1[07.2006 - 05.2007] GSV40..GCC |
44402-33112 |
from US $85.90 |
||
|
44402
|
44402
44402-33112 Cooler Sub-Assy, Power Steering Oil, No.1[06.2007 - 08.2009] GSV40..GCC |
44402-33112 |
from US $85.90 |
||
|
44406
|
44406
44406-33110 Tube Sub-Assy, Return[05.2006 - 08.2009] GSV40..GCC |
44406-33110 |
from US $57.37 |
||
|
44410
|
44410
44410-33240
Tube Assy, Pressure Feed
[05.2006 - 01.2009] GSV40 |
44410-33240 |
— | ||
| replacement | |||||
|
44410
|
44410
44410-33242 Tube Assy, Pressure FeedPRESSURE FEED [05.2006 - 01.2009] GSV40 |
44410-33242 |
US $212.21 |
||
|
44410
|
44410
44410-33241
Tube Assy, Pressure Feed
[02.2009 - 04.2009] GSV40 |
44410-33241 |
— | ||
| replacement | |||||
|
44410
|
44410
44410-33242 Tube Assy, Pressure FeedPRESSURE FEED [02.2009 - 04.2009] GSV40 |
44410-33242 |
US $212.21 |
||
|
44410
|
44410
44410-33242 Tube Assy, Pressure FeedPRESSURE FEED [05.2009 - 08.2009] GSV40 |
44410-33242 |
US $212.21 |
||
|
44416
|
44416
44416-33210
Tube, Return(For Steering Gear Outlet)
[05.2006 - 07.2006] GSV40 |
44416-33210 |
— | ||
| replacement | |||||
|
44416
|
44416
44416-33211 Tube, Return(For Steering Gear Outlet)[05.2006 - 07.2006] GSV40 |
44416-33211 |
from US $83.64 |
||
|
44416
|
44416
44416-33211 Tube, Return(For Steering Gear Outlet)[07.2006 - 08.2009] GSV40 |
44416-33211 |
from US $83.64 |
||
|
44416E
|
44416E
96341-41603 Bolt, Union(For Rear Stabilizer Contorol Tube)[05.2006 - 08.2009] GSV40 |
96341-41603 |
US $5.56 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9011906467
|
9011906467
90119-06467 BOLT WWASHER |
90119-06467 |
US $2.87 |
||
|
9011906921
|
9011906921
90119-06921 New Genuine Part |
90119-06921 |
US $1.46 |
||
|
9011910906
|
9011910906
90119-10906 New Genuine Part |
90119-10906 |
US $3.03 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.34 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.43 |
||
|
9151381040
|
9151381040
91513-81040 New Genuine Part |
91513-81040 |
US $0.73 |
||
|
9155180818
|
9155180818
91551-80818 Bolt, Union(For Clutch Master Cylinder) |
91551-80818 |
US $1.43 |
||
|
9164580814
|
9164580814
91645-80814 New Genuine Part |
91645-80814 |
US $1.46 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
