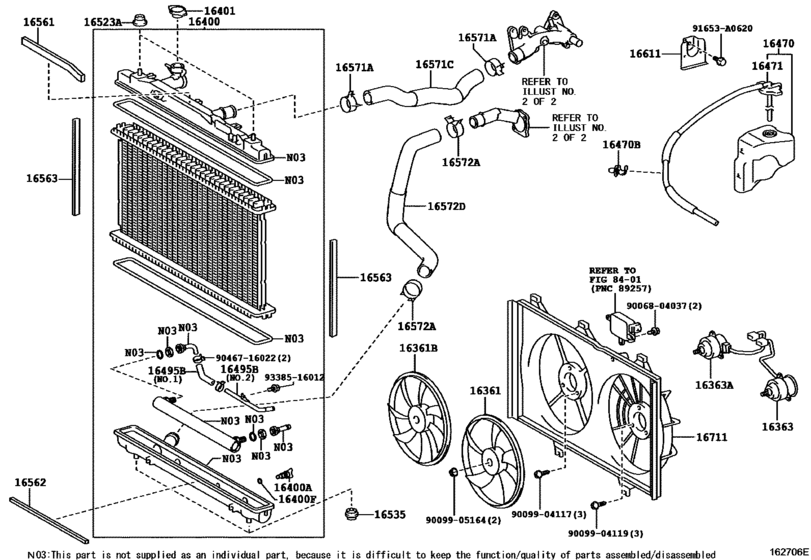

Radiator & Water Outlet ([05.2006 - ] (0605- )2GRFE..GCC) Diagram Toyota LEXUS ES
- Year
- 2006 - 2012
- Sales region
- General
- Frame
- GSV40
- ENGINE
- 2GRFE
- DESTINATION
- GCC
- Model
- ES350
- From
- 05.2006
- To
- 06.2012
- Vehicle Model
- ES350
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-31180
Fan
[05.2006 - 08.2009] 2GRFE..GSV40..GCC |
16361-31180 |
— | ||
|
16361B
|
16361B
16361-31130
Fan, No.2
[05.2006 - 08.2009] 2GRFE..GSV40 |
16361-31130 |
— | ||
|
16363
|
16363
16363-20270 Motor, Cooling Fan[05.2006 - 08.2009] 2GRFE..GSV40..GCC |
16363-20270 |
from US $173.30 |
||
|
16363A
|
16363A
16363-31090 Motor, Cooling Fan, No.2COOLING FAN, NO.2 [05.2006 - 08.2009] 2GRFE..GSV40 |
16363-31090 |
US $184.17 |
||
|
16400
|
16400
16400-31470 Radiator Assy[05.2006 - 08.2009] 2GRFE..GSV40..GCC |
16400-31470 |
US $1,085.45 |
||
|
16400A
|
16400A
16417-21280 Cock Sub-Assy, Radiator Drain[05.2006 - 08.2009] 2GRFE..GSV40 |
16417-21280 |
from US $3.40 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[05.2006 - 08.2009] 2GRFE..GSV40 |
16492-21050 |
from US $2.11 |
||
|
16401
|
16401
16401-28430
Cap Sub-Assy, Radiator
[05.2006 - 06.2007] 2GRFE..GSV40 |
16401-28430 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-31480 Cap Sub-Assy, Radiator[05.2006 - 06.2007] 2GRFE..GSV40 |
16401-31480 |
from US $16.31 |
||
|
16401
|
16401
16401-31480 Cap Sub-Assy, Radiator[07.2007 - 08.2009] 2GRFE..GSV40 |
16401-31480 |
from US $16.31 |
||
|
16470
|
16470
16470-28100 Tank Assy, Radiator Reserve[05.2006 - 08.2009] 2GRFE..GSV40 |
16470-28100 |
from US $37.56 |
||
|
16470B
|
16470B
90469-12014 Clamp Or Clip(For Radiator Reserve Tank Hose)[05.2006 - 08.2009] 2GRFE..GSV40 |
90469-12014 |
US $1.97 |
||
|
16471
|
16471
16405-28070 Cap Sub-Assy, Reserve Tank[05.2006 - 08.2009] 2GRFE..GSV40 |
16405-28070 |
US $19.30 |
||
|
16495B
|
16495B
16492-31470
Hose, Radiator Tank
[05.2006 - 08.2009] 2GRFE..GSV40..GCC NO.1 |
16492-31470 |
— | ||
|
16495B
|
16495B
16495-31470
Pipe (For Atm Oil Cooler)
[05.2006 - 08.2009] 2GRFE..GSV40..GCC NO.2 |
16495-31470 |
— | ||
|
16523A
|
16523A
16523-20020 Cushion, Radiator Support[05.2006 - 08.2009] 2GRFE..GSV40 |
16523-20020 |
from US $5.89 |
||
|
16535
|
16535
16535-20010 Support, Radiator, Lower[05.2006 - 08.2009] 2GRFE..GSV40 |
16535-20010 |
from US $6.21 |
||
|
16561
|
16561
16561-31010
Seal, Radiator To Support, No.1
[05.2006 - 08.2009] 2GRFE..GSV40 |
16561-31010 |
— | ||
|
16562
|
16562
16562-31010
Seal, Radiator To Support, No.2
[05.2006 - 08.2009] 2GRFE..GSV40 |
16562-31010 |
— | ||
|
16563
|
16563
16563-31010
Seal, Radiator To Support, No.3
[05.2006 - 08.2009] 2GRFE..GSV40..GCC |
16563-31010 |
— | ||
|
16571A
|
16571A
90466-35001 Clamp Or Clip, Hose(For Radiator Inlet)[05.2006 - 08.2009] 2GRFE..GSV40 |
90466-35001 |
from US $5.38 |
||
|
16571C
|
16571C
16571-31180 Hose, Radiator, InletRADIATOR, INLET [05.2006 - 08.2009] 2GRFE..GSV40 |
16571-31180 |
from US $25.31 |
||
|
16572A
|
16572A
90466-35001 Clamp Or Clip, Hose(For Radiator Inlet)[05.2006 - 08.2009] 2GRFE..GSV40 |
90466-35001 |
from US $5.38 |
||
|
16572D
|
16572D
16572-31200 Hose, Radiator, OutletRADIATOR, OUTLET [05.2006 - 08.2009] 2GRFE..GSV40 |
16572-31200 |
from US $24.74 |
||
|
16611
|
16611
16611-28010 Bracket, Radiator Reserve Tank[05.2006 - 08.2009] 2GRFE..GSV40 |
16611-28010 |
US $12 |
||
|
16711
|
16711
16711-31280
Shroud, Fan
[05.2006 - 08.2009] 2GRFE..GSV40..GCC |
16711-31280 |
— | ||
|
91653A0620
|
91653A0620
91653-A0620 New Genuine Part |
91653-A0620 |
US $1.08 |
||
|
9006804037
|
9006804037
90068-04037
BOLT
|
90068-04037 |
— | ||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
from US $0.61 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.55 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9046716022
|
9046716022
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
from US $2.26 |
||
|
9338516012
|
9338516012
93385-16012 New Genuine Part |
93385-16012 |
US $0.96 |
||
