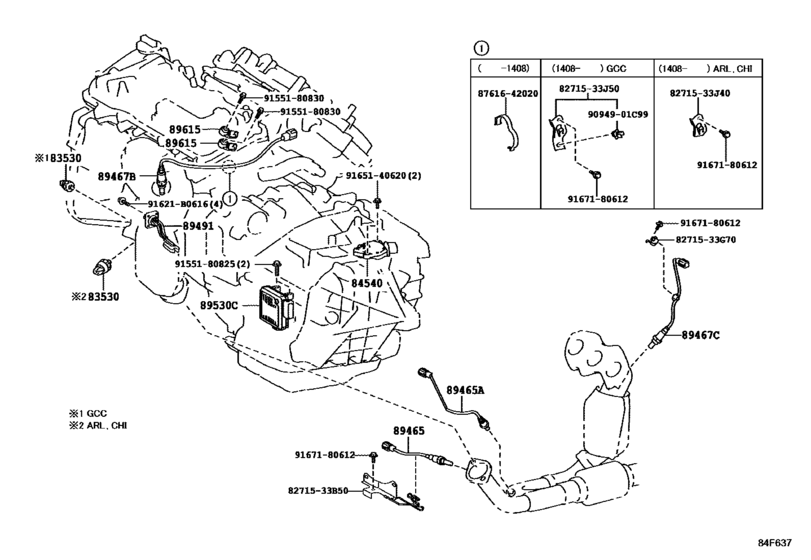

Switch & Relay & Computer ([06.2012 - ] ENGINE & TRANSMISSION (1206- )GSV60) Diagram Toyota LEXUS ES
- Year
- 2012 - 2018
- Sales region
- General
- Frame
- GSV60
- body
- SED
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- ES350
- From
- 06.2012
- Gear Shift Type
- 6FC
- No.of Doors
- 4D
- Vehicle Model
- ES350
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[06.2012 - 07.2015] ASV60,AVV60,GSV60 DENSO |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [06.2012 - 07.2015] ASV60,AVV60,GSV60 DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[06.2012 - 07.2015] ASV60,AVV60,GSV60 DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [06.2012 - 07.2015] ASV60,AVV60,GSV60 YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-33010 Switch Assy, Neutral Start[06.2012 - 07.2015] ASV60,GSV60 |
84540-33010 |
from US $112.48 |
||
|
89465
|
89465
89465-33360 Sensor, OxygenOXYGEN [06.2012 - 07.2015] GSV60 |
89465-33360 |
from US $139.12 |
||
|
89465A
|
89465A
89465-33420 Sensor, OxygenOXYGEN [06.2012 - 07.2015] GSV60 |
89465-33420 |
from US $139.12 |
||
|
89467B
|
89467B
89467-33220 Sensor, Air Fuel Ratio[06.2012 - 08.2014] GSV60 |
89467-33220 |
US $180.88 |
||
|
89467B
|
89467B
89467-48220 Sensor, Air Fuel Ratio, No.2[08.2014 - 07.2015] GSV60 |
89467-48220 |
from US $132.50 |
||
|
89467C
|
89467C
89467-33230 Sensor, Air Fuel Ratio[06.2012 - 07.2015] GSV60 |
89467-33230 |
US $202.41 |
||
|
89491
|
89491
89491-48010
Sensor, Engine Oil Level
[06.2012 - 07.2015] GSV60 |
89491-48010 |
— | ||
|
89530C
|
89530C
89530-33310
Computer Assy, Transmission Control
[06.2012 - 07.2015] GSV60..GCC |
89530-33310 |
— | ||
|
89530C
|
89530C
89530-33360
Computer Assy, Transmission Control
[07.2015 -] GSV60..GCC |
89530-33360 |
— | ||
|
89615
|
89615
89615-20090 Sensor, Knock Control[06.2012 - 07.2015] GSV60 |
89615-20090 |
from US $36.02 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.94 |
||
|
8271533B50
|
8271533B50
82715-33B50 Bracket,wiring Harness Clamp |
82715-33B50 |
US $6.55 |
||
|
8271533G70
|
8271533G70
82715-33G70
Bracket,wiring Harness Clamp
|
82715-33G70 |
— | ||
|
8271533J40
|
8271533J40
82715-33J40
Bracket,wiring Harness Clamp
|
82715-33J40 |
— | ||
|
8271533J50
|
8271533J50
82715-33J50
Bracket,wiring Harness Clamp
|
82715-33J50 |
— | ||
|
9094901C99
|
9094901C99
90949-01C99 Clip, Radiator Hose, No.5 |
90949-01C99 |
US $1.31 |
||
|
8761642020
|
8761642020
87616-42020 Clamp, Cooling Unit Case |
87616-42020 |
US $4.16 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.88 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
