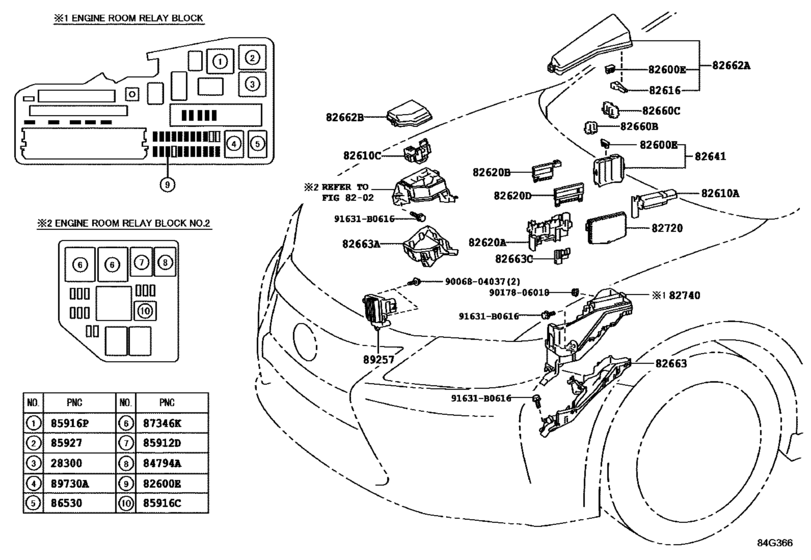

Switch & Relay & Computer ([10.2015 - ] ENGINE ROOM (1510- )) Diagram Toyota LEXUS ES
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- GSV60
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- ES350
- From
- 10.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- ES350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-0A010
Relay Assy, Starter
[10.2015 - 11.2015] 2GRFE..GSV60 |
28300-0A010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-0A011 Relay Assy, Starter[10.2015 - 11.2015] 2GRFE..GSV60 |
28300-0A011 |
from US $38.73 |
||
|
28300
|
28300
28300-0A011 Relay Assy, Starter[12.2015 -] 2GRFE..GSV60 |
28300-0A011 |
from US $38.73 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[10.2015 -] GSV60 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[10.2015 -] GSV60 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[10.2015 -] GSV60 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[10.2015 -] GSV60 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[10.2015 -] GSV60 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[10.2015 -] GSV60 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[10.2015 -] GSV60 30A,MINI FUSE |
90982-09025 |
from US $0.88 |
||
|
82610A
|
82610A
82610-33090 Block Assy, Fuse[10.2015 -] GSV60 |
82610-33090 |
US $20.53 |
||
|
82610C
|
82610C
82610-33100 Block Assy, Fuse[10.2015 -] GSV60 |
82610-33100 |
US $23.73 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[10.2015 -] GSV60 |
82616-58010 |
from US $2.40 |
||
|
82620A
|
82620A
82620-33050 Block Assy, Fusible Link[10.2015 -] GSV60 |
82620-33050 |
US $52.85 |
||
|
82620B
|
82620B
82620-33070 Block Assy, Fusible Link[10.2015 -] GSV60 |
82620-33070 |
from US $11.17 |
||
|
82620D
|
82620D
82620-33080 Block Assy, Fusible Link[10.2015 -] GSV60 |
82620-33080 |
US $24.57 |
||
|
82641
|
82641
82641-33160 Relay, Integration No.1[10.2015 -] GSV60 |
82641-33160 |
US $99.31 |
||
|
82660B
|
82660B
82660-48030 Block Assy, RelayRELAY [10.2015 -] GSV60 |
82660-48030 |
from US $5.82 |
||
|
82660C
|
82660C
82660-33050
Block Assy, Relay
[10.2015 -] GSV60 |
82660-33050 |
— | ||
|
82662A
|
82662A
82662-33530 Cover, Relay Block, Upper, No.1[10.2015 -] GSV60 |
82662-33530 |
US $42 |
||
|
82662B
|
82662B
82662-33A00
Cover, Relay Block, Upper, No.2
[10.2015 -] GSV60 |
82662-33A00 |
— | ||
|
82663
|
82663
82663-33110 Cover, Relay Block, Lower[10.2015 -] GSV60 |
82663-33110 |
US $38.67 |
||
|
82663A
|
82663A
82663-33200
Cover, Relay Block, Lower, No.2
[10.2015 -] GSV60 |
82663-33200 |
— | ||
|
82663C
|
82663C
82663-33170 Cover, Relay Block, Lower, No.3[10.2015 -] GSV60 |
82663-33170 |
from US $2.62 |
||
|
82720
|
82720
82720-33381
Block Assy, Engine Room Junction
[10.2015 - 09.2016] GSV60 |
82720-33381 |
— | ||
|
82720
|
82720
82720-33392 Block Assy, Engine Room Junction[10.2015 - 09.2016] GSV60 B PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-HI(LED) & WITH(*AHB); GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-HI(LED) & WITH(*AHB); GSV60 C PACKAGE&PRE-COLLISION SYSTEM-WITH&HEADLAMP-HI(LED) & WITH(AFS & *AHB); GSV60 D PA |
82720-33392 |
US $185 |
||
|
82740
|
82740
82740-33030 Block Assy, Engine Room Relay[10.2015 -] GSV60 |
82740-33030 |
US $108.40 |
||
|
84794A
|
84794A
90080-87026
Relay, Water Pump
[10.2015 -] GSV60 INTERMITTENT WIPER-WITH(AUTO) |
90080-87026 |
— | ||
| replacement | |||||
|
84794A
|
84794A
90987-02027 Relay[10.2015 -] GSV60 INTERMITTENT WIPER-WITH(AUTO) |
90987-02027 |
from US $33.62 |
||
|
85912D
|
85912D
90080-87026
Relay, Water Pump
[10.2015 -] GSV60 PRE-COLLISION SYSTEM-WITH,(L); GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER),(L); GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER),(L) |
90080-87026 |
— | ||
| replacement | |||||
|
85912D
|
85912D
90987-02027 Relay[10.2015 -] GSV60 PRE-COLLISION SYSTEM-WITH,(L); GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER),(L); GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER),(L) |
90987-02027 |
from US $33.62 |
||
|
85912D
|
85912D
90987-02027 Relay[10.2015 -] GSV60 PRE-COLLISION SYSTEM-WITH,(J); GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER),(J); GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER),(J) |
90987-02027 |
from US $33.62 |
||
|
85916C
|
85916C
90080-87026
Relay, Water Pump
[10.2015 -] GSV60 (L) |
90080-87026 |
— | ||
| replacement | |||||
|
85916C
|
85916C
90987-02027 Relay[10.2015 -] GSV60 (L) |
90987-02027 |
from US $33.62 |
||
|
85916C
|
85916C
90987-02027 Relay[10.2015 -] GSV60 (J) |
90987-02027 |
from US $33.62 |
||
|
85916P
|
85916P
90080-87024 Relay, Water PumpIGNITION, NO.1 [10.2015 -] GSV60 |
90080-87024 |
US $63.26 |
||
|
85927
|
85927
90080-87024 Relay, Water PumpIGNITION, NO.1 [10.2015 -] GSV60 |
90080-87024 |
US $63.26 |
||
|
86530
|
86530
90080-87026
Relay, Water Pump
[10.2015 -] GSV60 |
90080-87026 |
— | ||
| replacement | |||||
|
86530
|
86530
90987-02027 Relay[10.2015 -] GSV60 |
90987-02027 |
from US $33.62 |
||
|
87346K
|
87346K
90080-87024 Relay, Water PumpIGNITION, NO.1 [10.2015 -] GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
90080-87024 |
US $63.26 |
||
|
89257
|
89257
89257-30060 Computer, Cooling Fan[10.2015 -] GSV60 |
89257-30060 |
from US $226.08 |
||
|
89730A
|
89730A
90080-87026
Relay, Water Pump
[10.2015 -] GSV60 |
90080-87026 |
— | ||
| replacement | |||||
|
89730A
|
89730A
90987-02027 Relay[10.2015 -] GSV60 |
90987-02027 |
from US $33.62 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.70 |
||
|
9006804037
|
9006804037
90068-04037
BOLT
|
90068-04037 |
— | ||
|
9017806018
|
9017806018
90178-06018 NUT,FLANGE |
90178-06018 |
from US $0.74 |
||
