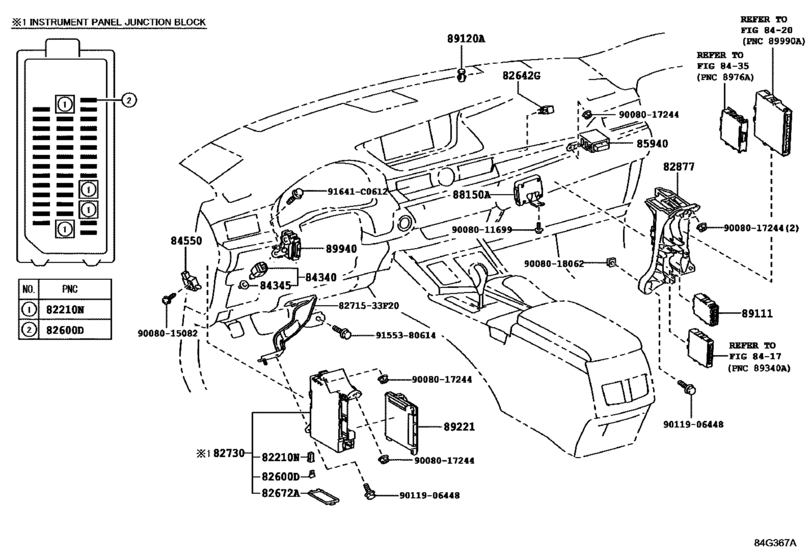

Switch & Relay & Computer ([10.2015 - ] COWL (1510- )) Diagram Toyota LEXUS ES
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- GSV60
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- ES350
- From
- 10.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- ES350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210N
|
82210N
90982-08306 Fusible Link[10.2015 -] GSV60 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[10.2015 -] GSV60 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[10.2015 -] GSV60 7.5A,MINI FUSE |
90982-09020 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[10.2015 -] GSV60 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[10.2015 -] GSV60 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[10.2015 -] GSV60 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[10.2015 -] GSV60 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82642G
|
82642G
90080-87026
Relay, Water Pump
[10.2015 -] GSV60 |
90080-87026 |
— | ||
| replacement | |||||
|
82642G
|
82642G
90987-02027 Relay[10.2015 -] GSV60 |
90987-02027 |
from US $33.62 |
||
|
82672A
|
82672A
82672-33452
Cover, Junction Block
[10.2015 -] GSV60 |
82672-33452 |
— | ||
|
82730
|
82730
82730-33G91
Block Assy, Instrument Panel Junction
[10.2015 -] GSV60 |
82730-33G91 |
— | ||
|
82877
|
82877
82877-06010
Box, Computer Integration, Rh
[10.2015 -] GSV60 |
82877-06010 |
— | ||
|
84340
|
84340
84340-39025 Switch Assy, Stop Lamp[10.2015 -] GSV60 |
84340-39025 |
from US $21.11 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[10.2015 -] GSV60 |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-0E010
Switch Assy, Parking Brake
[10.2015 -] GSV60 |
84550-0E010 |
— | ||
|
85940
|
85940
85940-33170
Relay Assy, Windshield Wiper
[10.2015 -] GSV60 INTERMITTENT WIPER-WITH(AUTO) |
85940-33170 |
— | ||
|
88150A
|
88150A
88150-06010
Computer Assy, Driving Support
[10.2015 - 09.2016] GSV60 PRE-COLLISION SYSTEM-WITH |
88150-06010 |
— | ||
|
88150A
|
88150A
88150-06011
Computer Assy, Driving Support
[09.2016 - 09.2017] GSV60 PRE-COLLISION SYSTEM-WITH |
88150-06011 |
— | ||
|
89111
|
89111
89111-33101
Computer, Network Gateway
[10.2015 - 02.2016] GSV60 PRE-COLLISION SYSTEM-WITH; GSV60 PRE-COLLISION SYSTEM-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
89111-33101 |
— | ||
| replacement | |||||
|
89111
|
89111
89111-33102
Computer, Network Gateway
[10.2015 - 02.2016] GSV60 PRE-COLLISION SYSTEM-WITH; GSV60 PRE-COLLISION SYSTEM-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
89111-33102 |
— | ||
|
89111
|
89111
89111-33102
Computer, Network Gateway
[03.2016 -] GSV60 PRE-COLLISION SYSTEM-WITH; GSV60 PRE-COLLISION SYSTEM-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); GSV60 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
89111-33102 |
— | ||
|
89120A
|
89120A
89121-06020
Sensor, Automatic Light Control
[10.2015 -] GSV60 |
89121-06020 |
— | ||
|
89221
|
89221
89220-0W010
Computer, Multiplex Network Body
[10.2015 -] GSV60 HAWAII SPEC&HEADLAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATI ON LAMP); GSV60 HAWAII SPEC&HEADLAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WI TH(ILLUMINATION LAMP); GSV60 HAWAII SPEC&HEADLAMP-HI(LE |
89220-0W010 |
— | ||
|
89221
|
89221
89220-0W020
Computer, Multiplex Network Body
[10.2015 -] GSV60 HAWAII SPEC |
89220-0W020 |
— | ||
|
89221
|
89221
89220-0W030
Computer, Multiplex Network Body
[10.2015 -] GSV60 USA POSSESSION SPEC&HEADLAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(IL LUMINATION LAMP); GSV60 USA POSSESSION SPEC&HEADLAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PA NEL & WITH(ILLUMINATION LAMP); GSV60 PUERTO RIC |
89220-0W030 |
— | ||
|
89221
|
89221
89220-0W040
Computer, Multiplex Network Body
[10.2015 -] GSV60 USA POSSESSION SPEC; GSV60 PUERTO RICO SPEC |
89220-0W040 |
— | ||
|
89221
|
89221
89220-0W050
Computer, Multiplex Network Body
[10.2015 -] GSV60 CANADA SPEC&HEADLAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATI ON LAMP); GSV60 CANADA SPEC&HEADLAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WI TH(ILLUMINATION LAMP) |
89220-0W050 |
— | ||
|
89221
|
89221
89220-0W060
Computer, Multiplex Network Body
[10.2015 -] GSV60 CANADA SPEC |
89220-0W060 |
— | ||
|
89221
|
89221
89220-0W070
Computer, Multiplex Network Body
[10.2015 -] GSV60 HEADLAMP-HI(LED)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINATION LAMP); GSV60 HEADLAMP-HI(LED) & WITH(*AHB)&DOOR TRIM ORNAMENT PANEL-WOOD PANEL & WITH(ILLUMINAT ION LAMP); GSV60 HEADLAMP-HI(LED) & WITH(AFS)&DOOR TRIM ORNAMENT PAN |
89220-0W070 |
— | ||
|
89221
|
89221
89220-0W080
Computer, Multiplex Network Body
[10.2015 -] GSV60 |
89220-0W080 |
— | ||
|
89940
|
89940
89940-33280
Computer Assy, Headlamp Swivel
[10.2015 -] GSV60 HEADLAMP-HI(LED) & WITH(AFS); GSV60 HEADLAMP-HI(LED) & WITH(AFS & *AHB) |
89940-33280 |
— | ||
|
89940
|
89940
89940-33290
Computer Assy, Headlamp Swivel
[10.2015 -] GSV60 HEADLAMP-HI(LED); GSV60 HEADLAMP-HI(LED) & WITH(*AHB) |
89940-33290 |
— | ||
|
91641C0612
|
91641C0612
91641-C0612 New Genuine Part |
91641-C0612 |
US $1.60 |
||
|
8271533F20
|
8271533F20
82715-33F20
Bracket,wiring Harness Clamp
|
82715-33F20 |
— | ||
|
9008011699
|
9008011699
90080-11699
Bolt, W/washer
|
90080-11699 |
— | ||
|
9008015082
|
9008015082
90080-15082
New Genuine Part
|
90080-15082 |
— | ||
|
9008017244
|
9008017244
90080-17244 NUT FLANGE |
90080-17244 |
US $1.70 |
||
|
9008018062
|
9008018062
90080-18062
New Genuine Part
|
90080-18062 |
— | ||
|
9011906448
|
9011906448
90119-06448 Screw(For Steering Column Tube) |
90119-06448 |
US $1.16 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
