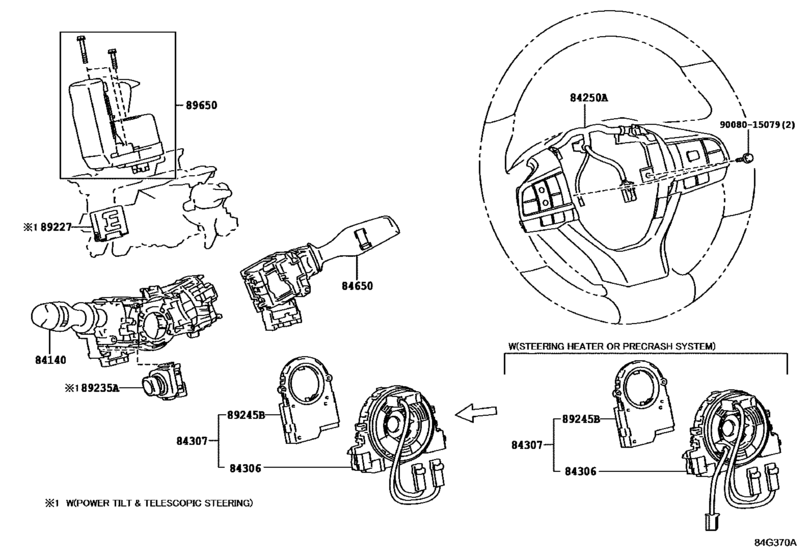

Switch & Relay & Computer ([10.2015 - ] STEERING (1510- )) Diagram Toyota LEXUS ES
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- GSV60
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- ES350
- From
- 10.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- ES350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-0E170
Switch Assy, Headlamp Dimmer
[10.2015 -] GSV60 |
84140-0E170 |
— | ||
|
84140
|
84140
84140-0E180
Switch Assy, Headlamp Dimmer
[10.2015 -] GSV60 CANADA SPEC |
84140-0E180 |
— | ||
|
84250A
|
84250A
84250-06B50
Switch Assy, Steering Pad
[09.2016 -] GSV60 |
84250-06B50 |
— | ||
|
84250A
|
84250A
84250-06B60
Switch Assy, Steering Pad
[09.2016 -] GSV60 PRE-COLLISION SYSTEM-WITH |
84250-06B60 |
— | ||
|
84250A
|
84250A
84250-0E320
Switch Assy, Steering Pad
[10.2015 - 09.2016] GSV60 |
84250-0E320 |
— | ||
|
84250A
|
84250A
84250-0E340
Switch Assy, Steering Pad
[10.2015 - 09.2016] GSV60 PRE-COLLISION SYSTEM-WITH |
84250-0E340 |
— | ||
|
84306
|
84306
84308-06010
Cable Sub-Assy, Spiral
[09.2016 -] GSV60 PRE-COLLISION SYSTEM-WITH; GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER); GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
84308-06010 |
— | ||
|
84306
|
84306
84308-06020
Cable Sub-Assy, Spiral
[09.2016 -] GSV60 |
84308-06020 |
— | ||
|
84306
|
84306
84308-0E100
Cable Sub-Assy, Spiral
[10.2015 - 09.2016] GSV60 PRE-COLLISION SYSTEM-WITH; GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER); GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
84308-0E100 |
— | ||
|
84306
|
84306
84308-0E110
Cable Sub-Assy, Spiral
[10.2015 - 09.2016] GSV60 |
84308-0E110 |
— | ||
|
84307
|
84307
84307-06200
Cable Sub-Assy, Spiral W/sensor
[09.2016 -] GSV60 PRE-COLLISION SYSTEM-WITH; GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER); GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
84307-06200 |
— | ||
|
84307
|
84307
84307-06210
Cable Sub-Assy, Spiral W/sensor
[09.2016 -] GSV60 |
84307-06210 |
— | ||
|
84307
|
84307
84307-0E200
Cable Sub-Assy, Spiral W/sensor
[10.2015 - 09.2016] GSV60 PRE-COLLISION SYSTEM-WITH; GSV60 PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER); GSV60 STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER) |
84307-0E200 |
— | ||
|
84307
|
84307
84307-0E210
Cable Sub-Assy, Spiral W/sensor
[10.2015 - 09.2016] GSV60 |
84307-0E210 |
— | ||
|
84650
|
84650
84652-06360
Switch Assy, Windshield Wiper
[10.2015 -] GSV60 CANADA SPEC&INTERMITTENT WIPER-WITH(AUTO) |
84652-06360 |
— | ||
|
84650
|
84650
84652-06370
Switch Assy, Windshield Wiper
[10.2015 -] GSV60 CANADA SPEC |
84652-06370 |
— | ||
|
84650
|
84650
84652-06380
Switch Assy, Windshield Wiper
[10.2015 -] GSV60 INTERMITTENT WIPER-WITH(AUTO) |
84652-06380 |
— | ||
|
84650
|
84650
84652-06390
Switch Assy, Windshield Wiper
[10.2015 -] GSV60 |
84652-06390 |
— | ||
|
89227
|
89227
89227-33040
Computer, Multiplex Tilt & Telescopic
[10.2015 -] GSV60 B PACKAGE; GSV60 C PACKAGE; GSV60 D PACKAGE |
89227-33040 |
— | ||
|
89235A
|
89235A
89235-33010 Switch, Tilt & Telescopic[10.2015 -] GSV60 B PACKAGE; GSV60 C PACKAGE; GSV60 D PACKAGE |
89235-33010 |
US $35.26 |
||
|
89245B
|
89245B
8924B-0E010
Sensor, Steering
[10.2015 -] GSV60 |
8924B-0E010 |
— | ||
|
89650
|
89650
89650-33740 Computer Assy, Power Steering[10.2015 -] GSV60 |
89650-33740 |
US $1,223.47 |
||
|
9008015079
|
9008015079
90080-15079 SCREW WWASHER |
90080-15079 |
US $0.73 |
