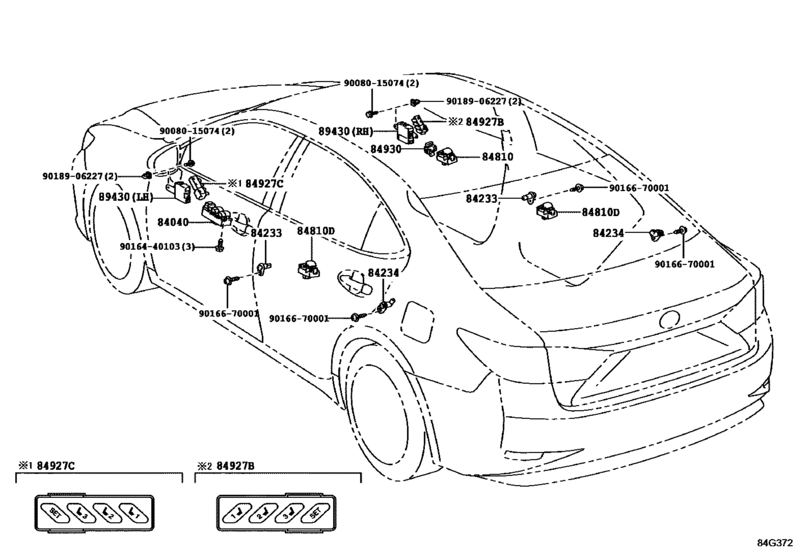

Switch & Relay & Computer ([10.2015 - ] DOOR & ROOF (1510- )) Diagram Toyota LEXUS ES
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- GSV60
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- ES350
- From
- 10.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- ES350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84040
|
84040
84040-33091
Master Switch Assy,multiplex Network
[10.2015 -] GSV60 |
84040-33091 |
— | ||
|
84233
|
84233
84231-30380 Switch, Courtesy Lamp[10.2015 -] GSV60 |
84231-30380 |
US $10.56 |
||
|
84234
|
84234
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[10.2015 -] GSV60 |
84231-50190 |
from US $10.56 |
||
|
84810
|
84810
84810-33130
Switch Assy, Power Window Regulator
[10.2015 -] GSV60 |
84810-33130 |
— | ||
|
84810D
|
84810D
84810-33130
Switch Assy, Power Window Regulator
[10.2015 -] GSV60 |
84810-33130 |
— | ||
|
84927B
|
84927B
84927-33100
Switch, Seat Memory, Rh
[10.2015 -] GSV60 D PACKAGE |
84927-33100 |
— | ||
|
84927C
|
84927C
84927-33110
Switch, Seat Memory, Lh
[10.2015 -] GSV60 B PACKAGE; GSV60 C PACKAGE; GSV60 D PACKAGE |
84927-33110 |
— | ||
|
84930
|
84930
84930-33120
Switch Assy, Door Control
[10.2015 -] GSV60 |
84930-33120 |
— | ||
|
89430
|
89430
89430-06010
Computer Assy, Outer Mirror Control
[10.2015 -] GSV60 B PACKAGE,LH; GSV60 C PACKAGE,LH; GSV60 D PACKAGE,LH |
89430-06010 |
— | ||
|
89430
|
89430
89430-06020
Computer Assy, Outer Mirror Control
[10.2015 -] GSV60 B PACKAGE,RH; GSV60 C PACKAGE,RH; GSV60 D PACKAGE,RH |
89430-06020 |
— | ||
|
9008015074
|
9008015074
90080-15074 New Genuine Part |
90080-15074 |
US $0.73 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $0.96 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
