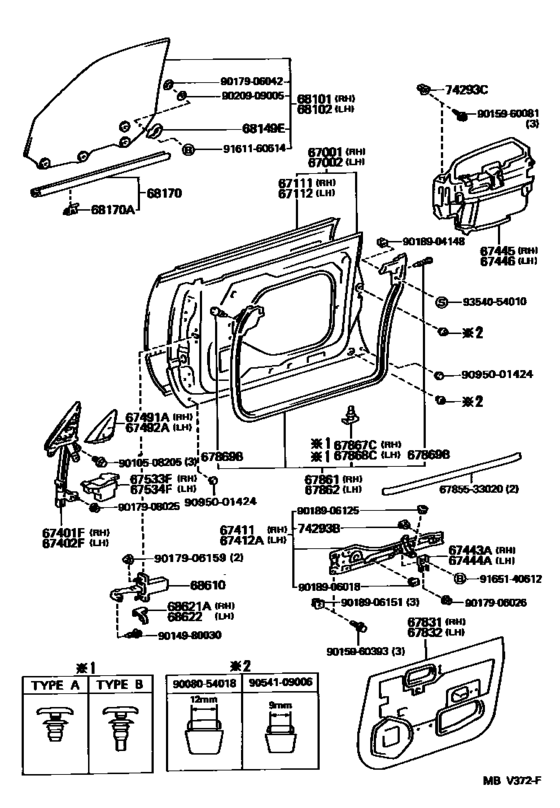

Front Door Panel & Glass ([07.1991 - ] (9107- )) Diagram Toyota LEXUS ES
- Year
- 1993 - 1996
- Sales region
- U.S.A.
- Frame
- MCV10
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1993
- To
- 08.1996
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-33020 Panel Sub-Assy, Front Door, Rh[07.1991 - 08.1996] MCV10,VCV10 |
67001-33020 |
US $927.47 |
||
|
67002
|
67002
67002-33020 Panel Sub-Assy, Front Door, Lh[07.1991 - 08.1996] MCV10,VCV10 |
67002-33020 |
US $927.47 |
||
|
67111
|
67111
67111-33010
Panel, Front Door, Outer Rh
[07.1991 - 08.1996] MCV10,VCV10 |
67111-33010 |
— | ||
|
67112
|
67112
67112-33010 Panel, Front Door, Outer Lh[07.1991 - 08.1996] MCV10,VCV10 |
67112-33010 |
US $375.65 |
||
|
67401F
|
67401F
67503-33010 Frame Sub-Assy, Front Door, Front Lower Rh[07.1991 - 08.1996] MCV10,VCV10 |
67503-33010 |
US $110.66 |
||
|
67402F
|
67402F
67504-33010 Frame Sub-Assy, Front Door, Front Lower Lh[07.1991 - 08.1996] MCV10,VCV10 |
67504-33010 |
US $110.66 |
||
|
67411
|
67411
67410-33010 Frame, Front Door Window, Front Upper Rh[07.1991 - 08.1996] MCV10,VCV10 |
67410-33010 |
US $55.18 |
||
|
67412A
|
67412A
67420-33010 Frame, Front Door Window, Front Upper Lh[07.1991 - 08.1996] MCV10,VCV10 |
67420-33010 |
US $55.18 |
||
|
67443A
|
67443A
67443-32030 Plate, Front Door Window Opening, Outer Rh[07.1991 - 08.1996] MCV10,VCV10 |
67443-32030 |
US $5.82 |
||
|
67444A
|
67444A
67443-32030 Plate, Front Door Window Opening, Outer Rh[07.1991 - 08.1996] MCV10,VCV10 |
67443-32030 |
US $5.82 |
||
|
67445
|
67445
67445-33010 Plate, Front Door Window Opening, Inner Rh[07.1991 - 08.1996] MCV10,VCV10 |
67445-33010 |
US $66.98 |
||
|
67446
|
67446
67446-33010 Plate, Front Door Window Opening, Inner Lh[07.1991 - 08.1996] MCV10,VCV10 |
67446-33010 |
US $66.98 |
||
|
67491A
|
67491A
67491-33021
Garnish, Front Door Lower Frame Bracket, Rh
[03.1992 - 08.1996] MCV10,VCV10 |
67491-33021 |
— | ||
|
67492A
|
67492A
67492-33021
Garnish, Front Door Lower Frame Bracket, Lh
[03.1992 - 08.1996] MCV10,VCV10 |
67492-33021 |
— | ||
|
67533F
|
67533F
67533-33011 Pad, Front Door Lower Frame Garnish, Rh[10.1992 - 08.1996] MCV10,VCV10 |
67533-33011 |
US $14.56 |
||
|
67534F
|
67534F
67533-33011 Pad, Front Door Lower Frame Garnish, Rh[10.1992 - 08.1996] MCV10,VCV10 |
67533-33011 |
US $14.56 |
||
|
67831
|
67831
67831-33010 Cover, Front Door Service Hole, Rh[07.1991 - 08.1996] MCV10,VCV10 |
67831-33010 |
US $36.69 |
||
|
67832
|
67832
67832-33010 Cover, Front Door Service Hole, Lh[07.1991 - 08.1996] MCV10,VCV10 |
67832-33010 |
US $36.69 |
||
|
67861
|
67861
67861-33010 Weatherstrip, Front Door, Rh[07.1991 - 08.1996] MCV10,VCV10 |
67861-33010 |
US $99.01 |
||
|
67862
|
67862
67862-33010 Weatherstrip, Front Door, Lh[07.1991 - 08.1996] MCV10,VCV10 |
67862-33010 |
from US $99.01 |
||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[05.1995 - 08.1996] MCV10 |
67867-12150 |
from US $1.60 |
||
|
67867C
|
67867C
67867-20160 Retainer, Front Door Weatherstrip, Rh[03.1992 - 08.1994] MCV10,VCV10 TYPE B |
67867-20160 |
US $2.33 |
||
| replacement | |||||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[03.1992 - 08.1994] MCV10,VCV10 TYPE B |
67867-12150 |
from US $1.60 |
||
|
67867C
|
67867C
67867-32041 Retainer, Front Door Weatherstrip, Rh[08.1993 - 08.1994] MCV10 TYPE A |
67867-32041 |
US $2.33 |
||
| replacement | |||||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.1993 - 08.1994] MCV10 TYPE A |
67867-12150 |
from US $1.60 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[05.1995 - 08.1996] MCV10 |
67867-12150 |
from US $1.60 |
||
|
67868C
|
67868C
67867-20160 Retainer, Front Door Weatherstrip, Rh[08.1993 - 05.1995] MCV10 TYPE B |
67867-20160 |
US $2.33 |
||
| replacement | |||||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.1993 - 05.1995] MCV10 TYPE B |
67867-12150 |
from US $1.60 |
||
|
67868C
|
67868C
67868-32051 Retainer, Front Door Weatherstrip, Lh[08.1993 - 05.1995] MCV10 TYPE A |
67868-32051 |
US $2.18 |
||
| replacement | |||||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.1993 - 05.1995] MCV10 TYPE A |
67867-12150 |
from US $1.60 |
||
|
67869B
|
67869B
67869-30020 Clip, Headlamp Door Filler[10.1992 - 08.1996] MCV10,VCV10 BLACK |
67869-30020 |
US $3.52 |
||
|
67869B
|
67869B
67869-32010 Clip, Door Glass Weatherstrip(For Front Door)[07.1991 - 08.1996] MCV10,VCV10 WHITE |
67869-32010 |
US $2.18 |
||
|
68101
|
68101
68101-32120 Glass Sub-Assy, Front Door, Rh[07.1991 - 08.1996] MCV10,VCV10 *TT,T=5.0,BRONZE |
68101-32120 |
US $468.83 |
||
|
68101
|
68101
68101-32130 Glass Sub-Assy, Front Door, Rh[07.1991 - 08.1996] MCV10,VCV10 *TT,T=5.0,GRAY |
68101-32130 |
US $505.23 |
||
| replacement | |||||
|
68101
|
68101
68101-32120 Glass Sub-Assy, Front Door, Rh[07.1991 - 08.1996] MCV10,VCV10 *TT,T=5.0,GRAY |
68101-32120 |
US $468.83 |
||
|
68102
|
68102
68102-32120 Glass Sub-Assy, Front Door, Lh[07.1991 - 08.1996] MCV10,VCV10 *TT,T=5.0,BRONZE |
68102-32120 |
US $468.83 |
||
|
68102
|
68102
68102-32130 Glass Sub-Assy, Front Door, Lh[07.1991 - 08.1996] MCV10,VCV10 *TT,T=5.0,GRAY |
68102-32130 |
US $505.23 |
||
| replacement | |||||
|
68102
|
68102
68102-32120 Glass Sub-Assy, Front Door, Lh[07.1991 - 08.1996] MCV10,VCV10 *TT,T=5.0,GRAY |
68102-32120 |
US $468.83 |
||
|
68149E
|
68149E
68149-32010 Stabilizer, Door Glass Male[07.1991 - 08.1996] MCV10,VCV10 |
68149-32010 |
US $8.88 |
||
|
68170
|
68170
68170-32080
Weatherstrip Assy, Front Door Glass, Inner
[07.1991 - 08.1994] MCV10,VCV10 DOOR PANEL,RH |
68170-32080 |
— | ||
|
68170
|
68170
68170-33010 Weatherstrip Assy, Front Door Glass, Inner[07.1991 - 08.1996] MCV10,VCV10 DOOR TRIM, RH |
68170-33010 |
US $53.14 |
||
|
68170
|
68170
68220-32090
Weatherstrip Assy, Front Door Glass, Inner
[07.1991 - 08.1994] MCV10,VCV10 DOOR PANEL,LH |
68220-32090 |
— | ||
|
68170
|
68170
68220-33010
Weatherstrip Assy, Front Door Glass, Inner
[07.1991 - 08.1996] MCV10,VCV10 DOOR TRIM, LH |
68220-33010 |
— | ||
|
68170A
|
68170A
68211-32060 Clip(For Front Door Glass Inner Weatherstrip Set)[07.1991 - 08.1996] MCV10,VCV10 |
68211-32060 |
US $10.05 |
||
|
68610
|
68610
68610-32080 Check Assy, Front Door[08.1993 - 08.1996] MCV10 RH |
68610-32080 |
US $49.65 |
||
|
68610
|
68610
68620-32010 Check Assy, Front Door[08.1993 - 08.1996] MCV10 LH |
68620-32010 |
US $49.65 |
||
|
74293B
|
74293B
74293-32010 Plate, Front Door Armrest, No.1[07.1991 - 08.1996] MCV10,VCV10 |
74293-32010 |
US $2.18 |
||
|
74293C
|
74293C
74293-32010 Plate, Front Door Armrest, No.1[07.1991 - 08.1996] MCV10,VCV10 |
74293-32010 |
US $2.18 |
||
|
6785533020
|
6785533020
67855-33020 Cover, Door Outside Handle Service Hole |
67855-33020 |
US $25.19 |
||
|
9008054018
|
9008054018
90080-54018 New Genuine Part |
90080-54018 |
US $2.33 |
||
|
9010508205
|
9010508205
90105-08205 New Genuine Part |
90105-08205 |
US $2.04 |
||
|
9014980030
|
9014980030
90149-80030 New Genuine Part |
90149-80030 |
US $1.60 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9015960393
|
9015960393
90159-60393 SCREW |
90159-60393 |
from US $0.80 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017906042
|
9017906042
90179-06042 New Genuine Part |
90179-06042 |
US $4.72 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9018904148
|
9018904148
90189-04148
New Genuine Part
|
90189-04148 |
— | ||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9018906125
|
9018906125
90189-06125 NUT |
90189-06125 |
US $2.08 |
||
|
9018906151
|
9018906151
90189-06151 GROMMET SCREW |
90189-06151 |
US $1.46 |
||
|
9020909005
|
9020909005
90209-09005 New Genuine Part |
90209-09005 |
US $1.12 |
||
|
9054109006
|
9054109006
90541-09006 Cushion, Front Door Panel |
90541-09006 |
from US $1.76 |
||
|
9095001424
|
9095001424
90950-01424
PLUG
|
90950-01424 |
— | ||
| replacement | |||||
|
9095001424
|
9095001424
90950-01759 PLUG |
90950-01759 |
from US $1.92 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.88 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $1.92 |
||
