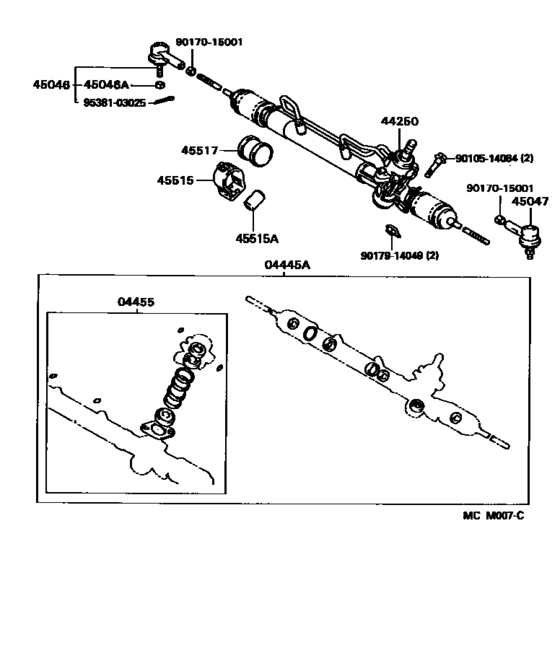

Front Steering Gear & Link ([07.1991 - ] (9107- )) Diagram Toyota LEXUS ES
- Year
- 1993 - 1996
- Sales region
- U.S.A.
- Frame
- MCV10
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1993
- To
- 08.1996
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-33023
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[05.1993 - 09.1994] MCV10,VCV10 |
04445-33023 |
— | ||
|
04445A
|
04445A
04445-33040 Gasket Kit, Power Steering Gear(For Rack & Pinion)[09.1994 - 02.1996] MCV10 |
04445-33040 |
US $82.99 |
||
| replacement | |||||
|
04445A
|
04445A
04445-33060 Gasket Kit, Power Steering Gear(For Rack & Pinion)[09.1994 - 02.1996] MCV10 |
04445-33060 |
US $82.99 |
||
|
04445A
|
04445A
04445-33060 Gasket Kit, Power Steering Gear(For Rack & Pinion)[02.1996 - 08.1996] MCV10 |
04445-33060 |
US $82.99 |
||
|
04455
|
04455
04455-10040 Gasket Kit, Power Steering Control Valve Overhole[08.1994 - 02.1996] MCV10 |
04455-10040 |
US $26.21 |
||
|
04455
|
04455
04455-10050 Gasket Kit, Power Steering Control Valve Overhole[02.1996 - 08.1996] MCV10 |
04455-10050 |
US $41.64 |
||
|
04455
|
04455
04455-33010 Gasket Kit, Power Steering Control Valve Overhole[07.1991 - 08.1994] MCV10,VCV10 |
04455-33010 |
US $36.11 |
||
| replacement | |||||
|
04455
|
04455
04455-10040 Gasket Kit, Power Steering Control Valve Overhole[07.1991 - 08.1994] MCV10,VCV10 |
04455-10040 |
US $26.21 |
||
|
44250
|
44250
44250-33052 Gear Assy, Power Steering(For Rack & Pinion)[05.1993 - 04.1994] MCV10,VCV10 |
44250-33052 |
US $1,659.84 |
||
| replacement | |||||
|
44250
|
44250
44250-33054 Gear Assy, Power Steering(For Rack & Pinion)[05.1993 - 04.1994] MCV10,VCV10 |
44250-33054 |
US $1,659.84 |
||
|
44250
|
44250
44250-33053
Gear Assy, Power Steering(For Rack & Pinion)
[04.1994 - 09.1994] MCV10 |
44250-33053 |
— | ||
| replacement | |||||
|
44250
|
44250
44250-33054 Gear Assy, Power Steering(For Rack & Pinion)[04.1994 - 09.1994] MCV10 |
44250-33054 |
US $1,659.84 |
||
|
44250
|
44250
44250-33054 Gear Assy, Power Steering(For Rack & Pinion)[09.1994 - 08.1996] MCV10 |
44250-33054 |
US $1,659.84 |
||
|
45046
|
45046
45046-29255 End Sub-Assy, Tie Rod[07.1991 - 08.1996] MCV10,VCV10 |
45046-29255 |
from US $44.48 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[07.1991 - 08.1996] MCV10,VCV10 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-29255 End Sub-Assy, Tie Rod[07.1991 - 08.1996] MCV10,VCV10 |
45046-29255 |
from US $44.48 |
||
|
45515
|
45515
45515-33011 Bracket, Steering Rack Housing, No.2[07.1991 - 08.1996] MCV10,VCV10 |
45515-33011 |
US $12.75 |
||
|
45515A
|
45515A
90080-38062 Collar, Steering Rack Housing Bracket[11.1995 - 08.1996] MCV10 |
90080-38062 |
US $2.62 |
||
|
45515A
|
45515A
90386-15004 Collar, Steering Rack Housing Bracket[07.1991 - 08.1996] MCV10,VCV10 |
90386-15004 |
US $2.62 |
||
|
45517
|
45517
45517-33010 Grommet, Steering Rack Housing, No.2[07.1991 - 04.1996] MCV10,VCV10 |
45517-33010 |
US $15.58 |
||
| replacement | |||||
|
45517
|
45517
45517-33011 Grommet, Steering Rack Housing, No.2[07.1991 - 04.1996] MCV10,VCV10 |
45517-33011 |
US $23.01 |
||
|
45517
|
45517
45517-33021 Grommet, Steering Rack Housing, No.2[04.1996 - 08.1996] MCV10 |
45517-33021 |
from US $9.78 |
||
|
45517
|
45517
45517-33030
Grommet, Steering Rack Housing, No.2
[07.1996 - 08.1996] MCV10 |
45517-33030 |
— | ||
| replacement | |||||
|
45517
|
45517
45517-33021 Grommet, Steering Rack Housing, No.2[07.1996 - 08.1996] MCV10 |
45517-33021 |
from US $9.78 |
||
|
9010514084
|
9010514084
90105-14084 Bolt(For Front Suspension Lower Arm) |
90105-14084 |
US $6.60 |
||
|
9017015001
|
9017015001
90170-15001 Nut, Rack End Lock |
90170-15001 |
from US $1.79 |
||
|
9017914049
|
9017914049
90179-14049 New Genuine Part |
90179-14049 |
US $2.91 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
||
