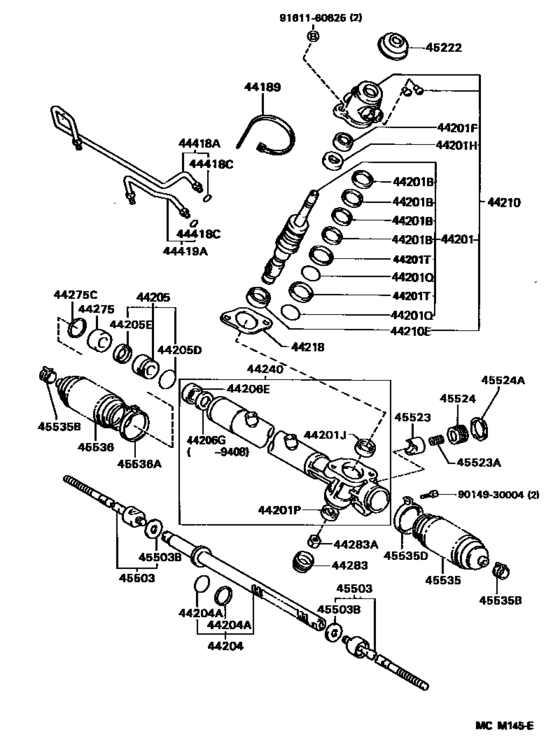

Front Steering Gear & Link ([07.1991 - ] (9107- )) Diagram Toyota LEXUS ES
- Year
- 1993 - 1996
- Sales region
- U.S.A.
- Frame
- MCV10
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1993
- To
- 08.1996
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44189
|
44189
90464-00662 Clamp, Solenoid Valve Terminal[08.1994 - 08.1996] MCV10 |
90464-00662 |
US $2.77 |
||
|
44201
|
44201
44201-33060 Valve Sub-Assy, Power Steering Control[07.1991 - 04.1994] MCV10,VCV10 |
44201-33060 |
US $292.66 |
||
| replacement | |||||
|
44201
|
44201
44201-33061
Valve Sub-Assy, Power Steering Control
[07.1991 - 04.1994] MCV10,VCV10 |
44201-33061 |
— | ||
|
44201
|
44201
44201-33061
Valve Sub-Assy, Power Steering Control
[04.1994 - 08.1996] MCV10 |
44201-33061 |
— | ||
|
44201B
|
44201B
90560-33003 Spacer(For Power Steering Control Valve)[02.1996 - 08.1996] MCV10 UPR |
90560-33003 |
from US $1.40 |
||
|
44201B
|
44201B
90560-33005
Spacer(For Power Steering Control Valve)
[07.1991 - 08.1994] MCV10,VCV10 UPR |
90560-33005 |
— | ||
|
44201B
|
44201B
90560-35011 Spacer(For Power Steering Control Valve)[07.1991 - 08.1994] MCV10,VCV10 LWR |
90560-35011 |
US $1.89 |
||
|
44201F
|
44201F
90311-19010 Seal, Oil(For Power Steering Control Valve)[07.1991 - 08.1996] MCV10,VCV10 |
90311-19010 |
from US $3.84 |
||
|
44201H
|
44201H
90365-19001 Bearing(For Power Steering Control Valve)[07.1991 - 08.1996] MCV10,VCV10 |
90365-19001 |
from US $20.52 |
||
|
44201J
|
44201J
90364-25014 Bearing(For Power Steering Control Valve Center)[07.1991 - 08.1996] MCV10,VCV10 |
90364-25014 |
from US $19.39 |
||
|
44201P
|
44201P
90363-12013 Bearing(For Power Steering Control Valve Lower)[07.1991 - 08.1996] MCV10,VCV10 |
90363-12013 |
from US $8.39 |
||
|
44201Q
|
44201Q
90301-32004 Ring, O(For Power Steering Control Valve)[07.1991 - 08.1996] MCV10,VCV10 |
90301-32004 |
US $3.64 |
||
|
44204
|
44204
44204-33030 Rack Sub-Assy, Power SteeringPOWER STEERING [07.1991 - 08.1996] MCV10,VCV10 |
44204-33030 |
US $244.61 |
||
| replacement | |||||
|
44204
|
44204
44204-33031 Rack Sub-Assy, Power Steering[07.1991 - 08.1996] MCV10,VCV10 |
44204-33031 |
US $243.15 |
||
|
44204A
|
44204A
90080-56013
Ring(For Rack Steering Piston)
[11.1995 - 08.1996] MCV10 OUTER |
90080-56013 |
— | ||
|
44204A
|
44204A
90301-36008 Ring(For Rack Steering Piston)[07.1991 - 08.1996] MCV10,VCV10 INNER |
90301-36008 |
US $4.02 |
||
|
44204A
|
44204A
90562-40003 Ring(For Rack Steering Piston)[06.1992 - 08.1996] MCV10,VCV10 OUTER |
90562-40003 |
US $1.05 |
||
|
44205
|
44205
44205-33010
Stopper Sub-Assy, Cylinder End
[07.1991 - 08.1996] MCV10,VCV10 |
44205-33010 |
— | ||
|
44205D
|
44205D
90301-36009 Ring, O(For Power Steering Rack Bush)[07.1991 - 08.1996] MCV10,VCV10 |
90301-36009 |
US $2.62 |
||
|
44205E
|
44205E
90080-31010
Seal, Oil(For Power Steering Rack Bush)
[11.1995 - 08.1996] MCV10 |
90080-31010 |
— | ||
|
44205E
|
44205E
90311-27001 Seal, Oil(For Power Steering Rack Bush)[07.1991 - 08.1996] MCV10,VCV10 |
90311-27001 |
from US $4.32 |
||
|
44206E
|
44206E
90311-27005 Seal, Oil, No.1(For Power Steering Cylinder Tube)[05.1993 - 09.1994] MCV10,VCV10 |
90311-27005 |
from US $4.32 |
||
|
44206E
|
44206E
90311-27006 Seal, Oil, No.1(For Power Steering Cylinder Tube)[09.1994 - 08.1996] MCV10 |
90311-27006 |
from US $3.52 |
||
|
44206G
|
44206G
90561-28003 Spacer, No.1(For Power Steering Cylinder Tube)[07.1991 - 08.1994] MCV10,VCV10 |
90561-28003 |
US $3.20 |
||
|
44210
|
44210
44210-33070 Valve Assy, Power Steering Control[07.1991 - 04.1994] MCV10,VCV10 |
44210-33070 |
US $560.56 |
||
| replacement | |||||
|
44210
|
44210
44210-33071
Valve Assy, Power Steering Control
[07.1991 - 04.1994] MCV10,VCV10 |
44210-33071 |
— | ||
|
44210
|
44210
44210-33071
Valve Assy, Power Steering Control
[04.1994 - 08.1996] MCV10 |
44210-33071 |
— | ||
|
44210E
|
44210E
90311-26003 Seal, Oil(For Power Steering Control Valve)[07.1991 - 08.1996] MCV10,VCV10 |
90311-26003 |
from US $3.84 |
||
|
44218
|
44218
44218-12020 Gasket, Valve Housing[07.1991 - 08.1996] MCV10,VCV10 |
44218-12020 |
from US $2.57 |
||
|
44240
|
44240
44240-33010 Housing Assy, Power Steering RackPOWER STEERING RACK [07.1991 - 09.1994] MCV10,VCV10 |
44240-33010 |
US $403.31 |
||
| replacement | |||||
|
44240
|
44240
44240-33011 Housing Assy, Power Steering RackPOWER STEERING RACK [07.1991 - 09.1994] MCV10,VCV10 |
44240-33011 |
US $407.68 |
||
|
44240
|
44240
44240-33011 Housing Assy, Power Steering RackPOWER STEERING RACK [09.1994 - 08.1996] MCV10 |
44240-33011 |
US $407.68 |
||
|
44275
|
44275
44275-33010 Stopper, Cylinder End[07.1991 - 08.1994] MCV10,VCV10 |
44275-33010 |
US $24.32 |
||
|
44275
|
44275
44275-33011 Stopper, Cylinder End[08.1994 - 05.1995] MCV10 |
44275-33011 |
US $29.12 |
||
| replacement | |||||
|
44275
|
44275
44275-33010 Stopper, Cylinder End[08.1994 - 05.1995] MCV10 |
44275-33010 |
US $24.32 |
||
|
44275C
|
44275C
90580-20238 Wire(For Cylinder End Stopper)[07.1991 - 08.1996] MCV10,VCV10 |
90580-20238 |
US $1.60 |
||
|
44283
|
44283
44283-33010
Cap, Rack Housing
[07.1991 - 08.1996] MCV10,VCV10 |
44283-33010 |
— | ||
|
44283A
|
44283A
90179-10048 Nut, Lock(For Power Steering Control Valve)[07.1991 - 08.1996] MCV10,VCV10 |
90179-10048 |
US $4.19 |
||
|
44418A
|
44418A
44418-33020 Tube, Steering Right Turn PressureSTEERING RIGHT TURN PRESSURE [07.1991 - 08.1996] MCV10,VCV10 |
44418-33020 |
US $17.18 |
||
|
44418C
|
44418C
90301-03001 Seat, Union(For Steering Turn Pressure Tube)[07.1991 - 08.1996] MCV10,VCV10 |
90301-03001 |
US $2.88 |
||
| replacement | |||||
|
44418C
|
44418C
90080-30023 Ring, O(For Steering Turn Pressure Tube)[07.1991 - 08.1996] MCV10,VCV10 |
90080-30023 |
US $6.41 |
||
|
44419A
|
44419A
44419-33020 Tube, Steering Left Turn PressureSTEERING LEFT TURN PRESSURE [07.1991 - 08.1996] MCV10,VCV10 |
44419-33020 |
US $14.41 |
||
|
45222
|
45222
45222-33010 Cover, Steering Gear Dust[07.1991 - 08.1996] MCV10,VCV10 |
45222-33010 |
US $6.29 |
||
|
45503
|
45503
45503-29355 End Sub-Assy, Steering Rack[07.1991 - 08.1994] MCV10,VCV10 |
45503-29355 |
US $107.74 |
||
| replacement | |||||
|
45503
|
45503
45503-39135 End Sub-Assy, Steering Rack[07.1991 - 08.1994] MCV10,VCV10 |
45503-39135 |
from US $112.48 |
||
|
45503
|
45503
45503-39055 End Sub-Assy, Steering Rack[08.1994 - 07.1996] MCV10 |
45503-39055 |
US $107.74 |
||
| replacement | |||||
|
45503
|
45503
45503-39135 End Sub-Assy, Steering Rack[08.1994 - 07.1996] MCV10 |
45503-39135 |
from US $112.48 |
||
|
45503
|
45503
45503-39135 End Sub-Assy, Steering Rack[07.1996 - 08.1996] MCV10 |
45503-39135 |
from US $112.48 |
||
|
45503B
|
45503B
90214-14002 Washer, Claw(For Power Steering Rack End)[07.1996 - 08.1996] MCV10 OD=37 |
90214-14002 |
from US $1.33 |
||
|
45503B
|
45503B
90214-14007 Washer, Claw(For Power Steering Rack End)[07.1991 - 07.1996] MCV10,VCV10 OD=38 |
90214-14007 |
from US $1.56 |
||
|
45523
|
45523
45504-06010 Guide, Rack(For Steering Gear)[08.1994 - 08.1996] MCV10 |
45504-06010 |
US $81.54 |
||
|
45523
|
45523
45504-33010 Guide, Rack(For Steering Gear)[10.1991 - 08.1994] MCV10,VCV10 |
45504-33010 |
US $90.27 |
||
|
45523A
|
45523A
90501-26042 Spring(For Power Steering Rack Guide)[10.1991 - 08.1996] MCV10,VCV10 |
90501-26042 |
US $2.04 |
||
|
45524
|
45524
45524-33010
Cap, Steering Rack Guide Spring
[10.1991 - 08.1996] MCV10,VCV10 |
45524-33010 |
— | ||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[10.1991 - 08.1996] MCV10,VCV10 |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-06010
Boot, Steering Rack, No.1
[08.1994 - 07.1996] MCV10 |
45535-06010 |
— | ||
| replacement | |||||
|
45535
|
45535
45535-06020
Boot, Steering Rack, No.1
[08.1994 - 07.1996] MCV10 |
45535-06020 |
— | ||
|
45535
|
45535
45535-06020
Boot, Steering Rack, No.1
[07.1996 - 08.1996] MCV10 |
45535-06020 |
— | ||
|
45535
|
45535
45535-33010 Boot, Steering Rack, No.1[07.1991 - 08.1994] MCV10,VCV10 |
45535-33010 |
from US $17.04 |
||
|
45535
|
45535
45535-33020 Boot, Steering Rack, No.1[07.1996 - 08.1996] MCV10 |
45535-33020 |
from US $13.92 |
||
|
45535B
|
45535B
90080-46153
Clip(For Steering Rack Boot)
[11.1995 - 08.1996] MCV10 |
90080-46153 |
— | ||
|
45535B
|
45535B
90467-19017
Clip(For Steering Rack Boot)
[07.1991 - 08.1996] MCV10,VCV10 |
90467-19017 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[07.1991 - 08.1996] MCV10,VCV10 |
90467-19021 |
from US $1.54 |
||
|
45535D
|
45535D
90461-08688 Clamp(For Steering Rack Boot No.1)[07.1991 - 08.1996] MCV10,VCV10 |
90461-08688 |
US $3.93 |
||
|
45536
|
45536
45535-06010
Boot, Steering Rack, No.1
[08.1994 - 07.1996] MCV10 |
45535-06010 |
— | ||
| replacement | |||||
|
45536
|
45536
45535-06020
Boot, Steering Rack, No.1
[08.1994 - 07.1996] MCV10 |
45535-06020 |
— | ||
|
45536
|
45536
45535-06020
Boot, Steering Rack, No.1
[07.1996 - 08.1996] MCV10 |
45535-06020 |
— | ||
|
45536
|
45536
45535-33010 Boot, Steering Rack, No.1[07.1991 - 08.1994] MCV10,VCV10 |
45535-33010 |
from US $17.04 |
||
|
45536
|
45536
45535-33020 Boot, Steering Rack, No.1[07.1996 - 08.1996] MCV10 |
45535-33020 |
from US $13.92 |
||
|
45536A
|
45536A
90461-08688 Clamp(For Steering Rack Boot No.1)[07.1991 - 08.1996] MCV10,VCV10 |
90461-08688 |
US $3.93 |
||
|
9014930004
|
9014930004
90149-30004 Screw(For Steering Rack Boot Clamp) |
90149-30004 |
US $1.76 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
