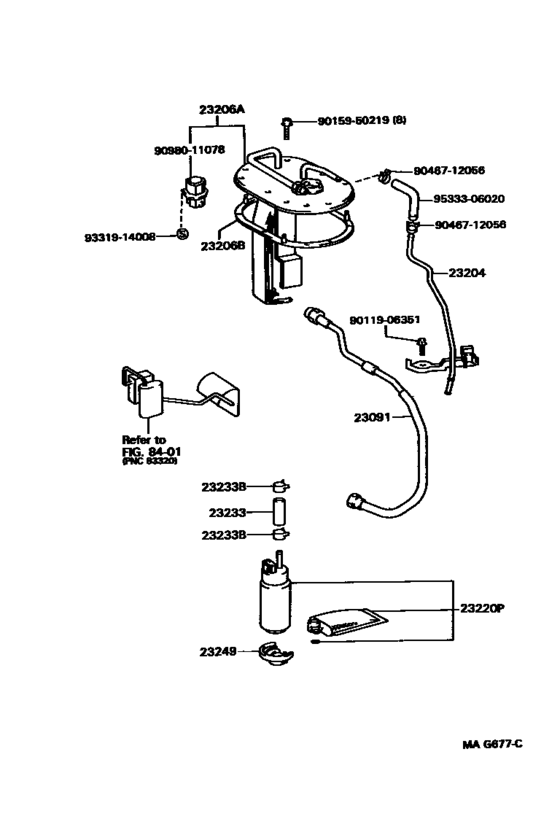

Fuel Injection System ([08.1993 - ] (9308- )) Diagram Toyota LEXUS ES
- Year
- 1993 - 1996
- Sales region
- U.S.A.
- Frame
- MCV10
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1993
- To
- 08.1996
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23091
|
23091
23091-62010
Tube Sub-Assy, Fuel Pump
[07.1991 - 08.1996] 1MZFE..MCV10; 3VZFE..VCV10 |
23091-62010 |
— | ||
|
23204
|
23204
23204-62010 Tube Sub-Assy, Fuel Pump Return[07.1991 - 08.1996] 1MZFE..MCV10; 3VZFE..VCV10 |
23204-62010 |
US $35.53 |
||
|
23206A
|
23206A
23206-62010 Bracket, Fuel Pump[07.1991 - 08.1996] 1MZFE..MCV10; 3VZFE..VCV10 |
23206-62010 |
US $106.29 |
||
|
23206B
|
23206B
77169-60010 Gasket, Fuel Pump Bracket[07.1991 - 08.1996] 1MZFE..MCV10; 3VZFE..VCV10 |
77169-60010 |
from US $11.06 |
||
|
23220P
|
23220P
23220-03020 Pump Assy, Fuel[08.1994 - 08.1996] 1MZFE..MCV10 |
23220-03020 |
US $564.93 |
||
|
23220P
|
23220P
23220-74020
Pump Assy, Fuel
[02.1992 - 08.1994] 1MZFE..MCV10; 3VZFE..VCV10 |
23220-74020 |
— | ||
| replacements | |||||
|
23220P
|
23220P
23217-0D070 Filter, Fuel Pump[02.1992 - 08.1994] 1MZFE..MCV10; 3VZFE..VCV10 |
23217-0D070 |
from US $8.07 |
||
|
23220P
|
23220P
23221-28280 Pump Assy, Fuel (without filter)[02.1992 - 08.1994] 1MZFE..MCV10; 3VZFE..VCV10 |
23221-28280 |
from US $421.47 |
||
|
23220P
|
23220P
23229-16010 Clip(For Fuel Pump Filter)[02.1992 - 08.1994] 1MZFE..MCV10; 3VZFE..VCV10 |
23229-16010 |
from US $0.84 |
||
|
23233
|
23233
23239-11010 Hose, Fuel Pump[06.1994 - 08.1996] 1MZFE..MCV10 |
23239-11010 |
US $10.88 |
||
|
23233
|
23233
23239-63010 Hose, Fuel Pump[07.1991 - 06.1994] 1MZFE..MCV10; 3VZFE..VCV10 |
23239-63010 |
from US $2.09 |
||
|
23233B
|
23233B
90467-12067 Clip(For Fuel Pump Hose)[06.1994 - 08.1996] 1MZFE..MCV10 |
90467-12067 |
from US $1.27 |
||
|
23233B
|
23233B
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[07.1991 - 06.1994] 1MZFE..MCV10; 3VZFE..VCV10 |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[07.1991 - 06.1994] 1MZFE..MCV10; 3VZFE..VCV10 |
96135-51300 |
from US $1.92 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[07.1991 - 08.1996] 1MZFE..MCV10; 3VZFE..VCV10 |
23249-74610 |
from US $8.56 |
||
|
9011906351
|
9011906351
90119-06351 New Genuine Part |
90119-06351 |
US $0.61 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.66 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9046712056
|
9046712056
90467-12056 Clamp Or Clip(For Throttle Body Hose) |
90467-12056 |
from US $0.80 |
||
| replacement | |||||
|
9046712056
|
9046712056
90466-T0048
New Genuine Part
|
90466-T0048 |
— | ||
|
9098011078
|
9098011078
90980-11078 HOUSING CONNECTOR |
90980-11078 |
US $4.80 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.88 |
||
|
9533306020
|
9533306020
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
|
95333-06020 |
— | ||
| replacement | |||||
|
9533306020
|
9533306020
95337-06020 Hose, Differential Pressure Control |
95337-06020 |
from US $9.12 |
||
