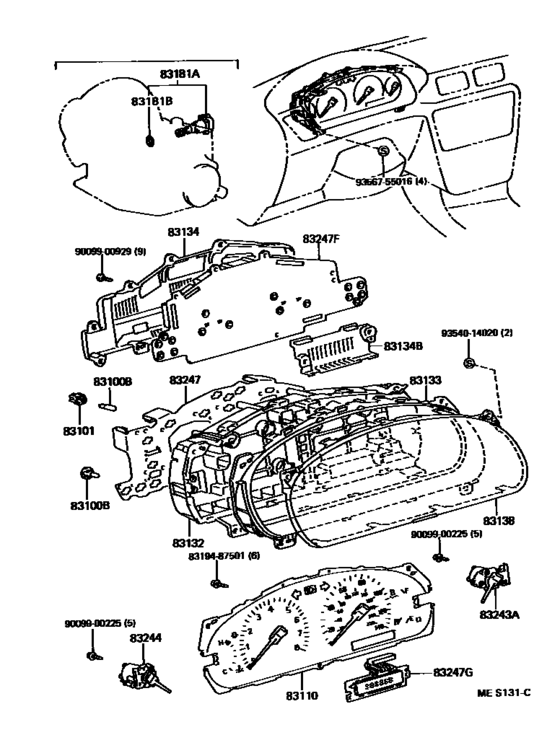

Meter ([07.1991 - 08.1996] (9107-9608)) Diagram Toyota LEXUS ES
- Year
- 1993 - 1996
- Sales region
- U.S.A.
- Frame
- MCV10
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1993
- To
- 08.1996
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83101-20080
Bulb, Combination Meter, No.1
[07.1991 - 08.1996] MCV10,VCV10 12V 1.4W,W(SOCKET) |
83101-20080 |
— | ||
|
83100B
|
83100B
83109-30070 Bulb, Combination Meter, No.1[05.1993 - 08.1996] MCV10,VCV10 14V 2.0W,W/O SOCKET |
83109-30070 |
US $2.45 |
||
|
83100B
|
83100B
83119-24570
Bulb, Combination Meter, No.1
[07.1991 - 08.1996] MCV10,VCV10 14V 3.0W,BLUE CAP |
83119-24570 |
— | ||
|
83100B
|
83100B
83119-32010 Bulb, Combination Meter, No.1[08.1993 - 08.1996] MCV10 14V 3.0W |
83119-32010 |
from US $2.32 |
||
|
83100B
|
83100B
83119-50050
Bulb, Combination Meter, No.1
[07.1991 - 08.1994] MCV10,VCV10..ATM 14V 3.0W,LONG LIFE |
83119-50050 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1993 - 08.1996] MCV10..USA 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1993 - 08.1996] MCV10..USA OD=11.3 BLACK |
83101-14040 |
US $2.98 |
||
|
83101
|
83101
83101-24010 Socket Sub-Assy, Combination Meter Bulb[07.1991 - 08.1996] MCV10,VCV10 OD=12.5 GREEN |
83101-24010 |
US $2.57 |
||
|
83101
|
83101
83101-32020 Socket Sub-Assy, Combination Meter Bulb[07.1991 - 08.1994] MCV10..USA OD=12.2BLUE; MCV10..CND;VCV10..ATM OD=12.2 BLUE |
83101-32020 |
US $6.12 |
||
|
83110
|
83110
83110-33270 Speedometer Assy[08.1993 - 08.1994] MCV10..USA |
83110-33270 |
US $998.82 |
||
|
83110
|
83110
83110-33271 Speedometer Assy[08.1994 - 08.1996] MCV10..USA |
83110-33271 |
US $998.82 |
||
|
83132
|
83132
83132-33150
Case, Combination Meter
[08.1993 - 04.1994] MCV10 |
83132-33150 |
— | ||
|
83132
|
83132
83132-33151
Case, Combination Meter
[04.1994 - 08.1994] MCV10 |
83132-33151 |
— | ||
|
83132
|
83132
83132-33470
Case, Combination Meter
[08.1994 - 08.1996] MCV10 |
83132-33470 |
— | ||
|
83133
|
83133
83133-33010
Plate, Combination Meter, No.1
[07.1991 - 08.1996] MCV10,VCV10 |
83133-33010 |
— | ||
|
83134
|
83134
83134-33010
Cover, Combination Meter, No.1
[07.1991 - 08.1996] MCV10,VCV10 |
83134-33010 |
— | ||
|
83134B
|
83134B
83134-33030
Cover, Combination Meter, No.2
[07.1991 - 08.1996] MCV10,VCV10 |
83134-33030 |
— | ||
|
83138
|
83138
83138-33090
Glass, Speedometer
[08.1993 - 08.1996] MCV10 |
83138-33090 |
— | ||
|
83181A
|
83181A
83181-12040 Sensor, Speedometer[08.1993 - 08.1996] MCV10 |
83181-12040 |
from US $181.71 |
||
|
83181B
|
83181B
96711-24018 Ring, O[08.1993 - 08.1996] MCV10 |
96711-24018 |
from US $2.34 |
||
|
83243A
|
83243A
83243-33010 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [07.1991 - 08.1996] MCV10,VCV10 |
83243-33010 |
US $177.63 |
||
|
83244
|
83244
83244-33010 Gauge Sub-Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [07.1991 - 08.1996] MCV10,VCV10 |
83244-33010 |
US $177.63 |
||
|
83247
|
83247
83247-33610
Plate, Meter Circuit
[08.1993 - 08.1996] MCV10 |
83247-33610 |
— | ||
|
83247F
|
83247F
83247-33570 Plate, Meter Circuit, No.1 (For Computer)METER CIRCUIT, NO.1 (FOR COMPUTER) [08.1993 - 08.1994] MCV10..USA |
83247-33570 |
US $601.33 |
||
|
83247F
|
83247F
83247-33870
Plate, Meter Circuit, No.1 (For Computer)
[08.1994 - 08.1996] MCV10..USA |
83247-33870 |
— | ||
|
83247G
|
83247G
83247-33050 Plate, Meter Circuit, No.2 (For Computer)[07.1991 - 08.1996] MCV10,VCV10 |
83247-33050 |
US $358.18 |
||
|
8319487501
|
8319487501
83194-87501
SCREWWWASHER
|
83194-87501 |
— | ||
|
9009900225
|
9009900225
90099-00225
New Genuine Part
|
90099-00225 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $1.92 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
