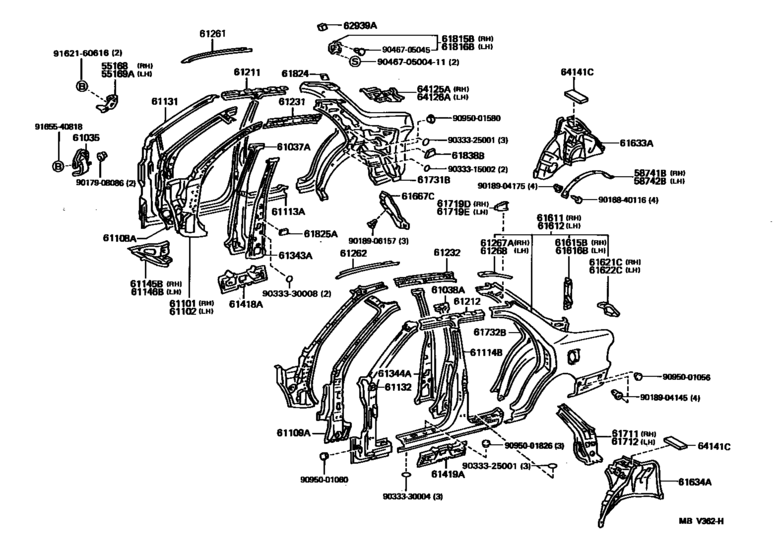

Side Member ([07.1991 - ] (9107- )) Diagram Toyota LEXUS ES
- Year
- 1993 - 1996
- Sales region
- U.S.A.
- Frame
- MCV10
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1993
- To
- 08.1996
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55168
|
55168
55168-32010 Bracket, Front Fender Mounting, Rh[07.1991 - 08.1996] MCV10,VCV10 |
55168-32010 |
US $5.10 |
||
|
55169A
|
55169A
55169-32010 Bracket, Front Fender Mounting, Lh[07.1991 - 08.1996] MCV10,VCV10 |
55169-32010 |
US $5.10 |
||
|
58741B
|
58741B
58741-33010 Protector, Quarter Panel, Rh[07.1991 - 08.1996] MCV10,VCV10 |
58741-33010 |
US $56.49 |
||
|
58742B
|
58742B
58742-33010 Protector, Quarter Panel, Lh[07.1991 - 08.1996] MCV10,VCV10 |
58742-33010 |
US $56.49 |
||
|
61035
|
61035
61165-33010 Bracket Sub-Assy, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [07.1991 - 08.1996] MCV10,VCV10 |
61165-33010 |
US $27.66 |
||
|
61037A
|
61037A
61037-32020 Reinforcement Sub-Assy, Center Body Pillar, Rh[07.1991 - 08.1996] MCV10,VCV10 |
61037-32020 |
US $158.70 |
||
|
61038A
|
61038A
61038-32020 Reinforcement Sub-Assy, Center Body Pillar, Lh[07.1991 - 08.1996] MCV10,VCV10 |
61038-32020 |
US $158.70 |
||
|
61101
|
61101
61101-33906 Panel Sub-Assy, Cowl Side, Rh[03.1992 - 08.1996] MCV10,VCV10 |
61101-33906 |
US $122.30 |
||
|
61102
|
61102
61102-33908 Panel Sub-Assy, Cowl Side, Lh[03.1992 - 08.1996] MCV10,VCV10 |
61102-33908 |
US $122.30 |
||
|
61108A
|
61108A
61108-33900 Reinforce Sub-Assy, Front Body Pillar, Lower Rh[07.1991 - 08.1994] MCV10,VCV10 |
61108-33900 |
US $246.06 |
||
| replacement | |||||
|
61108A
|
61108A
61108-33902 Reinforce Sub-Assy, Front Body Pillar, Lower Rh[07.1991 - 08.1994] MCV10,VCV10 |
61108-33902 |
US $235.87 |
||
|
61108A
|
61108A
61108-33902 Reinforce Sub-Assy, Front Body Pillar, Lower Rh[08.1994 - 08.1996] MCV10 |
61108-33902 |
US $235.87 |
||
|
61109A
|
61109A
61109-33900 Reinforce Sub-Assy, Front Body Pillar, Lower Lh[07.1991 - 08.1994] MCV10,VCV10 |
61109-33900 |
US $246.06 |
||
| replacement | |||||
|
61109A
|
61109A
61109-33902 Reinforce Sub-Assy, Front Body Pillar, Lower Lh[07.1991 - 08.1994] MCV10,VCV10 |
61109-33902 |
US $235.87 |
||
|
61109A
|
61109A
61109-33902 Reinforce Sub-Assy, Front Body Pillar, Lower Lh[08.1994 - 08.1996] MCV10 |
61109-33902 |
US $235.87 |
||
|
61113A
|
61113A
61113-32020 Panel, Side, Outer No.2 Rh[07.1991 - 10.1993] MCV10,VCV10 |
61113-32020 |
US $557.65 |
||
| replacement | |||||
|
61113A
|
61113A
61113-32021 Panel, Side, Outer No.2 Rh[07.1991 - 10.1993] MCV10,VCV10 |
61113-32021 |
US $557.65 |
||
|
61113A
|
61113A
61113-32021 Panel, Side, Outer No.2 Rh[10.1993 - 08.1996] MCV10 |
61113-32021 |
US $557.65 |
||
|
61114B
|
61114B
61114-32020 Panel, Side, Outer No.2 Lh[07.1991 - 10.1993] MCV10,VCV10 |
61114-32020 |
US $557.65 |
||
| replacement | |||||
|
61114B
|
61114B
61114-32021 Panel, Side, Outer No.2 Lh[07.1991 - 10.1993] MCV10,VCV10 |
61114-32021 |
US $557.65 |
||
|
61114B
|
61114B
61114-32021 Panel, Side, Outer No.2 Lh[10.1993 - 08.1996] MCV10 |
61114-32021 |
US $557.65 |
||
|
61131
|
61131
61131-32120 Pillar, Front Body, Upper Outer Rh[07.1991 - 08.1996] MCV10,VCV10 |
61131-32120 |
US $152.88 |
||
|
61132
|
61132
61132-32120 Pillar, Front Body, Upper Outer Lh[07.1991 - 08.1996] MCV10,VCV10 |
61132-32120 |
US $152.88 |
||
|
61145B
|
61145B
61145-33010 Gusset, Front Body Pillar, Lower Rh[07.1991 - 08.1996] MCV10,VCV10 |
61145-33010 |
US $39.60 |
||
|
61146B
|
61146B
61146-33010 Gusset, Front Body Pillar, Lower Lh[07.1991 - 08.1996] MCV10,VCV10 |
61146-33010 |
US $39.60 |
||
|
61211
|
61211
61211-32080 Rail, Roof Side, Outer Rh[07.1991 - 08.1996] MCV10,VCV10 |
61211-32080 |
US $81.54 |
||
|
61212
|
61212
61212-32080 Rail, Roof Side, Outer Lh[07.1991 - 08.1996] MCV10,VCV10 |
61212-32080 |
US $81.54 |
||
|
61231
|
61231
61231-33020 Rail, Roof Side, Inner Rh[07.1991 - 08.1996] MCV10,VCV10 |
61231-33020 |
US $81.54 |
||
|
61232
|
61232
61232-33020 Rail, Roof Side, Inner Lh[07.1991 - 08.1996] MCV10,VCV10 |
61232-33020 |
US $81.54 |
||
|
61261
|
61261
61261-32070 Channel, Roof Drip, Rh[07.1991 - 08.1996] MCV10,VCV10 |
61261-32070 |
US $25.63 |
||
|
61262
|
61262
61262-32070 Channel, Roof Drip, Lh[07.1991 - 08.1996] MCV10,VCV10 |
61262-32070 |
US $25.63 |
||
|
61267A
|
61267A
61267-32030 Channel, Roof Drip Side, Rear Rh[07.1991 - 08.1996] MCV10,VCV10 |
61267-32030 |
US $17.76 |
||
|
61268
|
61268
61268-32030 Channel, Roof Drip Side, Rear Lh[07.1991 - 08.1996] MCV10,VCV10 |
61268-32030 |
US $17.76 |
||
|
61343A
|
61343A
61343-32080 Pillar, Center Body, Inner Rh[07.1991 - 08.1996] MCV10,VCV10 |
61343-32080 |
US $215.49 |
||
|
61344A
|
61344A
61344-32080 Pillar, Center Body, Inner Lh[07.1991 - 08.1996] MCV10,VCV10 |
61344-32080 |
US $215.49 |
||
|
61418A
|
61418A
61418-32020 Reinforcement, Rocker Panel, Rh[07.1991 - 08.1996] MCV10,VCV10 |
61418-32020 |
US $31.74 |
||
|
61419A
|
61419A
61419-32020 Reinforcement, Rocker Panel, Lh[07.1991 - 08.1996] MCV10,VCV10 |
61419-32020 |
US $31.74 |
||
|
61611
|
61611
61601-33904
Panel, Quarter, Rh
[07.1991 - 08.1996] MCV10,VCV10 |
61601-33904 |
— | ||
| replacement | |||||
|
61611
|
61611
61601-33906 Panel, Quarter, Rh[07.1991 - 08.1996] MCV10,VCV10 |
61601-33906 |
US $926.02 |
||
|
61612
|
61612
61602-33040 Panel, Quarter, Lh[06.1992 - 08.1996] MCV10,VCV10 |
61602-33040 |
US $926.02 |
||
|
61615B
|
61615B
61615-33020 Reinforcement, Quarter Panel, Outer Front[07.1991 - 08.1996] MCV10,VCV10 |
61615-33020 |
US $27.52 |
||
|
61616B
|
61616B
61616-33020 Reinforcement, Quarter Panel, Outer Rear[07.1991 - 08.1996] MCV10,VCV10 |
61616-33020 |
US $27.52 |
||
|
61621C
|
61621C
61621-32050 Trough, Luggage Compartment Opening, Rh[07.1991 - 08.1996] MCV10,VCV10 |
61621-32050 |
US $30.43 |
||
|
61622C
|
61622C
61622-32050 Trough, Luggage Compartment Opening, Lh[07.1991 - 08.1996] MCV10,VCV10 |
61622-32050 |
US $30.43 |
||
|
61633A
|
61633A
61603-33030 Panel, Quarter Wheel House, Inner Rh[07.1991 - 08.1996] MCV10,VCV10 |
61603-33030 |
US $327.60 |
||
| replacements | |||||
|
61633A
|
61633A
61603-33080 Reinforcement Sub-assy, Expansion Tank[07.1991 - 08.1996] MCV10,VCV10 |
61603-33080 |
US $327.60 |
||
|
61633A
|
61633A
90950-01872 Plug, Hole, No.3(For Dash Panel)[07.1991 - 08.1996] MCV10,VCV10 |
90950-01872 |
from US $2.29 |
||
|
61634A
|
61634A
61604-33030 Panel, Quarter Wheel House, Inner Lh[07.1991 - 08.1996] MCV10,VCV10 |
61604-33030 |
US $327.60 |
||
| replacements | |||||
|
61634A
|
61634A
61604-33090 Panel, Quarter Wheel House, Inner Lh[07.1991 - 08.1996] MCV10,VCV10 |
61604-33090 |
US $327.60 |
||
|
61634A
|
61634A
90950-01872 Plug, Hole, No.3(For Dash Panel)[07.1991 - 08.1996] MCV10,VCV10 |
90950-01872 |
from US $2.29 |
||
|
61667C
|
61667C
61667-33020 Seal, Qaurter Panel, No.1[07.1991 - 08.1996] MCV10,VCV10 |
61667-33020 |
US $28.83 |
||
|
61711
|
61711
61711-32070 Panel, Roof Side, Outer Rh[07.1991 - 08.1996] MCV10,VCV10 |
61711-32070 |
US $96.10 |
||
|
61712
|
61712
61712-32070 Panel, Roof Side, Outer Lh[07.1991 - 08.1996] MCV10,VCV10 |
61712-32070 |
US $96.10 |
||
|
61719D
|
61719D
61719-32020 Bracket, Roof Side, Inner Rh[07.1991 - 08.1996] MCV10,VCV10 |
61719-32020 |
US $6.26 |
||
|
61719E
|
61719E
61719-32020 Bracket, Roof Side, Inner Rh[07.1991 - 08.1996] MCV10,VCV10 |
61719-32020 |
US $6.26 |
||
|
61731B
|
61731B
61731-33030 Panel, Roof Side, Inner Rh[02.1992 - 08.1996] MCV10,VCV10 |
61731-33030 |
US $380.02 |
||
|
61732B
|
61732B
61732-33030 Panel, Roof Side, Inner Lh[02.1992 - 08.1996] MCV10,VCV10 |
61732-33030 |
US $380.02 |
||
|
61815B
|
61815B
61815-32050 Cover, Roof Side, Inner Upper Rh[07.1991 - 08.1996] MCV10,VCV10 |
61815-32050 |
US $8.59 |
||
|
61816B
|
61816B
61816-32030 Cover, Roof Side, Inner Upper Lh[07.1991 - 08.1996] MCV10,VCV10 |
61816-32030 |
US $8.59 |
||
|
61824
|
61824
61824-20100 Plate, Noise Control, No.1[07.1991 - 08.1996] MCV10,VCV10 W(*MR) |
61824-20100 |
US $2.04 |
||
|
61825A
|
61825A
61826-33010 Plate, Noise Control, No.2[08.1993 - 08.1996] MCV10 |
61826-33010 |
US $6.99 |
||
| replacement | |||||
|
61825A
|
61825A
61825-12010 Cover, Roof Side, Inner Upper Rh[08.1993 - 08.1996] MCV10 |
61825-12010 |
US $2.04 |
||
|
61838B
|
61838B
61838-32010 Plate, Noise Control, No.5[07.1991 - 08.1996] MCV10,VCV10 |
61838-32010 |
US $9.90 |
||
|
62939A
|
62939A
62939-32020 Pad, Cowl Side Silencer[07.1991 - 08.1996] MCV10,VCV10 |
62939-32020 |
US $6.70 |
||
|
64125A
|
64125A
61707-33010 Bracket, Upper Back Panel, Rh[07.1991 - 08.1996] MCV10,VCV10 |
61707-33010 |
US $30.87 |
||
|
64126A
|
64126A
61708-33010 Bracket, Upper Back Panel, Lh[07.1991 - 08.1996] MCV10,VCV10 |
61708-33010 |
US $30.87 |
||
|
64141C
|
64141C
64141-33010 Silencer, Upper Back Panel, No.1[07.1991 - 08.1996] MCV10,VCV10 |
64141-33010 |
US $5.24 |
||
|
9016840116
|
9016840116
90168-40116 SCREW,TAPPING |
90168-40116 |
from US $0.72 |
||
| replacement | |||||
|
9016840116
|
9016840116
90080-16112 New Genuine Part |
90080-16112 |
US $2.97 |
||
|
9017908086
|
9017908086
90179-08086 New Genuine Part |
90179-08086 |
US $3.20 |
||
|
9018904145
|
9018904145
90189-04145 New Genuine Part |
90189-04145 |
US $1.16 |
||
|
9018904175
|
9018904175
90189-04175 New Genuine Part |
90189-04175 |
US $2.08 |
||
|
9018906157
|
9018906157
90189-06157 GROMMET SCREW |
90189-06157 |
from US $0.78 |
||
|
9033315002
|
9033315002
90333-15002 PLUG |
90333-15002 |
from US $1.44 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9033330004
|
9033330004
90333-30004 PLUG |
90333-30004 |
US $0.96 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.12 |
||
|
9046705045
|
9046705045
90467-05045
Clip(For Front Fender Seal)
|
90467-05045 |
— | ||
| replacement | |||||
|
9046705045
|
9046705045
90467-05045-22 Clip(For Front Fender Seal) |
90467-05045-22 |
US $1.44 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001580
|
9095001580
90950-01580 Plug, Hole(For Clutch Under Cover) |
90950-01580 |
US $3.68 |
||
|
9095001826
|
9095001826
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9162160616
|
9162160616
91621-60616
New Genuine Part
|
91621-60616 |
— | ||
| replacement | |||||
|
9162160616
|
9162160616
91621-B0616 Bolt |
91621-B0616 |
from US $0.94 |
||
|
9165540818
|
9165540818
91655-40818
New Genuine Part
|
91655-40818 |
— | ||
| replacement | |||||
|
9165540818
|
9165540818
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
|
904670500411
|
904670500411
90467-05004-11
Clip(For Luggage Compartment Trim Rear Cover)
|
90467-05004-11 |
— | ||
