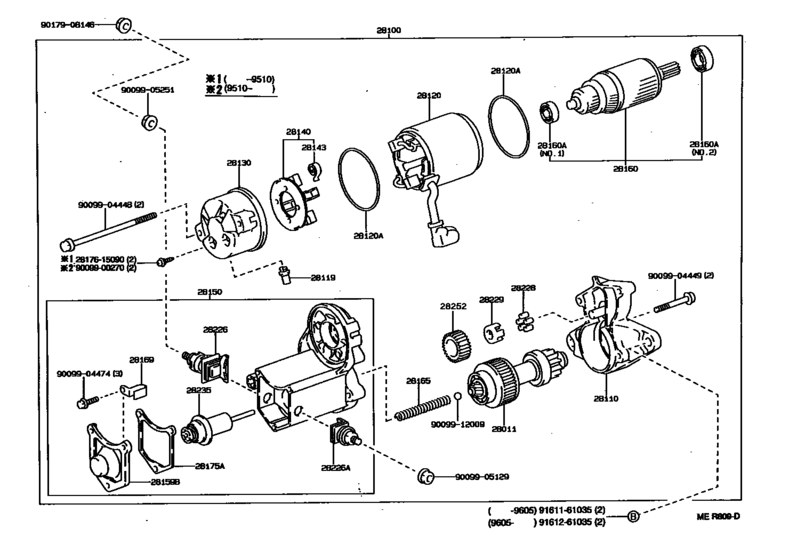

Starter ([07.1991 - 08.1996] 12V 1.4KW (9107-9608)) Diagram Toyota LEXUS ES
- Year
- 1993 - 1996
- Sales region
- U.S.A.
- Frame
- MCV10
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1993
- To
- 08.1996
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-74070 Clutch Sub-Assy, Starter[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
28011-74070 |
US $189.28 |
||
|
28100
|
28100
28100-03030 Starter Assy[04.1992 - 08.1994] 1MZFE,3VZFE..MCV10,VCV10 12V 1.4KW,*ND USA |
28100-03030 |
US $982.80 |
||
|
28100
|
28100
28100-03070 Starter Assy[08.1994 - 08.1996] 1MZFE..MCV10 12V 1.4KW,*ND USA |
28100-03070 |
US $1,557.92 |
||
|
28100
|
28100
28100-74100 Starter Assy[04.1992 - 08.1994] 1MZFE,3VZFE..MCV10,VCV10 12V 1.4KW,*ND |
28100-74100 |
US $1,412.32 |
||
|
28100
|
28100
28100-74140 Starter Assy[08.1994 - 08.1996] 1MZFE..MCV10 12V 1.4KW,*ND |
28100-74140 |
US $1,415.23 |
||
|
28110
|
28110
28110-74100 Housing Assy, Starter Drive[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
28110-74100 |
US $90.27 |
||
|
28119
|
28119
28199-74110 Cover, Starter End Frame[08.1993 - 08.1996] 1MZFE..MCV10 |
28199-74110 |
US $2.97 |
||
|
28120
|
28120
28120-66040
Yoke Assy, Starter
[09.1994 - 08.1996] 1MZFE..MCV10 |
28120-66040 |
— | ||
|
28120
|
28120
28120-74070
Yoke Assy, Starter
[07.1991 - 09.1994] 1MZFE,3VZFE..MCV10,VCV10 |
28120-74070 |
— | ||
|
28120A
|
28120A
90099-14064 Rubber(For Starter Yoke)[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
90099-14064 |
from US $3.67 |
||
|
28130
|
28130
28130-74100
Frame Assy, Starter Commutator End
[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
28130-74100 |
— | ||
|
28140
|
28140
28140-74070
Holder Assy, Starter Brush
[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
28140-74070 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
90099-17112 |
— | ||
|
28150
|
28150
28150-74130 Switch Assy, Magnet Starter[08.1993 - 09.1994] 1MZFE..MCV10 |
28150-74130 |
US $214.03 |
||
| replacement | |||||
|
28150
|
28150
28150-74180 Switch Assy, Magnet Starter[08.1993 - 09.1994] 1MZFE..MCV10 |
28150-74180 |
US $214.03 |
||
|
28150
|
28150
28150-74140 Switch Assy, Magnet Starter[09.1994 - 08.1996] 1MZFE..MCV10 |
28150-74140 |
US $208.21 |
||
|
28159B
|
28159B
28159-55050
Cover, Starter Protector
[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
28159-55050 |
— | ||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
28160-74070 |
— | ||
|
28160A
|
28160A
90099-10196 Bearing, Starter Armature[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 NO.1 |
90099-10196 |
from US $6.12 |
||
|
28160A
|
28160A
90099-10197 Bearing, Starter Armature[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 NO.2 |
90099-10197 |
US $7.34 |
||
|
28165
|
28165
28165-74070
Spring, Starter Magnet Switch Return
[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
28165-74070 |
— | ||
|
28169
|
28169
28169-55050
Clamp, Starter Motor Lead Wire
[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
28169-55050 |
— | ||
|
28175A
|
28175A
28175-55050 Gasket, Magnet Switch Cover[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
28175-55050 |
US $1.92 |
||
|
28226
|
28226
28226-16130
Starter Kit, Battery Terminal
[07.1991 - 08.1994] 1MZFE,3VZFE..MCV10,VCV10 |
28226-16130 |
— | ||
|
28226
|
28226
28226-55050
Starter Kit, Battery Terminal
[08.1994 - 08.1996] 1MZFE..MCV10 |
28226-55050 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-64370 Starter Kit, Battery Terminal[08.1994 - 08.1996] 1MZFE..MCV10 |
28226-64370 |
from US $7.59 |
||
|
28226A
|
28226A
28226-74070 Starter Kit, Battery Terminal[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
28226-74070 |
US $9.61 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
28228-26040 |
— | ||
|
28229
|
28229
28229-74070 Retainer, Starter Idle Gear[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
28229-74070 |
US $1.50 |
||
|
28235
|
28235
28235-74130
Plunger, Magnet Switch
[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
28235-74130 |
— | ||
|
28252
|
28252
28254-74070
Pinion, Starter Drive
[07.1991 - 08.1996] 1MZFE,3VZFE..MCV10,VCV10 |
28254-74070 |
— | ||
|
2817615090
|
2817615090
28176-15090
Screw, Starter
|
28176-15090 |
— | ||
| replacement | |||||
|
2817615090
|
2817615090
28176-87701
Screw, Starter
|
28176-87701 |
— | ||
|
9009900270
|
9009900270
90099-00270
Screw, Starter
|
90099-00270 |
— | ||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904474
|
9009904474
90099-04474
New Genuine Part
|
90099-04474 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009905251
|
9009905251
90099-05251
New Genuine Part
|
90099-05251 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
