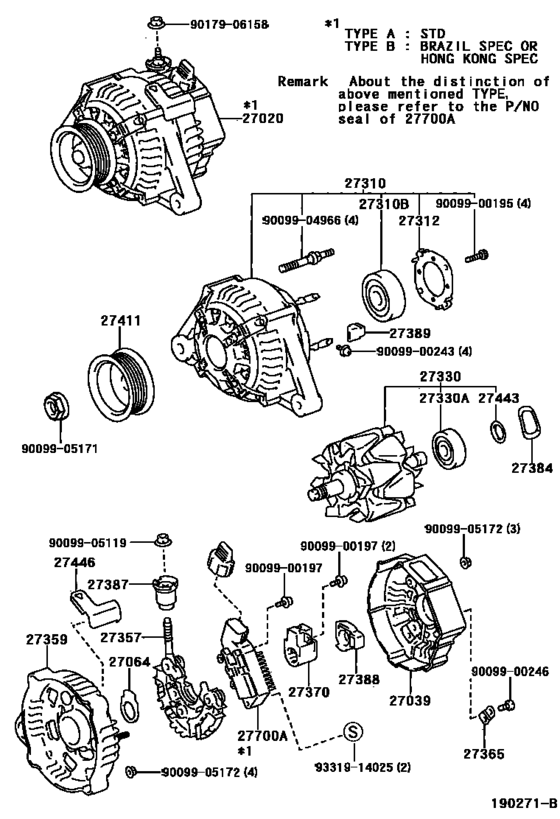

Alternator ([08.1996 - 08.1999] (9608-9908)) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- U.S.A.
- Frame
- MCV20
- ENGINE
- 1MZFE
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-20060 Alternator Assy[08.1997 - 08.1999] 1MZFE..MCV20..USA 12V 80A,TYPE B:REFER TO ILLUSTRATION |
27060-20060 |
US $1,645.28 |
||
|
27020
|
27020
27060-20070 Alternator Assy[08.1996 - 08.1999] 1MZFE..MCV20 12V 80A,TYPE A:REFER TO ILLUSTRATION |
27060-20070 |
US $1,645.28 |
||
|
27020
|
27020
27060-20120 Alternator Assy[08.1999 -] 1MZFE..MCV20 12V 80A |
27060-20120 |
US $1,371.55 |
||
| replacement | |||||
|
27020
|
27020
27060-20160 Alternator Assy[08.1999 -] 1MZFE..MCV20 12V 80A |
27060-20160 |
US $1,645.28 |
||
|
27020
|
27020
27060-20160 Alternator Assy[08.1999 -] 1MZFE..MCV20..USA 12V 80A,BRAZIL SPEC |
27060-20160 |
US $1,645.28 |
||
|
27039
|
27039
27039-20020
Cover, Alternator Rear End
[08.1996 - 04.2001] 1MZFE..MCV20 |
27039-20020 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-28090
Cover, Alternator Rear End
[08.1996 - 04.2001] 1MZFE..MCV20 |
27039-28090 |
— | ||
|
27039
|
27039
27039-28090
Cover, Alternator Rear End
[04.2001 -] 1MZFE..MCV20 |
27039-28090 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[08.1996 -] 1MZFE..MCV20 |
27064-42010 |
from US $2.10 |
||
|
27310
|
27310
27310-20030
Frame Assy, Drive End, Alternator
[08.1996 -] 1MZFE..MCV20 |
27310-20030 |
— | ||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[08.1996 -] 1MZFE..MCV20 |
90099-10192 |
from US $15.03 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[08.1996 -] 1MZFE..MCV20 |
27312-42010 |
— | ||
|
27330
|
27330
27330-72280
Rotor Assy, Alternator
[08.1996 - 04.2000] 1MZFE..MCV20 |
27330-72280 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-74550 Rotor Assy, Alternator[08.1996 - 04.2000] 1MZFE..MCV20 |
27330-74550 |
US $176.47 |
||
|
27330
|
27330
27330-74550 Rotor Assy, Alternator[04.2000 -] 1MZFE..MCV20 |
27330-74550 |
US $176.47 |
||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1996 -] 1MZFE..MCV20 |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-55080 Holder, Alternator, W/rectifier[08.1996 -] 1MZFE..MCV20 |
27357-55080 |
from US $82.47 |
||
|
27359
|
27359
27359-20020
Frame, Alternator Rectifier End
[08.1996 -] 1MZFE..MCV20 |
27359-20020 |
— | ||
|
27365
|
27365
27365-55080
Plate, Terminal
[08.1996 -] 1MZFE..MCV20 |
27365-55080 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[08.1996 -] 1MZFE..MCV20 |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[08.1996 -] 1MZFE..MCV20 |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-42020
Insulator, Terminal
[08.1996 - 08.1997] 1MZFE..MCV20 |
27387-42020 |
— | ||
|
27387
|
27387
27387-42021
Insulator, Terminal
[08.1997 -] 1MZFE..MCV20 |
27387-42021 |
— | ||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[08.1996 -] 1MZFE..MCV20 |
27388-42010 |
US $10.66 |
||
|
27389
|
27389
27389-42010
Insulator, Terminal
[08.1996 -] 1MZFE..MCV20 |
27389-42010 |
— | ||
|
27411
|
27411
27411-20020
Pulley, Alternator
[08.1996 - 08.1999] 1MZFE..MCV20 |
27411-20020 |
— | ||
|
27411
|
27411
27411-46080
Pulley, Alternator
[08.1999 -] 1MZFE..MCV20 |
27411-46080 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1996 -] 1MZFE..MCV20 |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-20050
Clip, Alternator Cord
[08.1996 -] 1MZFE..MCV20 |
27446-20050 |
— | ||
|
27700A
|
27700A
27700-20050 Regulator Assy, Generator[08.1996 -] 1MZFE..MCV20 TYPE A:REFER TO ILLUSTRATION |
27700-20050 |
US $262.08 |
||
|
27700A
|
27700A
27700-46060 Regulator Assy, Generator[08.1999 -] 1MZFE..MCV20..USA |
27700-46060 |
US $279.55 |
||
|
27700A
|
27700A
27700-62010 Regulator Assy, Generator[08.1997 - 08.1999] 1MZFE..MCV20..USA TYPE B:REFER TO ILLUSTRATION |
27700-62010 |
US $264.99 |
||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
