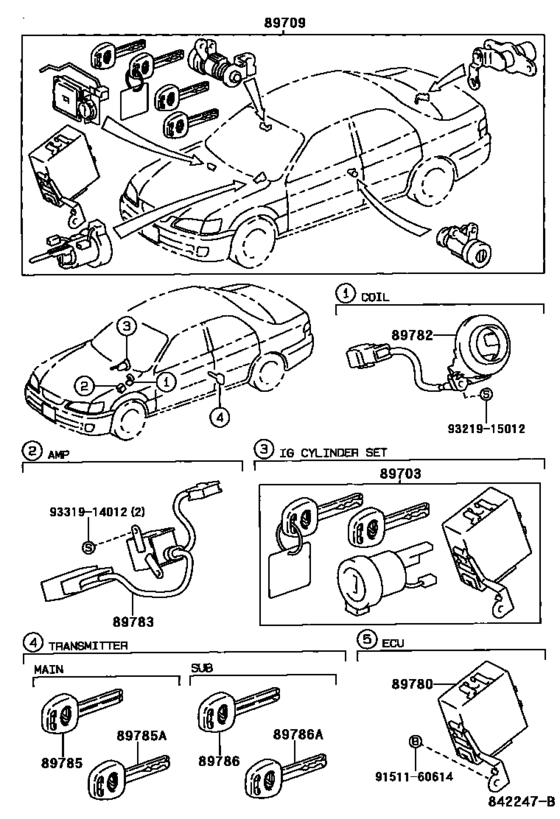

Anti-Theft Device ([08.1998 - 08.1999] BRAZIL SPEC (9808-9908)USA) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- U.S.A.
- Frame
- MCV20
- ENGINE
- 1MZFE
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89703
|
89703
89703-33040
Cylinder & Key Set, Ignition W/transponder
[08.1997 - 08.1999] MCV20 |
89703-33040 |
— | ||
|
89703
|
89703
89703-33060
Cylinder & Key Set, Ignition W/transponder
[08.1998 - 08.1999] MCV20..USA BRAZIL SPEC |
89703-33060 |
— | ||
|
89709
|
89709
89709-33080
Computer Set, Transponder Key
[08.1998 - 08.1999] MCV20..USA BRAZIL SPEC |
89709-33080 |
— | ||
|
89780
|
89780
89780-33040
Computer Assy, Transponder Key
[08.1998 - 08.1999] MCV20..USA BRAZIL SPEC |
89780-33040 |
— | ||
|
89780
|
89780
89780-33060
Computer Assy, Transponder Key
[08.1999 - 10.1999] MCV20..USA |
89780-33060 |
— | ||
|
89780
|
89780
89780-33080
Computer Assy, Transponder Key
[10.1999 -] MCV20..USA |
89780-33080 |
— | ||
|
89782
|
89782
89782-33020
Coil, Transponder Key
[08.1997 - 08.1999] MCV20 |
89782-33020 |
— | ||
|
89782
|
89782
89782-33030
Coil, Transponder Key
[08.1999 -] MCV20 |
89782-33030 |
— | ||
|
89783
|
89783
89783-33010
Amplifier, Transponder Key
[08.1998 - 08.1999] MCV20..USA BRAZIL SPEC |
89783-33010 |
— | ||
|
89783
|
89783
89783-33020
Amplifier, Transponder Key
[08.1997 - 08.1999] MCV20 |
89783-33020 |
— | ||
|
89783
|
89783
89783-33030
Amplifier, Transponder Key
[08.1999 -] MCV20 |
89783-33030 |
— | ||
|
89783
|
89783
89783-33050
Amplifier, Transponder Key
[08.1999 -] MCV20..USA BRAZIL SPEC |
89783-33050 |
— | ||
|
89785
|
89785
89785-30020
Transmitter, Transponder Key Master
[08.1997 - 08.1999] MCV20 |
89785-30020 |
— | ||
|
89785A
|
89785A
89785-50010 Transmitter, Transponder Cut Key MasterTRANSPONDER CUT KEY MASTER [08.1997 - 08.1999] MCV20 |
89785-50010 |
US $165.98 |
||
|
89786
|
89786
89786-30020 Transmitter, Transponder Key SubTRANSPONDER KEY SUB [08.1997 -] MCV20 |
89786-30020 |
US $168.90 |
||
|
89786A
|
89786A
89786-50010 Transmitter, Transponder Cut Key SubTRANSPONDER CUT KEY SUB [08.1997 -] MCV20 |
89786-50010 |
US $168.90 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9321915012
|
9321915012
93219-15012 New Genuine Part |
93219-15012 |
US $2.72 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
