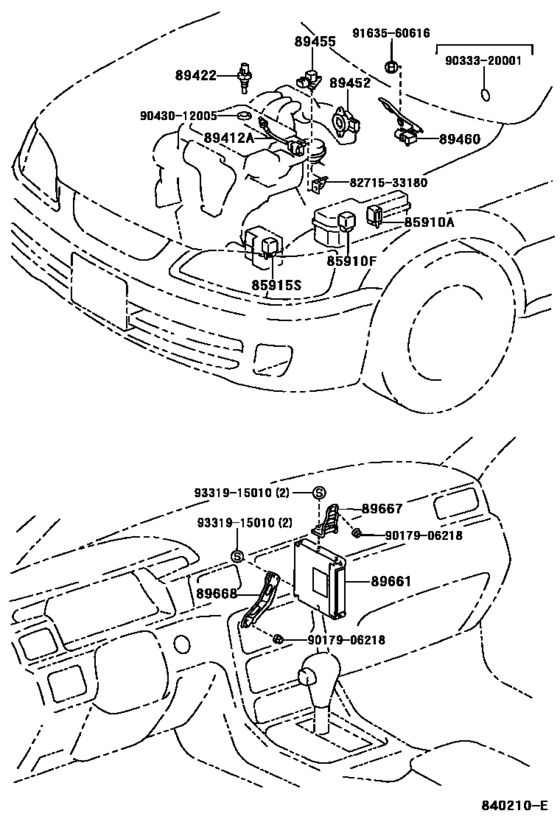

Electronic Fuel Injection System ([08.1996 - ] (9608- )) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- U.S.A.
- Frame
- MCV20
- ENGINE
- 1MZFE
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02012 Relay, Ignition, No.1[08.1996 -] MCV20 |
90987-02012 |
from US $27.85 |
||
|
85910F
|
85910F
90987-02012 Relay, Ignition, No.1[08.1996 -] MCV20 |
90987-02012 |
from US $27.85 |
||
|
85915S
|
85915S
90987-02012 Relay, Ignition, No.1[08.1997 - 08.1998] MCV20..USA |
90987-02012 |
from US $27.85 |
||
|
89412A
|
89412A
89412-33050 Sensor, E.g.r Gas TemperatureE.G.R GAS TEMPERATURE [08.1996 - 08.1998] MCV20 |
89412-33050 |
US $139.78 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[08.1996 -] MCV20 |
89422-35010 |
from US $40.58 |
||
|
89452
|
89452
89452-33030 Sensor, Throttle Position (For E.f.i.)[05.2000 -] MCV20 |
89452-33030 |
from US $40.89 |
||
|
89452
|
89452
89452-33040
Sensor, Throttle Position (For E.f.i.)
[08.1996 - 05.2000] MCV20 |
89452-33040 |
— | ||
| replacement | |||||
|
89452
|
89452
89452-33030 Sensor, Throttle Position (For E.f.i.)[08.1996 - 05.2000] MCV20 |
89452-33030 |
from US $40.89 |
||
|
89455
|
89455
89455-33020
Sensor, Egr Valve Position
[08.1996 - 08.1998] MCV20 |
89455-33020 |
— | ||
|
89460
|
89460
89460-06030
Sensor Assy, Vapor Pressure
[07.1997 - 08.1998] MCV20 |
89460-06030 |
— | ||
|
89460
|
89460
89460-06050
Sensor Assy, Vapor Pressure
[08.1998 - 08.1999] MCV20 |
89460-06050 |
— | ||
|
89460
|
89460
89460-07030
Sensor Assy, Vapor Pressure
[08.1999 -] MCV20 PART NUMBER LABEL=89460-07030 |
89460-07030 |
— | ||
|
89460
|
89460
89460-33010
Sensor Assy, Vapor Pressure
[08.1999 -] MCV20 PART NUMBER LABEL=89460-33010 |
89460-33010 |
— | ||
|
89460
|
89460
89460-33030 Sensor Assy, Vapor PressureVAPOR PRESSURE [08.1996 - 07.1997] MCV20 |
89460-33030 |
US $187.82 |
||
|
89661
|
89661
89661-06320
Computer, Engine Control
[08.1996 - 02.1997] MCV20..USA (L) |
89661-06320 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-06321
Computer, Engine Control
[08.1996 - 02.1997] MCV20..USA (L) |
89661-06321 |
— | ||
|
89661
|
89661
89661-06321
Computer, Engine Control
[02.1997 - 08.1997] MCV20..USA (L) |
89661-06321 |
— | ||
|
89661
|
89661
89661-06330
Computer, Engine Control
[08.1996 - 02.1997] MCV20 W(TRACTION CONTROL),(L) |
89661-06330 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-06331
Computer, Engine Control
[08.1996 - 02.1997] MCV20 W(TRACTION CONTROL),(L) |
89661-06331 |
— | ||
|
89661
|
89661
89661-06331
Computer, Engine Control
[02.1997 - 08.1997] MCV20 W(TRACTION CONTROL) |
89661-06331 |
— | ||
|
89661
|
89661
89661-06590
Computer, Engine Control
[08.1997 - 02.1998] MCV20..CND; MCV20..USA W(TRACTION CONTROL) |
89661-06590 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-06591
Computer, Engine Control
[08.1997 - 02.1998] MCV20..CND; MCV20..USA W(TRACTION CONTROL) |
89661-06591 |
— | ||
|
89661
|
89661
89661-06591
Computer, Engine Control
[02.1998 - 08.1998] MCV20..CND; MCV20..USA W(TRACTION CONTROL) |
89661-06591 |
— | ||
|
89661
|
89661
89661-06601
Computer, Engine Control
[08.1997 - 11.1997] MCV20..USA CALIFORNIA SPEC |
89661-06601 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-06603
Computer, Engine Control
[08.1997 - 11.1997] MCV20..USA CALIFORNIA SPEC |
89661-06603 |
— | ||
|
89661
|
89661
89661-06602
Computer, Engine Control
[11.1997 - 02.1998] MCV20..USA CALIFORNIA SPEC |
89661-06602 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-06603
Computer, Engine Control
[11.1997 - 02.1998] MCV20..USA CALIFORNIA SPEC |
89661-06603 |
— | ||
|
89661
|
89661
89661-06603
Computer, Engine Control
[02.1998 - 08.1998] MCV20..USA CALIFORNIA SPEC |
89661-06603 |
— | ||
|
89661
|
89661
89661-06611
Computer, Engine Control
[08.1997 - 11.1997] MCV20..USA CALIFORNIA SPEC & W(TRACTION CONTROL) |
89661-06611 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-06613
Computer, Engine Control
[08.1997 - 11.1997] MCV20..USA CALIFORNIA SPEC & W(TRACTION CONTROL) |
89661-06613 |
— | ||
|
89661
|
89661
89661-06612
Computer, Engine Control
[11.1997 - 02.1998] MCV20..USA CALIFORNIA SPEC & W(TRACTION CONTROL) |
89661-06612 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-06613
Computer, Engine Control
[11.1997 - 02.1998] MCV20..USA CALIFORNIA SPEC & W(TRACTION CONTROL) |
89661-06613 |
— | ||
|
89661
|
89661
89661-06613
Computer, Engine Control
[02.1998 - 08.1998] MCV20..USA CALIFORNIA SPEC & W(TRACTION CONTROL) |
89661-06613 |
— | ||
|
89661
|
89661
89661-0W100
Computer, Engine Control
[08.1998 - 10.1998] MCV20 |
89661-0W100 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0W104
Computer, Engine Control
[08.1998 - 10.1998] MCV20 |
89661-0W104 |
— | ||
|
89661
|
89661
89661-0W101
Computer, Engine Control
[10.1998 - 01.1999] MCV20 |
89661-0W101 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0W104
Computer, Engine Control
[10.1998 - 01.1999] MCV20 |
89661-0W104 |
— | ||
|
89661
|
89661
89661-0W102
Computer, Engine Control
[01.1999 - 04.1999] MCV20 |
89661-0W102 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0W104
Computer, Engine Control
[01.1999 - 04.1999] MCV20 |
89661-0W104 |
— | ||
|
89661
|
89661
89661-0W103
Computer, Engine Control
[04.1999 - 08.1999] MCV20 |
89661-0W103 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0W104
Computer, Engine Control
[04.1999 - 08.1999] MCV20 |
89661-0W104 |
— | ||
|
89661
|
89661
89661-0W120
Computer, Engine Control
[08.1999 - 01.2000] MCV20 DENSO USA |
89661-0W120 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0W122
Computer, Engine Control
[08.1999 - 01.2000] MCV20 DENSO USA |
89661-0W122 |
— | ||
|
89661
|
89661
89661-0W121
Computer, Engine Control
[01.2000 - 08.2000] MCV20 DENSO USA |
89661-0W121 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0W122
Computer, Engine Control
[01.2000 - 08.2000] MCV20 DENSO USA |
89661-0W122 |
— | ||
|
89661
|
89661
89661-0W151
Computer, Engine Control
[08.2000 -] MCV20 DENSO USA |
89661-0W151 |
— | ||
|
89661
|
89661
89661-33790 Computer, Engine ControlENGINE CONTROL [08.1996 - 01.1997] MCV20..USA (J) |
89661-33790 |
US $1,936.48 |
||
| replacement | |||||
|
89661
|
89661
89661-33791 Computer, Engine ControlENGINE CONTROL [08.1996 - 01.1997] MCV20..USA (J) |
89661-33791 |
US $1,936.48 |
||
|
89661
|
89661
89661-33791 Computer, Engine ControlENGINE CONTROL [01.1997 - 08.1997] MCV20..USA (J) |
89661-33791 |
US $1,936.48 |
||
|
89661
|
89661
89661-33810 Computer, Engine ControlENGINE CONTROL [08.1996 - 01.1997] MCV20 W(TRACTION CONTROL),(J) |
89661-33810 |
US $2,111.20 |
||
| replacement | |||||
|
89661
|
89661
89661-33811 Computer, Engine ControlENGINE CONTROL [08.1996 - 01.1997] MCV20 W(TRACTION CONTROL),(J) |
89661-33811 |
US $2,140.32 |
||
|
89661
|
89661
89661-33830 Computer, Engine ControlENGINE CONTROL [08.1997 - 08.1998] MCV20..USA BRAZIL SPEC |
89661-33830 |
US $1,936.48 |
||
|
89661
|
89661
89661-33840 Computer, Engine ControlENGINE CONTROL [08.1998 -] MCV20..USA BRAZIL SPEC |
89661-33840 |
US $1,936.48 |
||
|
89661
|
89661
89661-3T310 Computer, Engine ControlENGINE CONTROL [08.1997 - 02.1998] MCV20..USA |
89661-3T310 |
US $1,936.48 |
||
| replacement | |||||
|
89661
|
89661
89661-3T311
Computer, Engine Control
[08.1997 - 02.1998] MCV20..USA |
89661-3T311 |
— | ||
|
89661
|
89661
89661-3T311
Computer, Engine Control
[02.1998 - 08.1998] MCV20..USA |
89661-3T311 |
— | ||
|
89661
|
89661
89661-3T320 Computer, Engine ControlENGINE CONTROL [08.1997 - 02.1998] MCV20..CND DENSO; MCV20..USA W(TRACTION CONTROL),DENSO |
89661-3T320 |
US $2,111.20 |
||
| replacement | |||||
|
89661
|
89661
89661-3T321
Computer, Engine Control
[08.1997 - 02.1998] MCV20..CND DENSO; MCV20..USA W(TRACTION CONTROL),DENSO |
89661-3T321 |
— | ||
|
89661
|
89661
89661-3T321
Computer, Engine Control
[02.1998 - 08.1998] MCV20..CND DENSO; MCV20..USA W(TRACTION CONTROL),DENSO |
89661-3T321 |
— | ||
|
89661
|
89661
89661-3T331
Computer, Engine Control
[08.1997 - 02.1998] MCV20..USA CALIFORNIA SPEC,DENSO |
89661-3T331 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-3T333
Computer, Engine Control
[08.1997 - 02.1998] MCV20..USA CALIFORNIA SPEC,DENSO |
89661-3T333 |
— | ||
|
89661
|
89661
89661-3T333
Computer, Engine Control
[02.1998 - 08.1998] MCV20..USA CALIFORNIA SPEC,DENSO |
89661-3T333 |
— | ||
|
89661
|
89661
89661-3T341
Computer, Engine Control
[08.1997 - 02.1998] MCV20..USA CALIFORNIA SPEC & W(TRACTION CONTROL),DENSO |
89661-3T341 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-3T343
Computer, Engine Control
[08.1997 - 02.1998] MCV20..USA CALIFORNIA SPEC & W(TRACTION CONTROL),DENSO |
89661-3T343 |
— | ||
|
89661
|
89661
89661-3T343
Computer, Engine Control
[02.1998 - 08.1998] MCV20..USA CALIFORNIA SPEC & W(TRACTION CONTROL),DENSO |
89661-3T343 |
— | ||
|
89661
|
89661
89661-3T420
Computer, Engine Control
[08.1998 - 10.1998] MCV20 DENSO |
89661-3T420 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-3T424
Computer, Engine Control
[08.1998 - 10.1998] MCV20 DENSO |
89661-3T424 |
— | ||
|
89661
|
89661
89661-3T422
Computer, Engine Control
[10.1998 - 04.1999] MCV20 DENSO |
89661-3T422 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-3T424
Computer, Engine Control
[10.1998 - 04.1999] MCV20 DENSO |
89661-3T424 |
— | ||
|
89661
|
89661
89661-3T423
Computer, Engine Control
[04.1999 - 08.1999] MCV20 DENSO |
89661-3T423 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-3T424
Computer, Engine Control
[04.1999 - 08.1999] MCV20 DENSO |
89661-3T424 |
— | ||
|
89661
|
89661
89666-33120
Computer, Engine Control
[08.1999 - 01.2000] MCV20 DENSO |
89666-33120 |
— | ||
| replacement | |||||
|
89661
|
89661
89666-33122
Computer, Engine Control
[08.1999 - 01.2000] MCV20 DENSO |
89666-33122 |
— | ||
|
89661
|
89661
89666-33121
Computer, Engine Control
[01.2000 - 08.2000] MCV20 DENSO |
89666-33121 |
— | ||
| replacement | |||||
|
89661
|
89661
89666-33122
Computer, Engine Control
[01.2000 - 08.2000] MCV20 DENSO |
89666-33122 |
— | ||
|
89661
|
89661
89666-33221 Computer, Engine ControlENGINE CONTROL [08.2000 -] MCV20 DENSO |
89666-33221 |
US $2,242.24 |
||
|
89667
|
89667
89667-06060
Bracket, Engine Control Computer
[08.1997 - 08.1998] MCV20..CND (L); MCV20..USA CALIFORNIA SPEC OR W(TRACTION CONTROL),(L) |
89667-06060 |
— | ||
|
89667
|
89667
89667-0W010
Bracket, Engine Control Computer
[08.1996 - 08.1997] MCV20 (L) |
89667-0W010 |
— | ||
|
89667
|
89667
89667-0W030
Bracket, Engine Control Computer
[08.1998 -] MCV20 (L) |
89667-0W030 |
— | ||
|
89667
|
89667
89667-33070 Bracket, Engine Control Computer[08.1997 -] MCV20..USA BRAZIL SPEC,(J) |
89667-33070 |
US $12.23 |
||
|
89667
|
89667
89667-33080 Bracket, Engine Control Computer[08.1996 - 12.1996] MCV20 (J) |
89667-33080 |
US $12.23 |
||
|
89667
|
89667
89667-33100 Bracket, Engine Control Computer[08.1998 -] MCV20 (J) |
89667-33100 |
US $10.19 |
||
|
89668
|
89668
89668-06060
Bracket, Engine Control Computer, No.2
[08.1997 - 08.1998] MCV20..CND (L); MCV20..USA CALIFORNIA SPEC OR W(TRACTION CONTROL),(L) |
89668-06060 |
— | ||
|
89668
|
89668
89668-0W010
Bracket, Engine Control Computer, No.2
[08.1996 - 08.1997] MCV20 (L) |
89668-0W010 |
— | ||
|
89668
|
89668
89668-0W030
Bracket, Engine Control Computer, No.2
[08.1998 -] MCV20 (L) |
89668-0W030 |
— | ||
|
89668
|
89668
89668-33060 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [08.1997 -] MCV20..USA BRAZIL SPEC,(J) |
89668-33060 |
US $12.23 |
||
|
89668
|
89668
89668-33080 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [08.1996 - 12.1996] MCV20 (J) |
89668-33080 |
US $10.92 |
||
|
89668
|
89668
89668-33130
Bracket, Engine Control Computer, No.2
[08.1998 -] MCV20 (J) |
89668-33130 |
— | ||
|
8271533180
|
8271533180
82715-33180 Bracket,wiring Harness Clamp |
82715-33180 |
US $4.89 |
||
|
9017906218
|
9017906218
90179-06218
New Genuine Part
|
90179-06218 |
— | ||
| replacement | |||||
|
9017906218
|
9017906218
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.90 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.70 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
US $1.76 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
