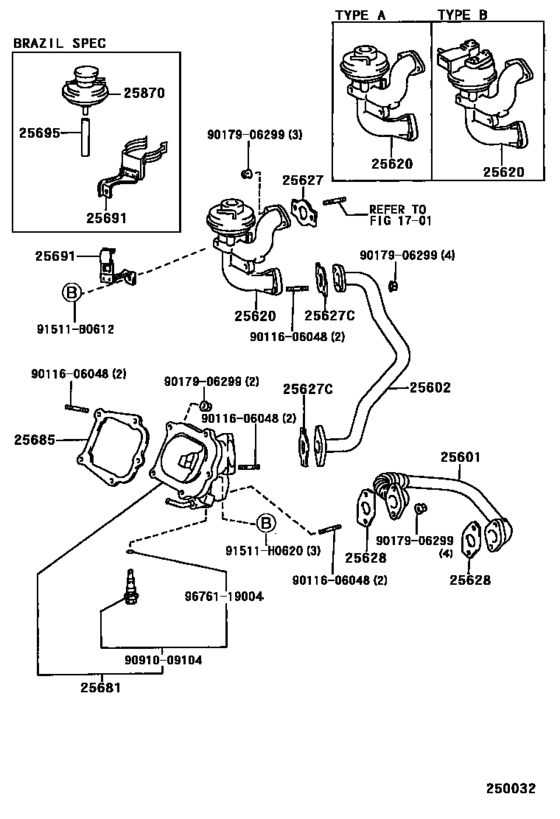

Exhaust Gas Recirculation System ([08.1996 - 08.1998] (9608-9808) ; (9808- )1MZFE..USA) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- U.S.A.
- Frame
- MCV20
- ENGINE
- 1MZFE
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25611-20010 Pipe Sub-Assy, Egr, No.1EGR, NO.1 [08.1996 - 08.1998] 1MZFE..MCV20 |
25611-20010 |
US $88.82 |
||
|
25601
|
25601
25611-20020 Pipe Sub-Assy, Egr, No.1EGR, NO.1 [08.1997 -] 1MZFE..MCV20..USA CALIFORNIA SPEC OR BRAZIL SPEC |
25611-20020 |
US $90.27 |
||
|
25602
|
25602
25612-20010
Pipe Sub-Assy, Egr, No.2
[08.1996 - 08.1998] 1MZFE..MCV20 |
25612-20010 |
— | ||
|
25620
|
25620
25620-20020 Valve Assy, EgrEGR [08.1996 - 08.1998] 1MZFE..MCV20 TYPE B:REFER TO ILLUSTRATION |
25620-20020 |
US $157.44 |
||
|
25620
|
25620
25620-20030 Valve Assy, EgrEGR [08.1997 -] 1MZFE..MCV20..USA TYPE A:REFER TO ILLUSTRATION |
25620-20030 |
US $262.08 |
||
|
25627
|
25627
25627-20010 Gasket, Egr ValveEGR VALVE [08.1996 - 08.1998] 1MZFE..MCV20 |
25627-20010 |
US $1.23 |
||
|
25627C
|
25627C
25627-20010 Gasket, Egr ValveEGR VALVE [08.1996 - 08.1998] 1MZFE..MCV20 |
25627-20010 |
US $1.23 |
||
|
25628
|
25628
25628-20010 Gasket, Egr Inlet[08.1996 - 08.1998] 1MZFE..MCV20 |
25628-20010 |
US $8.74 |
||
|
25681
|
25681
25681-20010
Cooler, Egr, No.1
[08.1996 - 08.1998] 1MZFE..MCV20 |
25681-20010 |
— | ||
|
25685
|
25685
25685-20010 Gasket, E.g.r Cooler[08.1996 - 08.1998] 1MZFE..MCV20 |
25685-20010 |
US $19.04 |
||
|
25691
|
25691
25691-20010 Bracket, Egr Vacuum ModulatorEGR VACUUM MODULATOR [08.1997 -] 1MZFE..MCV20..USA BRAZIL SPEC |
25691-20010 |
US $6.99 |
||
|
25691
|
25691
25691-20030 Bracket, Egr Vacuum ModulatorEGR VACUUM MODULATOR [08.1996 - 08.1998] 1MZFE..MCV20 |
25691-20030 |
US $6.99 |
||
|
25695
|
25695
25695-20010 Hose, Egr Vacuum ModulatorEGR VACUUM MODULATOR [08.1997 -] 1MZFE..MCV20..USA |
25695-20010 |
US $16.89 |
||
|
25870
|
25870
25870-62020
Valve Assy, Egr Vacuum Modulator
[08.1997 -] 1MZFE..MCV20..USA |
25870-62020 |
— | ||
|
91511B0612
|
91511B0612
91511-B0612 BOLT FLANGE |
91511-B0612 |
from US $1.07 |
||
|
91511H0620
|
91511H0620
91511-H0620 Bolt (For Transaxle Case Upper Cover) |
91511-H0620 |
US $1.76 |
||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.72 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9091009104
|
9091009104
90910-09104 Plug, Drain Cock(For Cylinder Block Side Cover ) |
90910-09104 |
US $12.23 |
||
|
9676119004
|
9676119004
96761-19004 Ring, O(For Water Inlet Union Drain Cock Plug) |
96761-19004 |
US $2.72 |
