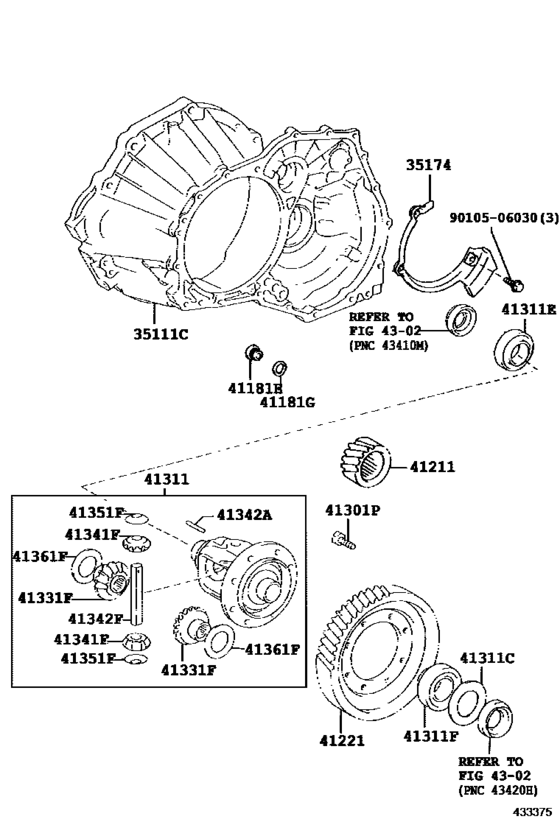

Front Axle Housing & Differential ([08.1998 - ] U140E,TYPE B (9808- )) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- U.S.A.
- Frame
- MCV20
- ENGINE
- 1MZFE
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35111C
|
35111C
35105-48010 Housing, Transaxle[08.1998 -] MCV20 |
35105-48010 |
US $843.02 |
||
| replacements | |||||
|
35111C
|
35111C
35104-28083 Case Sub-Assy, Automatic TransaxleAUTOMATIC TRANSAXLE [08.1998 -] MCV20 |
35104-28083 |
from US $963.87 |
||
|
35111C
|
35111C
35105-28013 Housing, Transaxle[08.1998 -] MCV20 |
35105-28013 |
US $1,270.41 |
||
|
35111C
|
35111C
35105-48060
Cover Sub-assy, Transmission Case Side
[08.1998 -] MCV20 |
35105-48060 |
— | ||
|
35111C
|
35111C
90105-06320
Bolt (For Transaxle Housing & Transaxle Case Setting)
[08.1998 -] MCV20 |
90105-06320 |
— | ||
|
35111C
|
35111C
90301-06008 Ring, O (For Transfer Oil Strainer)[08.1998 -] MCV20 |
90301-06008 |
US $3.14 |
||
|
35111C
|
35111C
90301-10189 Ring, O(For Oil Cooler Tube Union)[08.1998 -] MCV20 |
90301-10189 |
from US $2.72 |
||
|
35174
|
35174
35174-48010 Separator, Transaxle Housing Oil[08.1998 -] MCV20 |
35174-48010 |
US $14.56 |
||
|
41181E
|
41181E
90341-18021 Plug, Filler(Hv)[08.1996 -] MCV20 |
90341-18021 |
from US $2.44 |
||
|
41181G
|
41181G
90430-18008 Gasket[08.1996 -] MCV20 |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
41181G
|
41181G
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1996 -] MCV20 |
90430-T0021 |
US $1.15 |
||
|
41211
|
41211
41211-33040 Pinion, Differential Drive[08.1996 - 08.1998] MCV20 |
41211-33040 |
US $250.87 |
||
|
41211
|
41211
41211-33090 Pinion, Differential Drive[08.1998 -] MCV20 TYPE B:REFER TO ILLUSTRATION |
41211-33090 |
US $99.01 |
||
|
41221
|
41221
41221-33040 Gear, Front Differential Ring[08.1996 - 08.1998] MCV20 |
41221-33040 |
US $315.94 |
||
|
41221
|
41221
41221-33090 Gear, Front Differential Ring[08.1998 -] MCV20 TYPE B:REFER TO ILLUSTRATION |
41221-33090 |
US $198.02 |
||
|
41301P
|
41301P
90105-12303 Bolt (For Front Differential Ring Gear Set)[08.1998 -] MCV20 |
90105-12303 |
US $2.04 |
||
|
41311
|
41311
41301-33020 Case, Front Differential[08.1996 - 08.1998] MCV20 |
41301-33020 |
from US $685.78 |
||
|
41311
|
41311
41301-48010 Case, Front Differential[08.1998 -] MCV20 TYPE B:REFER TO ILLUSTRATION |
41301-48010 |
US $636.27 |
||
| replacement | |||||
|
41311
|
41311
41301-28080 Case, Front Differential[08.1998 -] MCV20 TYPE B:REFER TO ILLUSTRATION |
41301-28080 |
US $634.82 |
||
|
41311C
|
41311C
90564-76001 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.00,MARK 0 |
90564-76001 |
US $4.02 |
||
|
41311C
|
41311C
90564-76002 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.05,MARK 1 |
90564-76002 |
US $4.08 |
||
|
41311C
|
41311C
90564-76003 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.10,MARK 2 |
90564-76003 |
US $4.08 |
||
|
41311C
|
41311C
90564-76004 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.15,MARK 3 |
90564-76004 |
US $4.08 |
||
|
41311C
|
41311C
90564-76005 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.20,MARK 4 |
90564-76005 |
US $5.53 |
||
|
41311C
|
41311C
90564-76006 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.25,MARK 5 |
90564-76006 |
US $5.53 |
||
|
41311C
|
41311C
90564-76007 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.30,MARK 6 |
90564-76007 |
US $5.53 |
||
|
41311C
|
41311C
90564-76008 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.35,MARK 7 |
90564-76008 |
US $5.53 |
||
|
41311C
|
41311C
90564-76009 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.40,MARK 8 |
90564-76009 |
US $5.53 |
||
|
41311C
|
41311C
90564-76010 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.45,MARK 9 |
90564-76010 |
US $5.53 |
||
|
41311C
|
41311C
90564-76011 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.50,MARK A |
90564-76011 |
US $5.53 |
||
|
41311C
|
41311C
90564-76012 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.55,MARK B |
90564-76012 |
US $5.53 |
||
|
41311C
|
41311C
90564-76013 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.60,MARK C |
90564-76013 |
US $5.53 |
||
|
41311C
|
41311C
90564-76014 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.65,MARK D |
90564-76014 |
US $5.53 |
||
|
41311C
|
41311C
90564-76015 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.70,MARK E |
90564-76015 |
US $5.53 |
||
|
41311C
|
41311C
90564-76016 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.75,MARK F |
90564-76016 |
US $5.53 |
||
|
41311C
|
41311C
90564-76017 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.80,MARK G |
90564-76017 |
US $5.53 |
||
|
41311C
|
41311C
90564-76018 Shim(For Differential Case)[08.1996 - 08.1998] MCV20 T=2.85,MARK H |
90564-76018 |
US $5.53 |
||
|
41311C
|
41311C
90564-79001
Shim (For Front Differential Case Rear)
[08.1998 -] MCV20 T=2.00,MARK 0,TYPE B:REFER TO ILLUSTRATION |
90564-79001 |
— | ||
|
41311C
|
41311C
90564-79002 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.05,MARK 1,TYPE B:REFER TO ILLUSTRATION |
90564-79002 |
US $2.77 |
||
|
41311C
|
41311C
90564-79003 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.10,MARK 2,TYPE B:REFER TO ILLUSTRATION |
90564-79003 |
US $2.77 |
||
|
41311C
|
41311C
90564-79004 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.15,MARK 3,TYPE B:REFER TO ILLUSTRATION |
90564-79004 |
US $2.77 |
||
|
41311C
|
41311C
90564-79005 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.20,MARK 4,TYPE B:REFER TO ILLUSTRATION |
90564-79005 |
US $2.77 |
||
|
41311C
|
41311C
90564-79006 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.25,MARK 5,TYPE B:REFER TO ILLUSTRATION |
90564-79006 |
US $2.77 |
||
|
41311C
|
41311C
90564-79007 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.30,MARK 6,TYPE B:REFER TO ILLUSTRATION |
90564-79007 |
US $2.77 |
||
|
41311C
|
41311C
90564-79008 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.35,MARK 7,TYPE B:REFER TO ILLUSTRATION |
90564-79008 |
US $2.77 |
||
|
41311C
|
41311C
90564-79009 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.40,MARK 8,TYPE B:REFER TO ILLUSTRATION |
90564-79009 |
US $2.77 |
||
|
41311C
|
41311C
90564-79010 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.45,MARK 9,TYPE B:REFER TO ILLUSTRATION |
90564-79010 |
US $2.77 |
||
|
41311C
|
41311C
90564-79011 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.50,MARK A,TYPE B:REFER TO ILLUSTRATION |
90564-79011 |
US $2.77 |
||
|
41311C
|
41311C
90564-79012 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.55,MARK B,TYPE B:REFER TO ILLUSTRATION |
90564-79012 |
US $2.77 |
||
|
41311C
|
41311C
90564-79013 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.60,MARK C,TYPE B:REFER TO ILLUSTRATION |
90564-79013 |
US $2.77 |
||
|
41311C
|
41311C
90564-79014 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.65,MARK D,TYPE B:REFER TO ILLUSTRATION |
90564-79014 |
US $2.77 |
||
|
41311C
|
41311C
90564-79015 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.70,MARK E,TYPE B:REFER TO ILLUSTRATION |
90564-79015 |
US $2.77 |
||
|
41311C
|
41311C
90564-79016 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.75,MARK F,TYPE B:REFER TO ILLUSTRATION |
90564-79016 |
US $2.77 |
||
|
41311C
|
41311C
90564-79017 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.80,MARK G,TYPE B:REFER TO ILLUSTRATION |
90564-79017 |
US $2.77 |
||
|
41311C
|
41311C
90564-79018 Shim (For Front Differential Case Rear)[08.1998 -] MCV20 T=2.85,MARK H,TYPE B:REFER TO ILLUSTRATION |
90564-79018 |
US $2.77 |
||
|
41311E
|
41311E
90366-50057
Bearing, Tapered Roller (For Front Differential Case Front)
[08.1998 -] MCV20 TYPE B:REFER TO ILLUSTRATION |
90366-50057 |
— | ||
| replacements | |||||
|
41311E
|
41311E
04419-33010 BEARING KIT, FR[08.1998 -] MCV20 TYPE B:REFER TO ILLUSTRATION |
04419-33010 |
US $100.46 |
||
|
41311E
|
41311E
90366-50106 Bearing, Tapered Roller (For Front Differential Case Front)[08.1998 -] MCV20 TYPE B:REFER TO ILLUSTRATION |
90366-50106 |
from US $26.38 |
||
|
41311E
|
41311E
90366-57026 Bearing, Tapered Roller (For Front Differential Case Front)[08.1996 - 08.1998] MCV20 |
90366-57026 |
US $46.59 |
||
|
41311F
|
41311F
90366-50030 Bearing, Tapered Roller (For Front Differential Case Rear)[08.1996 - 08.1998] MCV20 |
90366-50030 |
US $38.88 |
||
|
41311F
|
41311F
90366-50057
Bearing, Tapered Roller (For Front Differential Case Front)
[08.1998 -] MCV20 TYPE B:REFER TO ILLUSTRATION |
90366-50057 |
— | ||
| replacements | |||||
|
41311F
|
41311F
04419-33010 BEARING KIT, FR[08.1998 -] MCV20 TYPE B:REFER TO ILLUSTRATION |
04419-33010 |
US $100.46 |
||
|
41311F
|
41311F
90366-50106 Bearing, Tapered Roller (For Front Differential Case Front)[08.1998 -] MCV20 TYPE B:REFER TO ILLUSTRATION |
90366-50106 |
from US $26.38 |
||
|
41331F
|
41331F
41331-33010 Gear, Front Differential Side[08.1996 -] MCV20 |
41331-33010 |
US $75.71 |
||
| replacement | |||||
|
41331F
|
41331F
41039-45H00 Gear, Front Differential Side[08.1996 -] MCV20 |
41039-45H00 |
from US $214.03 |
||
|
41341F
|
41341F
41341-24010
Pinion, Rear Differential
[08.1996 - 08.1998] MCV20 |
41341-24010 |
— | ||
|
41341F
|
41341F
41341-48010 Pinion, Front Differential[08.1998 -] MCV20 TYPE B:REFER TO ILLUSTRATION |
41341-48010 |
US $37.56 |
||
| replacement | |||||
|
41341F
|
41341F
41039-45H00 Gear, Front Differential Side[08.1998 -] MCV20 TYPE B:REFER TO ILLUSTRATION |
41039-45H00 |
from US $214.03 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[08.1996 -] MCV20 |
90250-06058 |
from US $1.99 |
||
|
41342F
|
41342F
41342-33010 Shaft, Front Differential Pinion, No.1[08.1996 - 08.1998] MCV20 |
41342-33010 |
US $31.16 |
||
|
41342F
|
41342F
41342-48010 Shaft, Front Differential Pinion, No.1[08.1998 -] MCV20 TYPE B:REFER TO ILLUSTRATION |
41342-48010 |
from US $26.06 |
||
|
41351F
|
41351F
41351-33011 Washer, Front Differential Pinion Thrust[08.1996 -] MCV20 |
41351-33011 |
US $2.91 |
||
|
41361F
|
41361F
41361-33010 Washer, Front Differential Side Gear Thrust, No.1[08.1996 -] MCV20 T=1.625 |
41361-33010 |
from US $4.08 |
||
|
41361F
|
41361F
41362-33080 Washer, Front Differential Side Gear Thrust, No.1[08.1996 -] MCV20 T=1.725 |
41362-33080 |
US $4.22 |
||
|
41361F
|
41361F
41363-33010 Washer, Front Differential Side Gear Thrust, No.1[08.1996 -] MCV20 T=1.825 |
41363-33010 |
US $4.51 |
||
|
9010506030
|
9010506030
90105-06030 New Genuine Part |
90105-06030 |
US $1.60 |
||
| replacement | |||||
|
9010506030
|
9010506030
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.12 |
||
