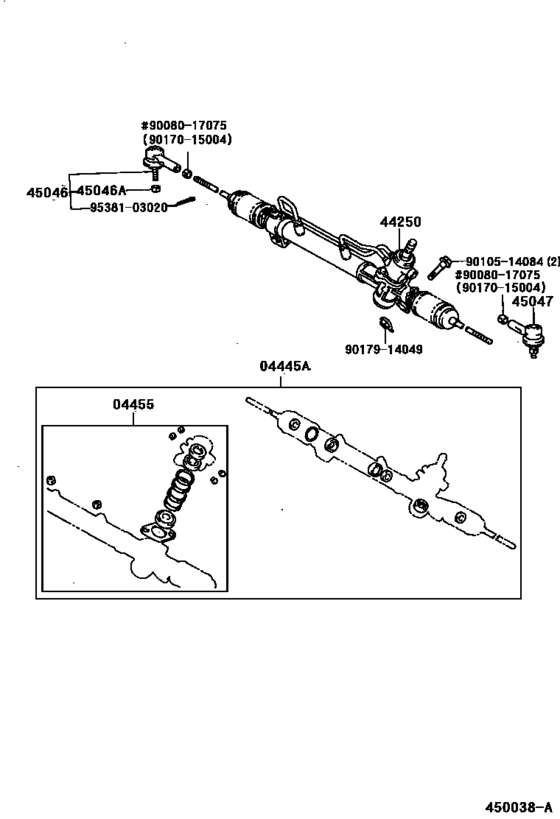

Front Steering Gear & Link ([08.1996 - ] (9608- )) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- U.S.A.
- Frame
- MCV20
- ENGINE
- 1MZFE
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-33050
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[08.1996 - 10.1996] MCV20 |
04445-33050 |
— | ||
| replacement | |||||
|
04445A
|
04445A
04445-33070 Gasket Kit, Power Steering Gear(For Rack & Pinion)[08.1996 - 10.1996] MCV20 |
04445-33070 |
from US $87.36 |
||
|
04445A
|
04445A
04445-33070 Gasket Kit, Power Steering Gear(For Rack & Pinion)[10.1996 - 08.1997] MCV20 |
04445-33070 |
from US $87.36 |
||
|
04445A
|
04445A
04445-33080 Gasket Kit, Power Steering Gear(For Rack & Pinion)[08.1997 -] MCV20 |
04445-33080 |
from US $87.36 |
||
|
04455
|
04455
04455-33020
Gasket Kit, Power Steering Control Valve Overhole
[08.1996 -] MCV20 |
04455-33020 |
— | ||
|
44250
|
44250
44250-06120
Gear Assy, Power Steering(For Rack & Pinion)
[08.1996 - 08.1997] MCV20 (L) |
44250-06120 |
— | ||
| replacement | |||||
|
44250
|
44250
44250-07062
Gear Assy, Power Steering(For Rack & Pinion)
[08.1996 - 08.1997] MCV20 (L) |
44250-07062 |
— | ||
|
44250
|
44250
44250-33160
Gear Assy, Power Steering(For Rack & Pinion)
[08.1996 - 08.1997] MCV20 (J) |
44250-33160 |
— | ||
| replacement | |||||
|
44250
|
44250
44250-33260
Gear Assy, Power Steering(For Rack & Pinion)
[08.1996 - 08.1997] MCV20 (J) |
44250-33260 |
— | ||
|
44250
|
44250
44250-33260
Gear Assy, Power Steering(For Rack & Pinion)
[08.1997 -] MCV20 |
44250-33260 |
— | ||
|
45046
|
45046
45046-09020
End Sub-Assy, Tie Rod, Rh
[08.1996 - 08.1997] MCV20 (L) |
45046-09020 |
— | ||
|
45046
|
45046
45046-29255 End Sub-Assy, Tie Rod[08.1996 - 08.1997] MCV20 (J) |
45046-29255 |
from US $44.48 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.1996 -] MCV20 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-09020
End Sub-Assy, Tie Rod, Rh
[08.1996 - 08.1997] MCV20 (L) |
45046-09020 |
— | ||
|
45047
|
45047
45046-29255 End Sub-Assy, Tie Rod[08.1996 - 08.1997] MCV20 (J) |
45046-29255 |
from US $44.48 |
||
|
9008017075
|
9008017075
90080-17075 New Genuine Part |
90080-17075 |
US $2.33 |
||
|
9010514084
|
9010514084
90105-14084 Bolt(For Front Suspension Lower Arm) |
90105-14084 |
US $6.60 |
||
|
9017015004
|
9017015004
90170-15004 Nut, Rack End Lock |
90170-15004 |
US $2.56 |
||
|
9017914049
|
9017914049
90179-14049 New Genuine Part |
90179-14049 |
US $2.91 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
