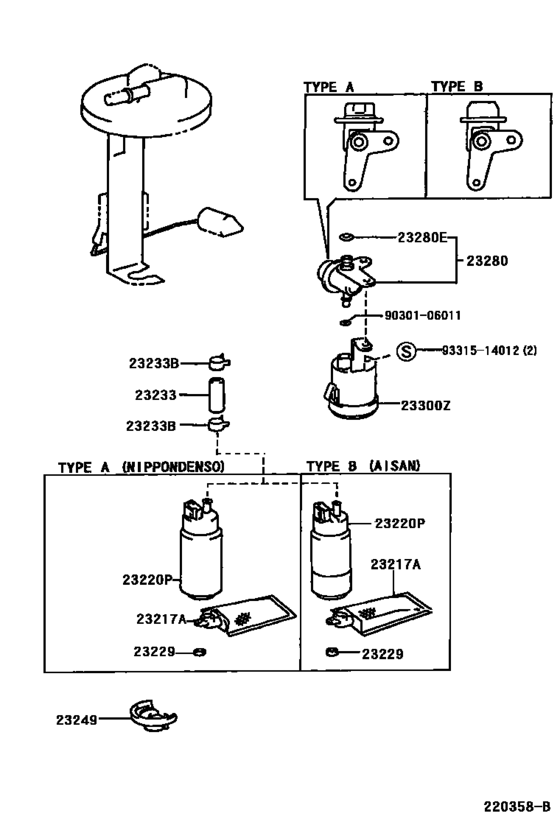

Fuel Injection System ([08.1996 - ] (9608- )) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- U.S.A.
- Frame
- MCV20
- ENGINE
- 1MZFE
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23217A
|
23217A
23217-03030
Filter, Fuel Pump
[08.1996 -] 1MZFE..MCV20 TYPE A:REFER TO ILLUSTRATION |
23217-03030 |
— | ||
| replacement | |||||
|
23217A
|
23217A
23217-0F010 Filter, Fuel Pump[08.1996 -] 1MZFE..MCV20 TYPE A:REFER TO ILLUSTRATION |
23217-0F010 |
from US $8.83 |
||
|
23217A
|
23217A
23217-74021 Filter, Fuel Pump[08.1997 -] 1MZFE..MCV20..USA TYPE B:REFER TO ILLUSTRATION |
23217-74021 |
from US $10.22 |
||
|
23220P
|
23220P
23221-03030
Pump Assy, Fuel
[08.1996 - 08.1998] 1MZFE..MCV20 TYPE A:REFER TO ILLUSTRATION |
23221-03030 |
— | ||
|
23220P
|
23220P
23221-07010
Pump Assy, Fuel
[08.1998 -] 1MZFE..MCV20 TYPE A:REFER TO ILLUSTRATION |
23221-07010 |
— | ||
|
23220P
|
23220P
23221-15040 Pump Assy, Fuel[08.1998 -] 1MZFE..MCV20..USA TYPE B:REFER TO ILLUSTRATION |
23221-15040 |
US $525.91 |
||
|
23220P
|
23220P
23221-16490
Pump Assy, Fuel
[08.1997 - 08.1998] 1MZFE..MCV20..USA TYPE B:REFER TO ILLUSTRATION |
23221-16490 |
— | ||
| replacement | |||||
|
23220P
|
23220P
23221-28280 Pump Assy, Fuel (without filter)[08.1997 - 08.1998] 1MZFE..MCV20..USA TYPE B:REFER TO ILLUSTRATION |
23221-28280 |
from US $370.52 |
||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[08.1996 -] 1MZFE..MCV20 TYPE A:REFER TO ILLUSTRATION |
23219-03010 |
US $2.55 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[08.1997 -] 1MZFE..MCV20..USA TYPE B:REFER TO ILLUSTRATION |
23229-16010 |
from US $0.88 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[08.1997 -] 1MZFE..MCV20..USA TYPE B:REFER TO ILLUSTRATION |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23239-74010
Hose, Fuel Pump
[08.1996 -] 1MZFE..MCV20 |
23239-74010 |
— | ||
|
23233B
|
23233B
90467-12067 Clip(For Fuel Pump Hose)[08.1996 -] 1MZFE..MCV20 |
90467-12067 |
from US $1.27 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[08.1996 -] 1MZFE..MCV20 |
23249-74610 |
from US $8.56 |
||
|
23280
|
23280
23280-74170 Regulator Assy, Fuel Pressure[08.1996 -] 1MZFE..MCV20 TYPE A:REFER TO ILLUSTRATION |
23280-74170 |
US $123.29 |
||
|
23280
|
23280
23280-74190 Regulator Assy, Fuel Pressure[08.1997 -] 1MZFE..MCV20..USA TYPE B:REFER TO ILLUSTRATION |
23280-74190 |
US $127.55 |
||
|
23280E
|
23280E
90301-07020 Ring, O(For Fuel Pressure Regulator)[08.1996 -] 1MZFE..MCV20 |
90301-07020 |
from US $2.69 |
||
|
23300Z
|
23300Z
23300-74280 Filter, Fuel(For Fuel Tank)[08.1996 -] 1MZFE..MCV20 |
23300-74280 |
US $59.06 |
||
|
9030106011
|
9030106011
90301-06011 Ring, O(For Fuel Pressure Regulator) |
90301-06011 |
US $3.14 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
