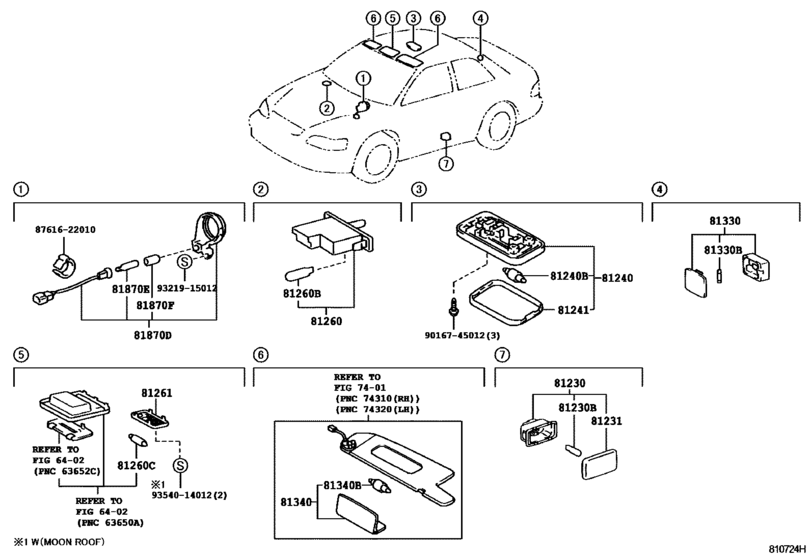

Interior Lamp ([08.1996 - ] (9608- )) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- U.S.A.
- Frame
- MCV20
- ENGINE
- 1MZFE
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81230
|
81230
81230-30140 Lamp Assy, Courtesy[08.1996 -] MCV20 |
81230-30140 |
from US $14.53 |
||
|
81230B
|
81230B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.1996 -] MCV20 12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81231
|
81231
81231-50010 Lens, Courtesy Lamp[08.1996 -] MCV20 |
81231-50010 |
from US $6.08 |
||
|
81240
|
81240
81240-32031-A1 Lamp Assy, Room, No.1[08.1996 - 07.2001] MCV20 IVORY,TRIM0# |
81240-32031-A1 |
US $45.43 |
||
| replacement | |||||
|
81240
|
81240
81240-32031-B6 Lamp Assy, Room, No.1[08.1996 - 07.2001] MCV20 IVORY,TRIM0# |
81240-32031-B6 |
US $44.20 |
||
|
81240
|
81240
81240-32031-B3 Lamp Assy, Room, No.1[08.1996 - 07.2001] MCV20 BLUE GRAY,TRIM2# |
81240-32031-B3 |
US $45.43 |
||
| replacement | |||||
|
81240
|
81240
81240-32031-B6 Lamp Assy, Room, No.1[08.1996 - 07.2001] MCV20 BLUE GRAY,TRIM2# |
81240-32031-B6 |
US $44.20 |
||
|
81240
|
81240
81240-32031-G1 Lamp Assy, Room, No.1[08.1996 - 07.2001] MCV20 SAGE,TRIM6# |
81240-32031-G1 |
US $45.43 |
||
| replacement | |||||
|
81240
|
81240
81240-32031-B6 Lamp Assy, Room, No.1[08.1996 - 07.2001] MCV20 SAGE,TRIM6# |
81240-32031-B6 |
US $44.20 |
||
|
81240B
|
81240B
90981-14004 Bulb, Room Lamp, No.1[08.1996 -] MCV20 12V 8W |
90981-14004 |
from US $2.03 |
||
|
81241
|
81241
81241-32031
Lens, Room Lamp, No.1
[08.1996 -] MCV20 |
81241-32031 |
— | ||
|
81260
|
81260
81260-33010 Lamp Assy, Glove Box[08.1996 -] MCV20 |
81260-33010 |
from US $12.58 |
||
|
81260B
|
81260B
90981-11018 Bulb, Position Indicator Lamp[08.1996 -] MCV20 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
81260C
|
81260C
90084-98049 Bulb, Roof Console Box[08.1996 -] MCV20 12V 8W |
90084-98049 |
US $5.24 |
||
|
81261
|
81261
81231-0W010 Lens, Courtesy[08.1996 - 03.1998] MCV20 |
81231-0W010 |
US $9.03 |
||
|
81261
|
81261
81231-AA010 Lens, Courtesy[08.1996 -] MCV20 W(MOON ROOF) |
81231-AA010 |
US $18.58 |
||
|
81330
|
81330
81330-33010 Lamp Assy, Luggage Compartment, No.1[08.1996 -] MCV20 |
81330-33010 |
from US $20.79 |
||
|
81330B
|
81330B
90981-14009 Bulb, Luggage Compartment Lamp[08.1996 -] MCV20 12V 3W |
90981-14009 |
from US $1.22 |
||
|
81340
|
81340
81340-33090-A0 Lamp Assy, Vanity[08.1996 - 08.1999] MCV20 IVORY,TRIM0#,LH |
81340-33090-A0 |
US $110.66 |
||
|
81340
|
81340
81340-33090-B1 Lamp Assy, Vanity[08.1996 - 08.1999] MCV20 BLUE GRAY,TRIM2#,LH |
81340-33090-B1 |
US $113.57 |
||
|
81340
|
81340
81340-33090-G0 Lamp Assy, Vanity[08.1996 - 08.1999] MCV20 SAGE,TRIM6#,LH |
81340-33090-G0 |
US $113.57 |
||
|
81340
|
81340
81340-33130-A0 Lamp Assy, VanityVANITY [08.1999 - 07.2001] MCV20 IVORY,TRIM0#,LH |
81340-33130-A0 |
US $113.57 |
||
|
81340
|
81340
81340-33130-B1 Lamp Assy, VanityVANITY [08.1999 - 07.2001] MCV20 BLUE GRAY,TRIM2#,LH |
81340-33130-B1 |
US $113.57 |
||
|
81340
|
81340
81340-33130-G0 Lamp Assy, VanityVANITY [08.1999 - 07.2001] MCV20 SAGE,TRIM6#,LH |
81340-33130-G0 |
US $113.57 |
||
|
81340
|
81340
81350-33040-A0 Lamp Assy, Vanity[08.1996 - 08.1999] MCV20 IVORY,TRIM0#,RH |
81350-33040-A0 |
US $69.45 |
||
|
81340
|
81340
81350-33040-B1 Lamp Assy, Vanity[08.1996 - 08.1999] MCV20 BLUE GRAY,TRIM2#,RH |
81350-33040-B1 |
US $113.57 |
||
|
81340
|
81340
81350-33040-G0 Lamp Assy, Vanity[08.1996 - 08.1999] MCV20 SAGE,TRIM6#,RH |
81350-33040-G0 |
US $113.57 |
||
|
81340
|
81340
81350-33050-A0 Lamp Assy, VanityVANITY [08.1999 - 07.2001] MCV20 IVORY,TRIM0#,RH |
81350-33050-A0 |
US $113.57 |
||
|
81340
|
81340
81350-33050-B1 Lamp Assy, VanityVANITY [08.1999 - 07.2001] MCV20 BLUE GRAY,TRIM2#,RH |
81350-33050-B1 |
US $113.57 |
||
|
81340
|
81340
81350-33050-G0 Lamp Assy, VanityVANITY [08.1999 - 07.2001] MCV20 SAGE,TRIM6#,RH |
81350-33050-G0 |
US $113.57 |
||
|
81340B
|
81340B
90084-98013 Bulb (For Vanity Lamp)[08.1998 -] MCV20 W(GARAGE DOOR OPENER) |
90084-98013 |
US $12.81 |
||
|
81340B
|
81340B
90981-14003 Bulb (For Vanity Lamp)[08.1996 -] MCV20 12V 1.5W |
90981-14003 |
US $0.96 |
||
|
81870D
|
81870D
81870-33030
Lamp Assy, Key Cylinder
[08.1996 - 08.1997] MCV20 |
81870-33030 |
— | ||
|
81870D
|
81870D
81870-33050 Lamp Assy, Key Cylinder[08.1997 - 08.1999] MCV20 |
81870-33050 |
US $62.32 |
||
| replacement | |||||
|
81870D
|
81870D
81870-33030
Lamp Assy, Key Cylinder
[08.1997 - 08.1999] MCV20 |
81870-33030 |
— | ||
|
81870D
|
81870D
81870-41020
Lamp Assy, Key Cylinder
[08.1999 -] MCV20 |
81870-41020 |
— | ||
|
81870E
|
81870E
90981-11014 Bulb, Position Indicator Lamp[08.1996 -] MCV20 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
81870F
|
81870F
84998-10070 Cap, Key Cylinder Lamp Bulb[08.1996 -] MCV20 |
84998-10070 |
US $3.84 |
||
|
8761622010
|
8761622010
87616-22010 Clamp, Cooling Unit Case |
87616-22010 |
US $6.99 |
||
|
9016745012
|
9016745012
90167-45012 New Genuine Part |
90167-45012 |
US $1.60 |
||
| replacement | |||||
|
9016745012
|
9016745012
90167-45015 New Genuine Part |
90167-45015 |
US $1.46 |
||
|
9321915012
|
9321915012
93219-15012 New Genuine Part |
93219-15012 |
US $2.72 |
||
|
9354014012
|
9354014012
93540-14012 Screw |
93540-14012 |
from US $1.92 |
||
