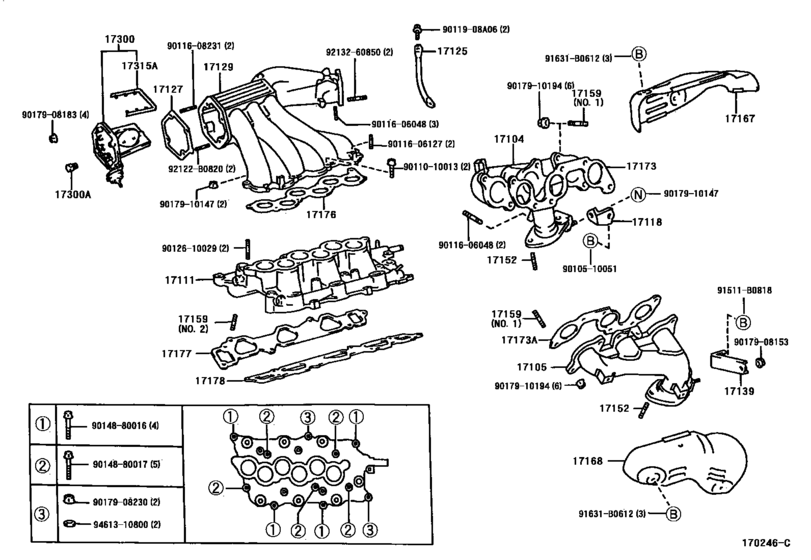

Manifold ([08.1997 - ] BRAZIL SPEC & W/0(VVT) (9708- )) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- U.S.A.
- Frame
- MCV20
- ENGINE
- 1MZFE
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17104
|
17104
17104-20010 Manifold Sub-Assy, Exhaust, Rh[08.1997 - 04.2000] 1MZFE..MCV20..USA CALIFORNIA SPEC |
17104-20010 |
US $426.61 |
||
|
17104
|
17104
17104-20030 Manifold Sub-Assy, Exhaust, Rh[04.2000 -] 1MZFE..MCV20 |
17104-20030 |
US $414.09 |
||
|
17104
|
17104
17140-20010
Manifold Sub-Assy, Exhaust, Rh
[08.1996 - 08.1998] 1MZFE..MCV20 |
17140-20010 |
— | ||
|
17104
|
17104
17141-20050 Manifold Sub-Assy, Exhaust, RhEXHAUST, RH [08.1997 -] 1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
17141-20050 |
US $292.66 |
||
|
17105
|
17105
17142-20050 Manifold Sub-Assy, Exhaust, LhEXHAUST, LH [08.1997 -] 1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
17142-20050 |
US $292.66 |
||
|
17105
|
17105
17150-20010
Manifold Sub-Assy, Exhaust, Lh
[08.1996 - 08.1998] 1MZFE..MCV20 |
17150-20010 |
— | ||
|
17111
|
17111
17101-20010 Manifold, Intake[08.1996 - 08.1998] 1MZFE..MCV20 |
17101-20010 |
US $441.17 |
||
|
17111
|
17111
17101-20030 Manifold, Intake[08.1998 - 07.2000] 1MZFE..MCV20 |
17101-20030 |
US $436.80 |
||
| replacement | |||||
|
17111
|
17111
17101-20031 Manifold, Intake[08.1998 - 07.2000] 1MZFE..MCV20 |
17101-20031 |
US $436.80 |
||
|
17111
|
17111
17101-20031 Manifold, Intake[07.2000 -] 1MZFE..MCV20 |
17101-20031 |
US $436.80 |
||
|
17118
|
17118
17118-20010 Stay, ManifoldMANIFOLD [08.1996 - 08.1998] 1MZFE..MCV20 |
17118-20010 |
US $13.69 |
||
|
17118
|
17118
17118-20020 Stay, Manifold[08.1997 - 08.1998] 1MZFE..MCV20..USA CALIFORNIA SPEC OR BRAZIL SPEC |
17118-20020 |
US $11.21 |
||
|
17125
|
17125
17125-20010
Stay, Surge Tank, No.1
[08.1996 - 08.1998] 1MZFE..MCV20 |
17125-20010 |
— | ||
|
17127
|
17127
17127-62030 Gasket, Surge Tank Cover[08.1996 -] 1MZFE..MCV20 |
17127-62030 |
from US $5.50 |
||
|
17129
|
17129
17109-20040 Tank, Intake Air SurgeINTAKE AIR SURGE [08.1996 - 08.1998] 1MZFE..MCV20 |
17109-20040 |
US $1,306.03 |
||
| replacement | |||||
|
17129
|
17129
17109-20090 Tank, Intake Air SurgeINTAKE AIR SURGE [08.1996 - 08.1998] 1MZFE..MCV20 |
17109-20090 |
US $706.16 |
||
|
17129
|
17129
17109-20050 Tank, Intake Air SurgeINTAKE AIR SURGE [08.1997 -] 1MZFE..MCV20..USA BRAZIL SPEC & W/O(VVT) |
17109-20050 |
US $723.63 |
||
|
17129
|
17129
17109-20070 Tank, Intake Air Surge[08.1998 - 07.2000] 1MZFE..MCV20 |
17109-20070 |
US $607.15 |
||
| replacement | |||||
|
17129
|
17129
17109-20081 Tank, Intake Air Surge[08.1998 - 07.2000] 1MZFE..MCV20 |
17109-20081 |
US $608.61 |
||
|
17129
|
17129
17109-20071 Tank, Intake Air Surge[07.2000 -] 1MZFE..MCV20 |
17109-20071 |
US $608.61 |
||
| replacement | |||||
|
17129
|
17129
17109-20081 Tank, Intake Air Surge[07.2000 -] 1MZFE..MCV20 |
17109-20081 |
US $608.61 |
||
|
17139
|
17139
17139-20010 Stay, Manifold, No.2[08.1996 - 08.1998] 1MZFE..MCV20 |
17139-20010 |
US $16.89 |
||
|
17139
|
17139
17139-20020 Stay, Manifold, No.2[08.1997 - 08.1998] 1MZFE..MCV20..USA CALIFORNIA SPEC |
17139-20020 |
US $11.07 |
||
|
17152
|
17152
90116-10149 Bolt, Stud(For Manifold To Exhaust Pipe)[08.1996 - 08.1998] 1MZFE..MCV20 |
90116-10149 |
from US $2.01 |
||
|
17159
|
17159
90116-10169 Bolt, Stud(For Manifold To Cylinder Head)used for exhaust manifold [08.1996 - 07.2001] 1MZFE..MCV20 NO.1 |
90116-10169 |
from US $1.54 |
||
|
17159
|
17159
90126-08013 Bolt, Stud(For Manifold To Cylinder Head)[08.1996 -] 1MZFE..MCV20 NO.2 |
90126-08013 |
US $5.42 |
||
|
17167
|
17167
17167-20050
Insulator, Exhaust Manifold Heat, No.1
[08.1997 -] 1MZFE..MCV20..USA |
17167-20050 |
— | ||
|
17168
|
17168
17168-20050 Insulator, Exhaust Manifold Heat, No.2EXHAUST MANIFOLD HEAT, NO.2 [08.1997 -] 1MZFE..MCV20..USA |
17168-20050 |
US $60.13 |
||
|
17173
|
17173
17173-20010 Gasket, Exhaust Manifold To Head[08.1996 -] 1MZFE..MCV20 |
17173-20010 |
from US $21.35 |
||
|
17173A
|
17173A
17173-20010 Gasket, Exhaust Manifold To Head[08.1996 -] 1MZFE..MCV20 |
17173-20010 |
from US $21.35 |
||
|
17176
|
17176
17176-62030 Gasket, Air Surge Tank To Intake Manifold[08.1996 -] 1MZFE..MCV20 |
17176-62030 |
from US $8.85 |
||
|
17177
|
17177
17177-20010 Gasket, Intake Manifold To Head, No.1[08.1996 - 10.1997] 1MZFE..MCV20 |
17177-20010 |
US $34.51 |
||
| replacement | |||||
|
17177
|
17177
17177-20020 Gasket, Intake Manifold To Head, No.1[08.1996 - 10.1997] 1MZFE..MCV20 |
17177-20020 |
from US $27.59 |
||
|
17177
|
17177
17177-20020 Gasket, Intake Manifold To Head, No.1[10.1997 -] 1MZFE..MCV20 |
17177-20020 |
from US $27.59 |
||
|
17178
|
17178
17178-20010 Gasket, Intake Manifold To Head, No.2[08.1996 - 10.1997] 1MZFE..MCV20 |
17178-20010 |
US $33.49 |
||
| replacement | |||||
|
17178
|
17178
17178-20020 Gasket, Intake Manifold To Head, No.2[08.1996 - 10.1997] 1MZFE..MCV20 |
17178-20020 |
from US $29.50 |
||
|
17178
|
17178
17178-20020 Gasket, Intake Manifold To Head, No.2[10.1997 -] 1MZFE..MCV20 |
17178-20020 |
from US $29.50 |
||
|
17300
|
17300
17300-20020 Valve Assy, Intake Air Control[08.1996 -] 1MZFE..MCV20 |
17300-20020 |
US $416.42 |
||
|
17300A
|
17300A
90345-51006 Plug, W/head Taper Screw, No.2[08.1996 -] 1MZFE..MCV20 |
90345-51006 |
US $0.96 |
||
|
17315A
|
17315A
17315-62020 Gasket, Intake Air Control Valve[08.1996 -] 1MZFE..MCV20 |
17315-62020 |
from US $4.33 |
||
|
91511B0818
|
91511B0818
91511-B0818 BOLT FLANGE |
91511-B0818 |
US $2.24 |
||
|
91631B0612
|
91631B0612
91631-B0612
BRACKET
|
91631-B0612 |
— | ||
| replacement | |||||
|
91631B0612
|
91631B0612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
92122B0820
|
92122B0820
92122-B0820 Bolt, Stud(For Water Outlet) |
92122-B0820 |
US $1.22 |
||
|
9011908A06
|
9011908A06
90119-08A06 BOLT WWASHER |
90119-08A06 |
US $2.08 |
||
|
9010510051
|
9010510051
90105-10051
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
|
90105-10051 |
— | ||
| replacement | |||||
|
9010510051
|
9010510051
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.56 |
||
|
9011010013
|
9011010013
90110-10013 BOLT HEXAGON SOCKET |
90110-10013 |
US $2.62 |
||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.72 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9011608231
|
9011608231
90116-08231 New Genuine Part |
90116-08231 |
US $3.20 |
||
|
9012610029
|
9012610029
90126-10029 New Genuine Part |
90126-10029 |
US $2.18 |
||
|
9014880016
|
9014880016
90148-80016 New Genuine Part |
90148-80016 |
US $9.17 |
||
|
9014880017
|
9014880017
90148-80017 New Genuine Part |
90148-80017 |
US $1.49 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017908183
|
9017908183
90179-08183 NUT |
90179-08183 |
from US $2.56 |
||
|
9017908230
|
9017908230
90179-08230 New Genuine Part |
90179-08230 |
US $2.08 |
||
|
9017910147
|
9017910147
90179-10147 New Genuine Part |
90179-10147 |
US $2.33 |
||
|
9017910194
|
9017910194
90179-10194 NUT |
90179-10194 |
US $5.76 |
||
|
9213260850
|
9213260850
92132-60850
Bolt, Stud(For Manifold To Cylinder Head)
|
92132-60850 |
— | ||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
