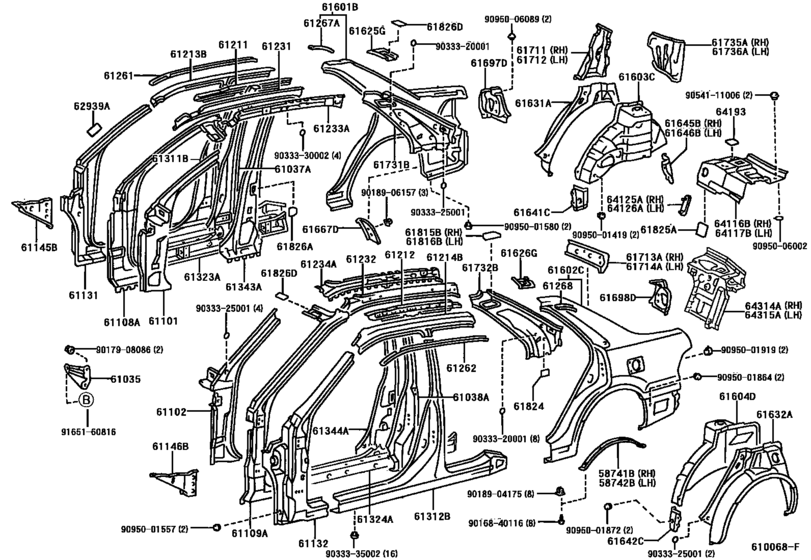

Side Member ([08.1996 - ] (9608- )) Diagram Toyota LEXUS ES
- Year
- 1996 - 2001
- Sales region
- U.S.A.
- Frame
- MCV20
- ENGINE
- 1MZFE
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1996
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58741B
|
58741B
58741-33020 Protector, Quarter Panel, Rh[08.1996 -] MCV20 |
58741-33020 |
from US $56.64 |
||
|
58742B
|
58742B
58742-33020 Protector, Quarter Panel, Lh[08.1996 -] MCV20 |
58742-33020 |
from US $56.64 |
||
|
61035
|
61035
61165-33020 Bracket Sub-Assy, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [08.1996 -] MCV20 |
61165-33020 |
US $30.43 |
||
|
61037A
|
61037A
61037-33110 Reinforcement Sub-Assy, Center Body Pillar, Rh[08.1996 - 08.1997] MCV20 |
61037-33110 |
US $349.44 |
||
| replacement | |||||
|
61037A
|
61037A
61037-33120 Reinforcement Sub-Assy, Center Body Pillar, Rh[08.1996 - 08.1997] MCV20 |
61037-33120 |
US $349.44 |
||
|
61037A
|
61037A
61037-33120 Reinforcement Sub-Assy, Center Body Pillar, Rh[08.1997 - 07.2001] MCV20 |
61037-33120 |
US $349.44 |
||
|
61038A
|
61038A
61038-33110 Reinforcement Sub-Assy, Center Body Pillar, Lh[08.1996 - 08.1997] MCV20 |
61038-33110 |
US $349.44 |
||
| replacement | |||||
|
61038A
|
61038A
61038-33120 Reinforcement Sub-Assy, Center Body Pillar, Lh[08.1996 - 08.1997] MCV20 |
61038-33120 |
US $297.02 |
||
|
61038A
|
61038A
61038-33120 Reinforcement Sub-Assy, Center Body Pillar, Lh[08.1997 - 07.2001] MCV20 |
61038-33120 |
US $297.02 |
||
|
61101
|
61101
61101-33040 Panel Sub-Assy, Cowl Side, Rh[08.1996 - 08.1998] MCV20 |
61101-33040 |
US $133.95 |
||
| replacement | |||||
|
61101
|
61101
61101-33041 Panel Sub-Assy, Cowl Side, Rh[08.1996 - 08.1998] MCV20 |
61101-33041 |
US $133.95 |
||
|
61101
|
61101
61101-33041 Panel Sub-Assy, Cowl Side, Rh[08.1998 -] MCV20 |
61101-33041 |
US $133.95 |
||
|
61102
|
61102
61102-33050 Panel Sub-Assy, Cowl Side, LhCOWL SIDE, LH [08.1996 -] MCV20 |
61102-33050 |
US $125.22 |
||
|
61108A
|
61108A
61108-33905 Reinforce Sub-Assy, Front Body Pillar, Lower Rh[08.1996 - 07.2001] MCV20 |
61108-33905 |
US $208.21 |
||
|
61109A
|
61109A
61109-33905 Reinforce Sub-Assy, Front Body Pillar, Lower Lh[08.1996 - 07.2001] MCV20 |
61109-33905 |
US $208.21 |
||
|
61131
|
61131
61131-33030 Pillar, Front Body, Upper Outer Rh[08.1996 -] MCV20 |
61131-33030 |
US $331.97 |
||
|
61132
|
61132
61132-33030 Pillar, Front Body, Upper Outer Lh[08.1996 -] MCV20 |
61132-33030 |
US $331.97 |
||
|
61145B
|
61145B
61145-33020 Gusset, Front Body Pillar, Lower Rh[08.1996 - 07.2001] MCV20 |
61145-33020 |
US $46.30 |
||
|
61146B
|
61146B
61146-33020 Gusset, Front Body Pillar, Lower Lh[08.1996 - 07.2001] MCV20 |
61146-33020 |
US $46.30 |
||
|
61211
|
61211
61211-33010 Rail, Roof Side, Outer Rh[08.1996 - 07.2001] MCV20 |
61211-33010 |
US $88.82 |
||
|
61212
|
61212
61212-33010 Rail, Roof Side, Outer Lh[08.1996 - 07.2001] MCV20 |
61212-33010 |
US $88.82 |
||
|
61213B
|
61213B
61213-33030 Rail, Roof Side, Outer No.2 Rh[08.1996 -] MCV20 |
61213-33030 |
US $109.20 |
||
|
61214B
|
61214B
61214-33030 Rail, Roof Side, Outer No.2 Lh[08.1996 -] MCV20 |
61214-33030 |
US $109.20 |
||
|
61231
|
61231
61231-33040 Rail, Roof Side, Inner Rh[08.1996 - 08.1998] MCV20 |
61231-33040 |
US $97.55 |
||
| replacement | |||||
|
61231
|
61231
61231-33041 Rail, Roof Side, Inner Rh[08.1996 - 08.1998] MCV20 |
61231-33041 |
US $99.01 |
||
|
61231
|
61231
61231-33041 Rail, Roof Side, Inner Rh[08.1998 -] MCV20 |
61231-33041 |
US $99.01 |
||
|
61232
|
61232
61232-33040 Rail, Roof Side, Inner Lh[08.1996 - 08.1998] MCV20 |
61232-33040 |
US $97.55 |
||
| replacement | |||||
|
61232
|
61232
61232-33041 Rail, Roof Side, Inner Lh[08.1996 - 08.1998] MCV20 |
61232-33041 |
US $99.01 |
||
|
61232
|
61232
61232-33041 Rail, Roof Side, Inner Lh[08.1998 -] MCV20 |
61232-33041 |
US $99.01 |
||
|
61233A
|
61233A
61233-33030 Rail, Roof Side, Inner No.2 Rh[08.1996 - 08.1998] MCV20 |
61233-33030 |
US $75.71 |
||
|
61233A
|
61233A
61233-33031 Rail, Roof Side, Inner No.2 Rh[08.1998 -] MCV20 |
61233-33031 |
US $71.64 |
||
|
61234A
|
61234A
61234-33030 Rail, Roof Side, Inner No.2 Lh[08.1996 - 08.1998] MCV20 |
61234-33030 |
US $72.65 |
||
|
61234A
|
61234A
61234-33031 Rail, Roof Side, Inner No.2 Lh[08.1998 -] MCV20 |
61234-33031 |
US $71.64 |
||
|
61261
|
61261
61261-33020 Channel, Roof Drip, Rh[08.1996 - 07.2001] MCV20 |
61261-33020 |
US $31.60 |
||
|
61262
|
61262
61262-33020 Channel, Roof Drip, Lh[08.1996 - 07.2001] MCV20 |
61262-33020 |
US $31.60 |
||
|
61267A
|
61267A
61267-33030 Channel, Roof Drip Side, Rear Rh[08.1996 -] MCV20 |
61267-33030 |
US $18.20 |
||
|
61268
|
61268
61268-33030 Channel, Roof Drip Side, Rear Lh[08.1996 -] MCV20 |
61268-33030 |
US $18.20 |
||
|
61311B
|
61311B
61311-33020 Pillar, Center Body, Outer Rh[08.1996 -] MCV20 |
61311-33020 |
US $557.65 |
||
|
61312B
|
61312B
61312-33020 Pillar, Center Body, Outer Lh[08.1996 -] MCV20 |
61312-33020 |
US $557.65 |
||
|
61323A
|
61323A
61305-33010 Reinforcement, Center Body Pillar, Lower Rh[08.1996 - 07.2001] MCV20 |
61305-33010 |
US $218.40 |
||
|
61324A
|
61324A
61306-33010 Reinforcement, Center Body Pillar, Lower Lh[08.1996 - 07.2001] MCV20 |
61306-33010 |
US $218.40 |
||
|
61343A
|
61343A
61343-33901 Pillar, Center Body, Inner Rh[08.1996 - 02.1998] MCV20 |
61343-33901 |
US $151.42 |
||
| replacement | |||||
|
61343A
|
61343A
61343-33902 Pillar, Center Body, Inner Rh[08.1996 - 02.1998] MCV20 |
61343-33902 |
US $221.31 |
||
|
61343A
|
61343A
61343-33902 Pillar, Center Body, Inner Rh[02.1998 -] MCV20 |
61343-33902 |
US $221.31 |
||
|
61344A
|
61344A
61344-33901 Pillar, Center Body, Inner Lh[08.1996 - 02.1998] MCV20 |
61344-33901 |
US $151.42 |
||
| replacement | |||||
|
61344A
|
61344A
61344-33902 Pillar, Center Body, Inner Lh[08.1996 - 02.1998] MCV20 |
61344-33902 |
US $221.31 |
||
|
61344A
|
61344A
61344-33902 Pillar, Center Body, Inner Lh[02.1998 -] MCV20 |
61344-33902 |
US $221.31 |
||
|
61601B
|
61601B
61601-33913 Panel Sub-Assy, Quarter, Rh[08.1996 -] MCV20 |
61601-33913 |
US $869.23 |
||
|
61602C
|
61602C
61602-33906 Panel Sub-Assy, Quarter, Lh[08.1996 -] MCV20 |
61602-33906 |
from US $702.49 |
||
|
61603C
|
61603C
61607-33902 Panel Sub-Assy, Quarter Wheel House, Rh[08.1996 -] MCV20 |
61607-33902 |
US $257.71 |
||
|
61604D
|
61604D
61608-33902 Panel Sub-Assy, Quarter Wheel House, Lh[08.1996 -] MCV20 |
61608-33902 |
US $257.71 |
||
|
61625G
|
61625G
61625-33030 Extension, Quarter Panel, Rear Rh[08.1996 -] MCV20 |
61625-33030 |
US $19.36 |
||
|
61626G
|
61626G
61626-33030 Extension, Quarter Panel, Rear Lh[08.1996 -] MCV20 |
61626-33030 |
US $19.36 |
||
|
61631A
|
61631A
61631-33902 Panel, Quarter Wheel House, Outer Rh[08.1996 -] MCV20 |
61631-33902 |
US $206.75 |
||
|
61632A
|
61632A
61632-33902 Panel, Quarter Wheel House, Outer Lh[08.1996 -] MCV20 |
61632-33902 |
US $206.75 |
||
|
61641C
|
61641C
61641-33010 Gusset, Quarter Wheel House, Front Rh[08.1996 -] MCV20 |
61641-33010 |
US $16.60 |
||
|
61642C
|
61642C
61642-33010 Gusset, Quarter Wheel House, Front Lh[08.1996 -] MCV20 |
61642-33010 |
US $16.60 |
||
|
61645B
|
61645B
61645-33010 Gusset, Quarter Wheel House, Rear Rh[08.1996 -] MCV20 |
61645-33010 |
US $19.66 |
||
|
61646B
|
61646B
61646-33010 Gusset, Quarter Wheel House, Rear Lh[08.1996 -] MCV20 |
61646-33010 |
US $19.66 |
||
|
61667D
|
61667D
61667-33040 Seal, Quarter Panel[08.1996 -] MCV20 |
61667-33040 |
US $29.70 |
||
|
61697D
|
61697D
61697-33901 Housing, Quarter Panel End, Rh[08.1996 -] MCV20 |
61697-33901 |
US $69.31 |
||
|
61698D
|
61698D
61698-33901 Housing, Quarter Panel End, Lh[08.1996 -] MCV20 |
61698-33901 |
US $69.31 |
||
|
61711
|
61711
61711-33030 Panel, Roof Side, Outer Rh[08.1996 -] MCV20 |
61711-33030 |
US $75.71 |
||
|
61712
|
61712
61712-33030 Panel, Roof Side, Outer Lh[08.1996 -] MCV20 |
61712-33030 |
US $75.71 |
||
|
61713A
|
61713A
61713-33010 Extension, Roof Side, Outer Rh[08.1996 -] MCV20 |
61713-33010 |
US $31.01 |
||
|
61714A
|
61714A
61714-33010 Extension, Roof Side, Outer Lh[08.1996 -] MCV20 |
61714-33010 |
US $31.01 |
||
|
61731B
|
61731B
61731-33070 Panel, Roof Side, Inner Rh[08.1996 - 08.1998] MCV20 |
61731-33070 |
US $75.71 |
||
| replacement | |||||
|
61731B
|
61731B
61731-33071 Panel, Roof Side, Inner Rh[08.1996 - 08.1998] MCV20 |
61731-33071 |
US $75.71 |
||
|
61731B
|
61731B
61731-33071 Panel, Roof Side, Inner Rh[08.1998 -] MCV20 |
61731-33071 |
US $75.71 |
||
|
61732B
|
61732B
61732-33060 Panel, Roof Side, Inner Lh[08.1996 - 08.1998] MCV20 |
61732-33060 |
US $75.71 |
||
| replacement | |||||
|
61732B
|
61732B
61732-33061 Panel, Roof Side, Inner Lh[08.1996 - 08.1998] MCV20 |
61732-33061 |
US $75.71 |
||
|
61732B
|
61732B
61732-33061 Panel, Roof Side, Inner Lh[08.1998 -] MCV20 |
61732-33061 |
US $75.71 |
||
|
61735A
|
61735A
61735-33020 Panel, Roof Side, Inner Rear Rh[08.1996 -] MCV20 |
61735-33020 |
US $75.71 |
||
|
61736A
|
61736A
61736-33020 Panel, Roof Side, Inner Rear Lh[08.1996 -] MCV20 |
61736-33020 |
US $56.64 |
||
|
61815B
|
61815B
61815-33020 Cover, Roof Side, Inner Upper Rh[08.1996 -] MCV20 |
61815-33020 |
US $33.49 |
||
|
61816B
|
61816B
61816-33020 Cover, Roof Side, Inner Upper Lh[08.1996 -] MCV20 |
61816-33020 |
US $33.49 |
||
|
61824
|
61824
61824-20100 Plate, Noise Control, No.1[08.1996 -] MCV20 |
61824-20100 |
US $2.04 |
||
|
61825A
|
61825A
61824-30030 Plate, Noise Control, No.2[08.1996 -] MCV20 |
61824-30030 |
US $12.38 |
||
|
61826A
|
61826A
61825-12010 Cover, Roof Side, Inner Upper Rh[02.1997 - 08.1999] MCV20 |
61825-12010 |
US $2.04 |
||
|
61826A
|
61826A
61826-33010 Plate, Noise Control, No.2[08.1996 - 02.1997] MCV20 |
61826-33010 |
US $6.99 |
||
| replacement | |||||
|
61826A
|
61826A
61825-12010 Cover, Roof Side, Inner Upper Rh[08.1996 - 02.1997] MCV20 |
61825-12010 |
US $2.04 |
||
|
61826D
|
61826D
61825-12010 Cover, Roof Side, Inner Upper Rh[08.1999 -] MCV20 |
61825-12010 |
US $2.04 |
||
|
62939A
|
62939A
62939-32020 Pad, Cowl Side Silencer[08.1996 - 08.1999] MCV20 |
62939-32020 |
US $6.70 |
||
|
64116B
|
64116B
64116-33040 Reinforcement, Upper Back, Rh[08.1996 -] MCV20 |
64116-33040 |
US $54.60 |
||
|
64117B
|
64117B
64117-33040 Reinforcement, Upper Back, Lh[08.1996 -] MCV20 |
64117-33040 |
US $54.60 |
||
|
64125A
|
64125A
64317-33050 Bracket, Upper Back Panel, Rh[08.1996 -] MCV20 |
64317-33050 |
US $11.94 |
||
|
64126A
|
64126A
64317-33050 Bracket, Upper Back Panel, Rh[08.1996 -] MCV20 |
64317-33050 |
US $11.94 |
||
|
64193
|
64193
64193-33010 Pad, Back Panel Silencer[08.1996 -] MCV20 |
64193-33010 |
US $3.49 |
||
|
64314A
|
64314A
64304-33900 Reinforcement, Package Tray Bracket, Rh[08.1999 -] MCV20 |
64304-33900 |
US $96.10 |
||
|
64315A
|
64315A
64305-33900 Reinforcement, Package Tray Bracket, Lh[08.1999 -] MCV20 |
64305-33900 |
US $96.10 |
||
|
9016840116
|
9016840116
90168-40116 SCREWTAPPING |
90168-40116 |
from US $0.65 |
||
|
9017908086
|
9017908086
90179-08086 New Genuine Part |
90179-08086 |
US $1.60 |
||
|
9018904175
|
9018904175
90189-04175 New Genuine Part |
90189-04175 |
US $1 |
||
|
9018906157
|
9018906157
90189-06157 GROMMET SCREW |
90189-06157 |
from US $0.72 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $0.61 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.16 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $0.83 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $0.96 |
||
|
9054111006
|
9054111006
90541-11006 Cushion, Luggage Door Hinge |
90541-11006 |
US $1.46 |
||
|
9095001419
|
9095001419
90950-01419 New Genuine Part |
90950-01419 |
US $1.38 |
||
|
9095001557
|
9095001557
90950-01557 PLUG |
90950-01557 |
US $1.93 |
||
|
9095001580
|
9095001580
90950-01580 Plug, Hole(For Clutch Under Cover) |
90950-01580 |
US $2.89 |
||
|
9095001864
|
9095001864
90950-01864 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01864 |
US $1.24 |
||
|
9095001872
|
9095001872
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001919
|
9095001919
90950-01919 Cushion, Rear Seat |
90950-01919 |
US $1.24 |
||
|
9095006002
|
9095006002
90950-06002 Cover, Front Floor Hole |
90950-06002 |
US $0.69 |
||
|
9095006089
|
9095006089
90950-06089 Protector, Rear Body, No.1 |
90950-06089 |
US $1.93 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.93 |
||
