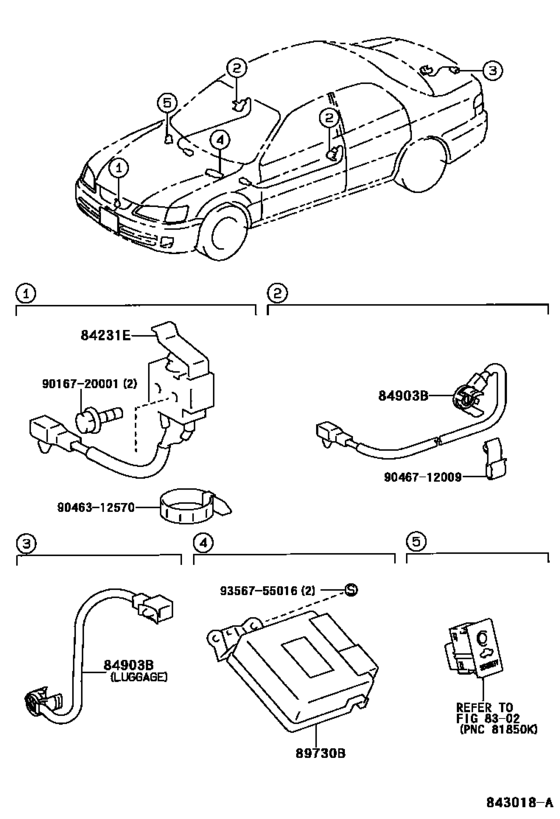

Anti-Theft Device ([08.1996 - ] THEFT WARNING SYSTEM (9608- )) Diagram Toyota LEXUS ES
- Year
- 1998 - 2001
- Sales region
- General
- Frame
- MCV20
- body
- HT
- ENGINE
- 1MZFE
- DESTINATION
- GCC
- Model
- ES300
- From
- 10.1998
- To
- 07.2001
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84231E
|
84231E
84231-24030 Switch Assy, Courtesy Lamp (For Engine Room)[08.1996 -] MCV20 |
84231-24030 |
US $33.20 |
||
|
84903B
|
84903B
84903-33110
Switch Sub-Assy, Door Unlock
[08.1996 -] MCV20 RH |
84903-33110 |
— | ||
|
84903B
|
84903B
84903-33120 Switch Sub-Assy, Door UnlockDOOR UNLOCK [08.1996 -] MCV20 LH |
84903-33120 |
US $62.03 |
||
|
84903B
|
84903B
84903-33130 Switch Sub-Assy, Door UnlockDOOR UNLOCK [08.1996 -] MCV20 LUGGAGE |
84903-33130 |
US $33.49 |
||
|
89730B
|
89730B
89730-33141
Computer Assy, Theft Warning
[10.1998 - 08.1999] MCV20..GCC |
89730-33141 |
— | ||
|
89730B
|
89730B
89730-33142
Computer Assy, Theft Warning
[08.1999 - 08.2000] MCV20..GCC |
89730-33142 |
— | ||
| replacement | |||||
|
89730B
|
89730B
89730-33143
Computer Assy, Theft Warning
[08.1999 - 08.2000] MCV20..GCC |
89730-33143 |
— | ||
|
89730B
|
89730B
89730-33143
Computer Assy, Theft Warning
[08.2000 -] MCV20..GCC |
89730-33143 |
— | ||
|
9016720001
|
9016720001
90167-20001 New Genuine Part |
90167-20001 |
US $0.87 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.20 |
||
|
9046712009
|
9046712009
90467-12009 Clamp, No.1(For Luggage Door Lock Control Cable) |
90467-12009 |
from US $3.28 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
